high efficiency hybrid inverter

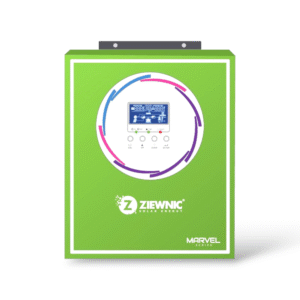

Ziewnic Axpert Ultra 8KW (PV10000) Inverter Features

• Dual AC Power Sources – Auto Switching
  Seamlessly connects and switches between two independent AC sources (such as grid and generator) for uninterrupted power supply.

• High Charging Capacity: 150 A
  Supports robust solar and AC charging with up to 150A, ensuring efficient battery recharging.

• USB On-the-Go (OTG) Function
  Enables easy data transfer and firmware updates via USB.

• Versatile BMS Integration
  Equipped with RS485, CAN-bus, or RS232 ports for smooth communication with Battery Management Systems.

• Built-In Feed-in Grid Capability
  Supports feeding excess energy back into the grid when regulations allow.

• User Interface: 2.8″ Color LCD with Slide Operation
  Intuitive control and monitoring using a sharp, responsive display.

• Power Status Lighting Indicators
  Visual LED indicators show system status at a glance.

• Battery Temperature Sensor (BTS) Support
  Adds additional safety by monitoring and optimizing battery performance.

• Wi-Fi with App & OTA Updates
  Mobile monitoring and firmware updates via Wi-Fi and dedicated app enhance usability.

• Generator / Grid Adaptive Design
  Automatically adjusts to different AC input voltages for reliable performance.

• Anti-Dust & Humidity Protection
  Conformal coating enhances durability in challenging environments.

• Dual AC Outputs for Smart Load Management
  Enables prioritization of essential vs. non-essential loads to maximize efficiency.

• Lithium Battery Compatibility
  Safely integrates with all types of lithium batteries.

• Comprehensive Safety Features
  Built-in overload and short-circuit protection, plus optional GFCI, Rapid Shutdown, and AFCI setups.

• Battery Equalization Function
  Enhances battery lifespan by balancing cell voltage and performance.

• Parallel Operation
  Scalable – up to six units can be operated in parallel for larger systems.

• Technical Specs Highlights:

  • Rated Power: 8,000 VA / 8,000 W

  • Surge Power: 16,000 VA

  • Peak Efficiency: ~93%

  • Transfer Times: 10 ms (PC mode), 20 ms (Home appliance mode)

  • Battery Voltage: 48 VDC, with floating charge at 54 VDC and overcharge protection at 63 VDC

  • PV Input: Up to 10,000 W (2 × 5,000 W) MPPT, voltage range 90–450 VDC (VOC up to 500 VDC), current 27 A × 2
