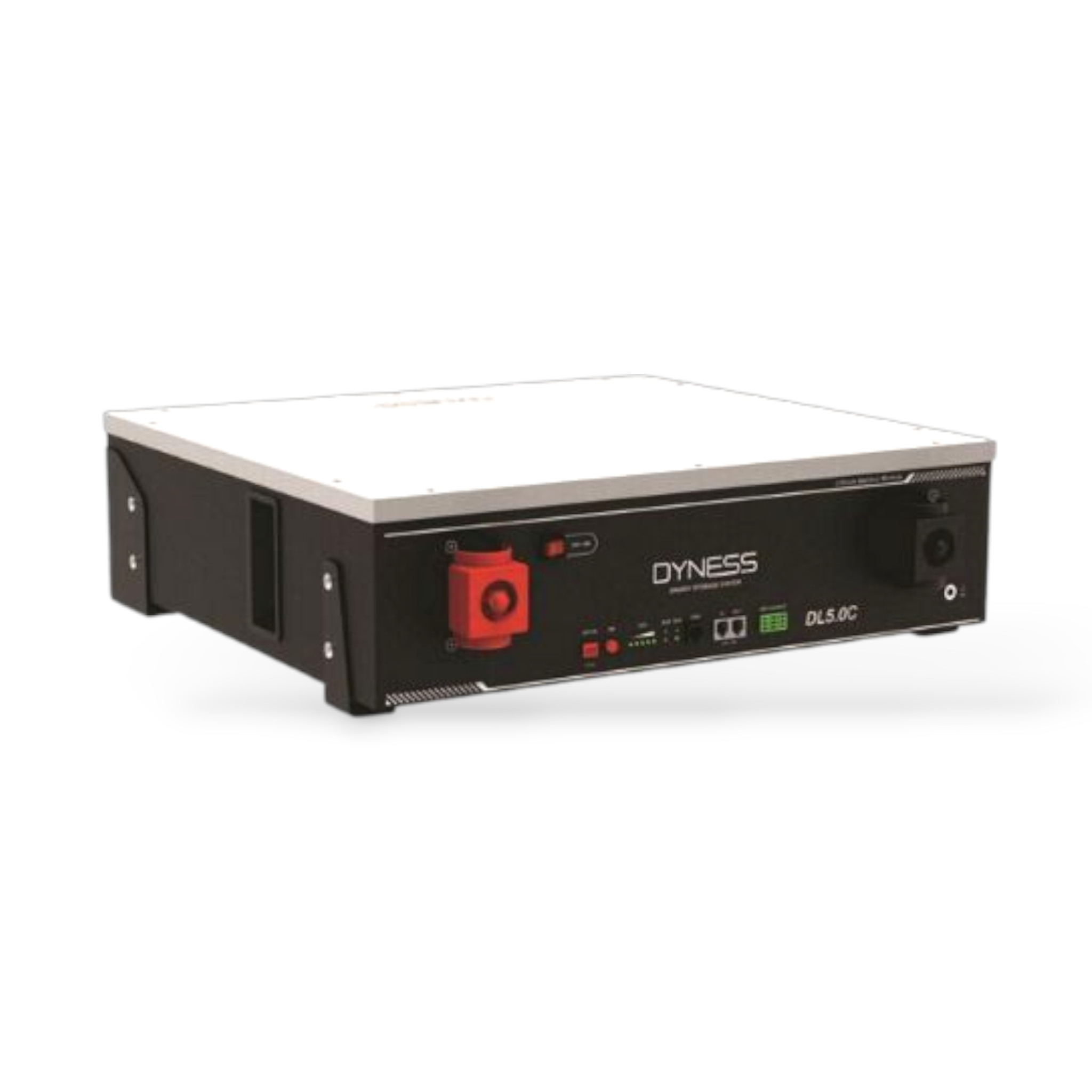

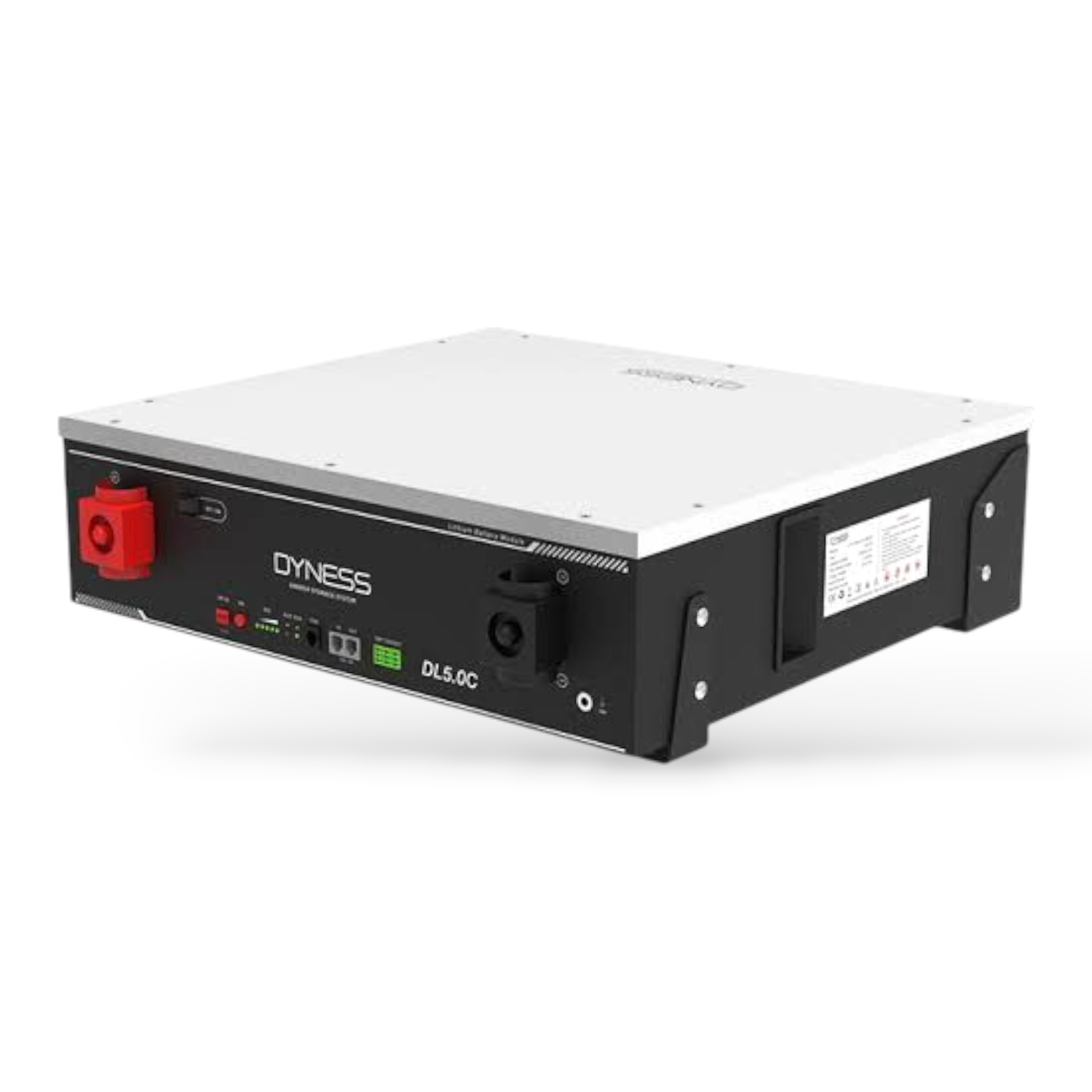

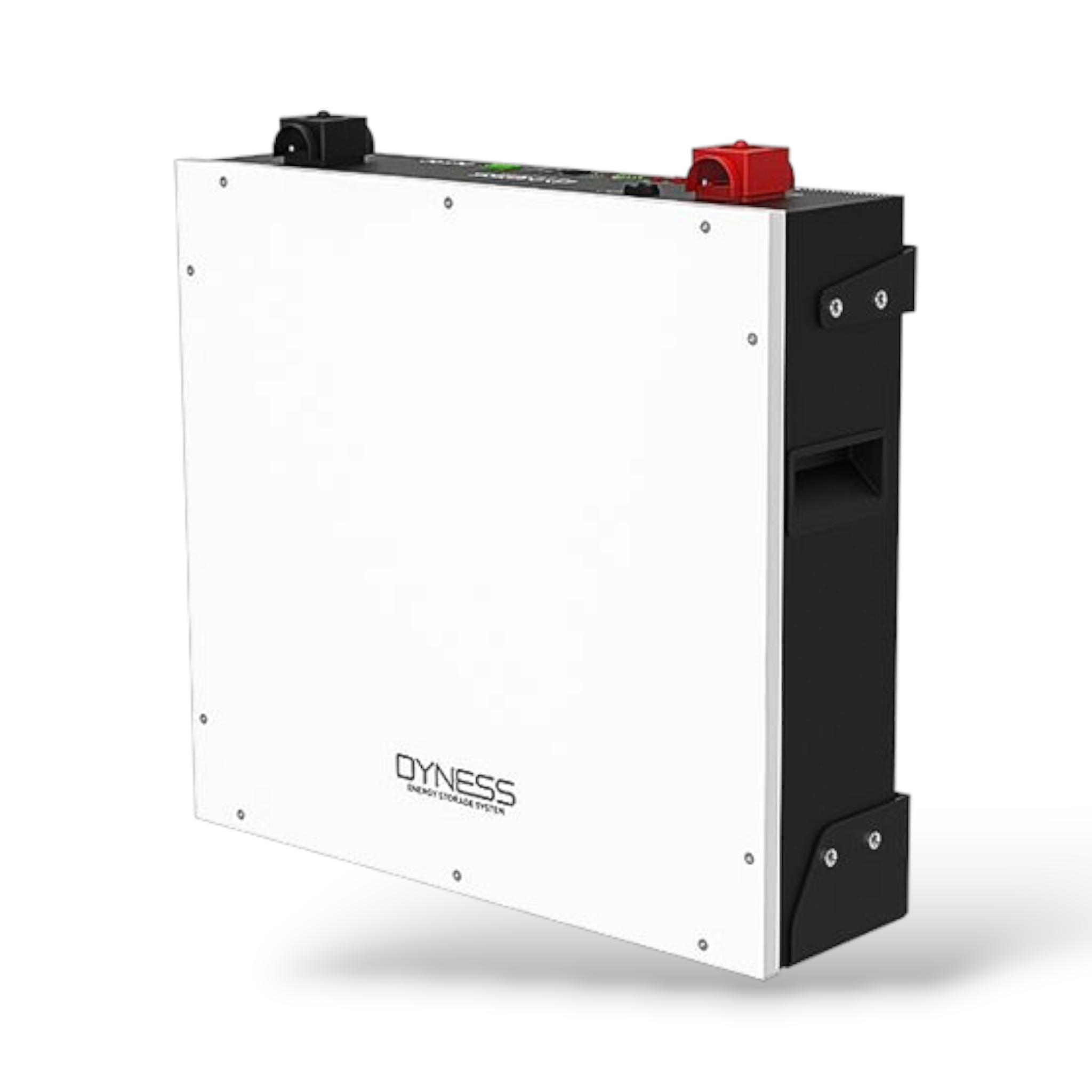

Dyness 51V-100A DL5.0C 5.12KWH Lithium Battery

Dyness 51V-100A DL5.0C Lithium Battery Features

• Premium LiFePO₄ Chemistry
  Utilizes safe and stable lithium iron phosphate technology, ensuring long-lasting performance and high safety.

• Nominal Energy & Capacity
  Stores 5.12 kWh of energy at a nominal 51.2 V and 100 Ah capacity.

• Wide Operating Voltage Range
  Functions across 44.8 V – 57.6 V, offering flexibility for integrating various solar systems.

• Robust Charge/Discharge Profile
  • Recommended rate: 0.5C (~50 A)
  • Maximum continuous discharge: 1C (~100 A)
  • Maximum continuous charge: 75 A
  • Peak power capability: 110 A for short bursts (15 seconds).

• High Depth of Discharge & Cycle Life
  Up to 95% Discharge (DOD) with over 6,000 charge cycles—ensures long-term usage.

• Scalable Design
  Supports up to 50 units in parallel, allowing capacity expansion from 5.12 kWh up to 256 kWh.

• Compact Engineering
  Dimensions: 558 × 545 × 150 mm, Weight: ~54 kg—suitable for installations that require compact-footprint energy storage.

• Smart Monitoring & Upgrades
  Equipped with CAN, RS485, and RS232 for system communication; supports remote monitoring and app-based firmware upgrades.

• High Safety Standards & Certifications
  Meets global safety and performance standards including UN38.3, CE-EMC, IEC 62619, CEI-021, IEC 62040, and UL 1973.

• Flexible Installation Options
  Can be deployed as wall-mounted, floor-standing, or stackable modules, suitable for diverse setups.

• Built-In Cell Balancing & Protection
  Features cell-level monitoring and balancing to maintain battery health and lifespan.
