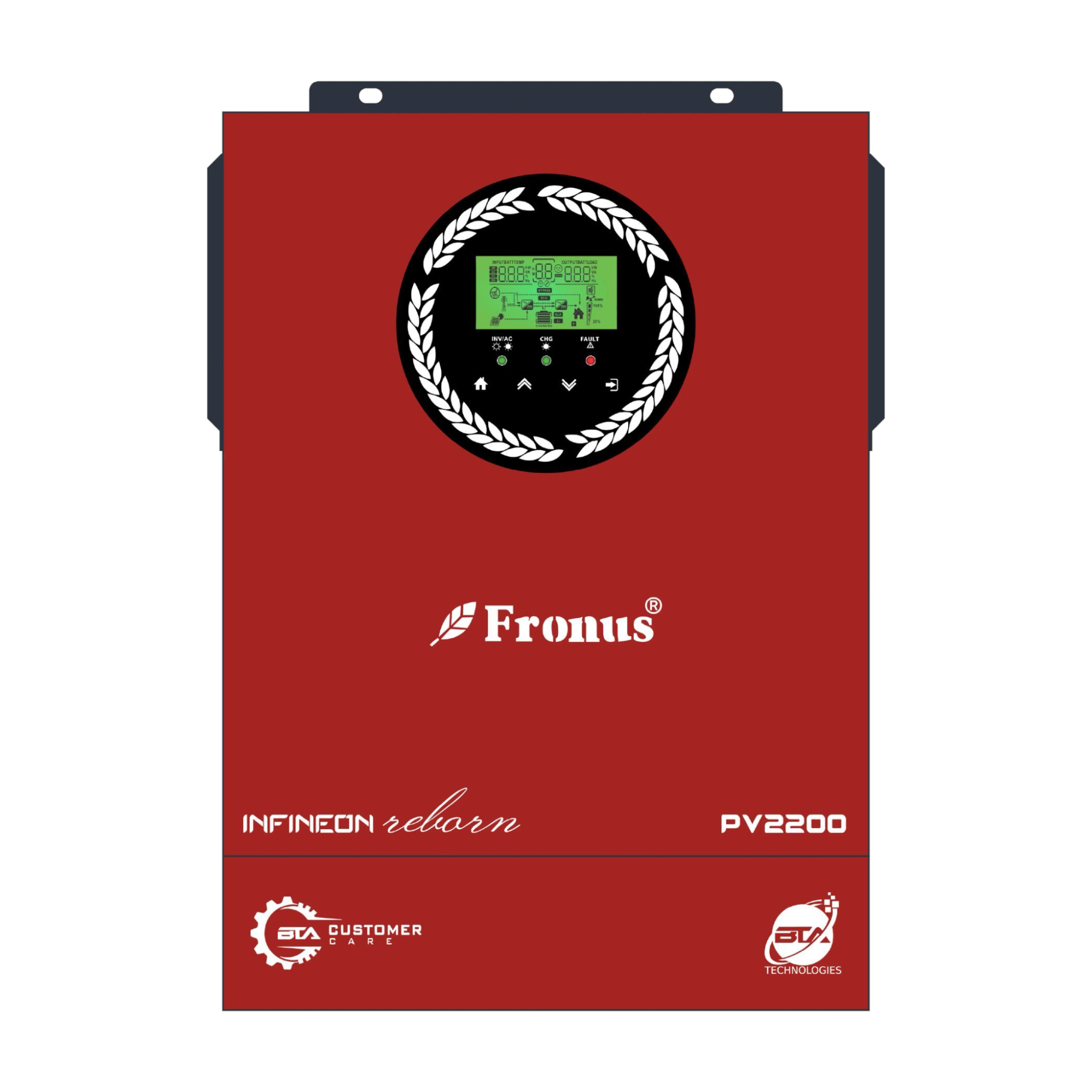

Fronus Infineon 1.6kw PV2200 Hybrid Solar Inverter
,

Fronus Infineon 1.6kw PV2200 Hybrid Solar Inverter

Fronus 1.6kw Hybrid Inverter Features

  • Pure Sine Wave Output
    Delivers clean and stable power, ensuring compatibility with sensitive electronics.

  • High Efficiency
    Achieves up to 98% efficiency from PV to inverter and 94% from battery to inverter, maximizing energy utilization.

  • Built-in 80A MPPT Solar Charge Controller
    Ensures optimal solar energy harvesting with a wide MPPT voltage range of 30V to 400V DC.

  • Surge Power Capacity
    Handles up to 4000VA surge power, accommodating high inrush loads like refrigerators and air conditioners.

  • Flexible Charging Options
    Supports both utility grid and solar MPPT charging with a 3-step charging algorithm, enhancing battery life.

  • Wide Input Voltage Range
    Operates within 170–280VAC for personal computers and 90–280VAC for home appliances, ensuring adaptability to various power conditions.

  • Fast Transfer Time
    Provides quick transfer times of 10ms for personal computers and 20ms for home appliances, minimizing power interruptions.

  • Battery Compatibility
    Compatible with various battery types, including lithium-ion, lead-acid, and tubular batteries, offering flexibility in energy storage solutions.

  • Smart Battery Charging Design
    Optimizes battery charging to extend battery life and performance.

  • Built-in Anti-Dust Kit
    Protects internal components from dust, enhancing durability and performance in harsh environments.

  • Communication Interfaces
    Equipped with RS232, Wi-Fi, and GPRS ports for remote monitoring and control via mobile applications.

  • Compact and Lightweight Design
    With dimensions of 357×273×95 mm and a weight of 4.0 kg, it allows for easy installation and space-saving deployment.

  • Wide Operating Temperature Range
    Operates efficiently within a temperature range of -10°C to 50°C, suitable for various climatic conditions.

₨ 0

Fronus 1.6kw PV2200 Hybrid Solar Inverter

Upgraded MPPT Chip Set

Control with Wifi
Anti Dust Kit
80A Max PV Charging
Li-ion Battery Compatible
Pure Sine Wave

The Fronus PV2200 1.6kW Hybrid Solar Inverter is a compact, powerful, and efficient solution for residential and small-scale solar energy systems. Engineered to deliver a reliable energy supply, this inverter seamlessly integrates solar power, battery storage, and grid electricity to ensure uninterrupted power for essential appliances.

With its pure sine wave output, the PV2200 ensures compatibility with even the most sensitive electronic devices. It features a built-in 80A MPPT solar charge controller, which maximizes energy harvest from your solar panels across a wide voltage range. This inverter supports dual charging from both solar and grid sources, ensuring maximum energy availability and flexibility.

Its advanced surge handling capacity (up to 4000VA) makes it ideal for running high-starting current appliances like refrigerators, motors, and air conditioners. The smart battery charging system supports various battery types and incorporates a 3-stage charging algorithm to extend battery life and enhance performance.

Designed for ease of use and long-term durability, the Fronus PV2200 comes equipped with an anti-dust kit, fast transfer switching, and remote monitoring capabilities via Wi-Fi or GPRS. Its compact and lightweight build makes installation simple, while its wide operating temperature range ensures performance even in challenging environments.

Whether you’re aiming to reduce your electricity bills or need a backup power solution, the Fronus PV2200 1.6kW Hybrid Inverter offers a dependable and smart energy management system built for modern energy needs.

Categories: , Tags: , , , , , , ,

Inverter Mode

Rated Output Power
 2000VA / 1600W
Output Voltage Waveform
 Pure Sine Wave
Output Voltage Regulation
 230VAC ±5%
Output Frequency
 50Hz
Peak Efficiency
 94%
Overload Protection
 5s@≥150% Load
10s@100%~150 Load
Surge Capacity
 2x Rated Power For 5s
Nominal DC Input Voltage
 12Vdc
Cold Start Voltage
 11.5Vdc
High DC Recovery Voltage
 14Vdc
High DC Cut-Off Voltage
 16Vdc
No Load Power Consumption
 25W

Utility Charging Mode

Charging Algorithm
 3-Step
AC Charging Current (Maxinum)
 60A (@V1/P = 230Vac)
Bulk Charging Voltage Flooded Battery
 14.6
Bulk Charging Voltage AGM/Gel Battery
 14.1
Floating Charging Voltage
 13.5Vdc

MPPT Solar Charging Mode

Maximum PV Array Power
 2000W
Nominal PV Voltage
 240Vdc
PV Array MPPT Voltage Range
 30Vdc~400Vdc
Max PV Array Open Circuit Voltage
 400Vdc
Maximum Charging Current
 80A

Line Mode

Input Voltage Waveform
 Sinusoidal (Utility or Generator)
Nominal Input Voltage
 230Vac
Low Loss Voltage
 170Vac ±7V (UPS)
90Vac ±7V (Appliances)
Low Loss Return Voltage
 180Vac ±7V (UPS)
100Vac ±7V (Appliances)
High Loss Voltage
 280Vac±7V
High Loss Return Voltage
 270Vac±7V
Maximum AC Input Voltage
 280Vac
Nominal Input Frequency
 50Hz / 60Hz (Auto Dectection)
Low Loss Frequency
 46±1Hz
Low Loss Return Frequency
 47±1Hz
High Loss Frequency
 54±1Hz
High Loss Return Frequency
 53±1Hz
Output Short Circuit Protection
 Circuit Breaker
Efficiency (Line Mode)
 >95% (Rated R Load, Battery Full Charged)
Transfer Time
 10ms For UPS
20ms For Applicance

General

Safety Certification
 CE
Operating Temperature Range
 -10˚ C to 50˚ C
Storage Temperature
 -15˚ C to 60˚ C
Humidity
 5% to 95% Relative Humidity (Non-Condencsing)
Dimensions (D*W*H) mm
 36*270*100
Net Weight (KG)
 4.4
