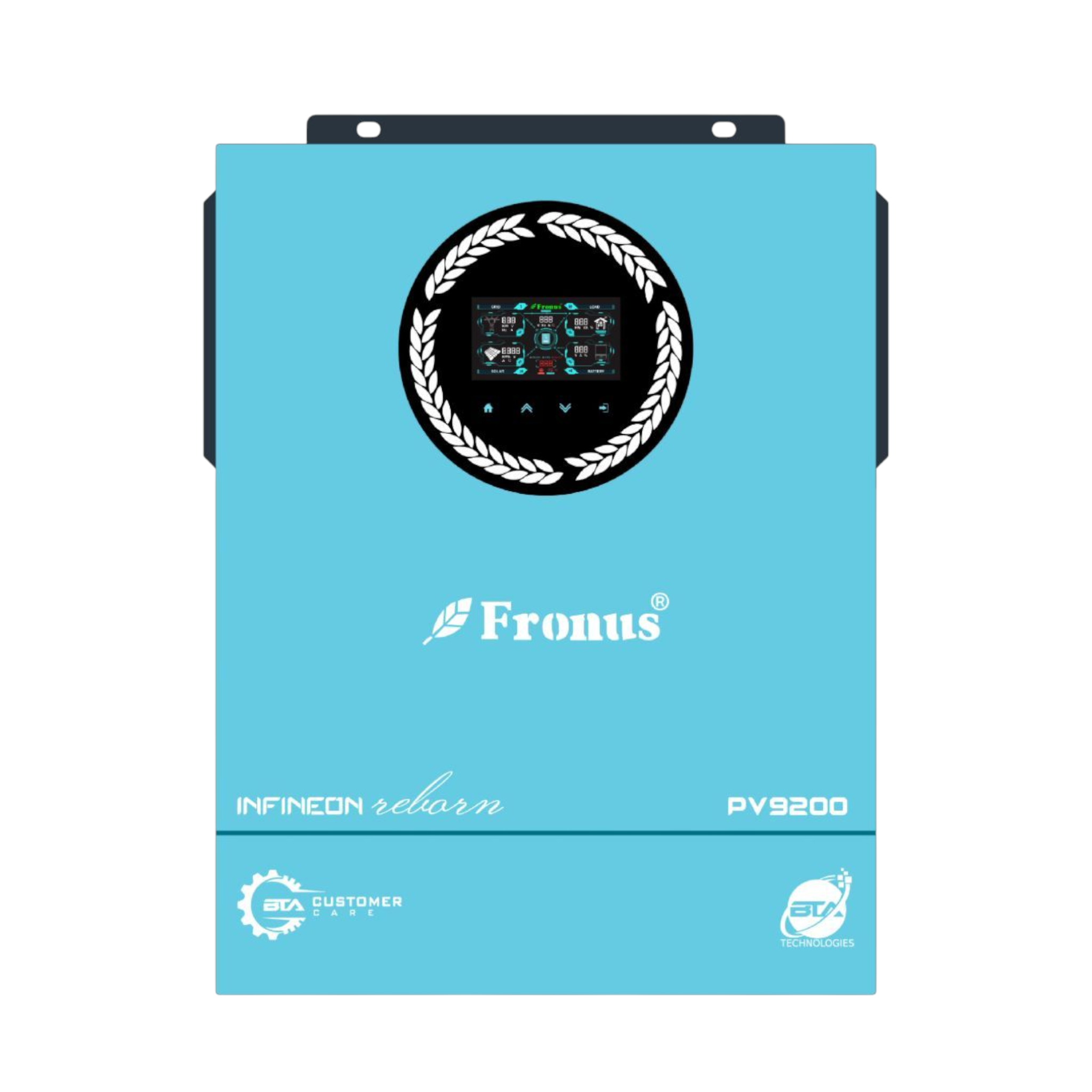

Fronus Infineon 8.2kw PV9200 Hybrid Solar Inverter
,

Fronus Infineon 8.2kw PV9200 Hybrid Solar Inverter

Fronus 8.2kw Hybrid Inverter Features

  • High Power Output: Delivers a rated output power of 8200W/8200VA, suitable for medium to large residential and commercial applications.

  • Maximum PV Input Power: Supports up to 9200W of solar panel input, maximizing energy harvest.

  • Advanced MPPT Technology: Equipped with a 160A MPPT solar charge controller, operating within a wide voltage range of 90V to 450V DC, ensuring optimal solar energy utilization.

  • Pure Sine Wave Output: Provides clean and stable electricity, ensuring compatibility with sensitive electronics.

  • Surge Power Capacity: Handles up to 16,400W surge power for 5 seconds, accommodating high inrush loads like refrigerators and air conditioners.

  • Dual Load Output: Offers two load outputs, with a maximum main load of 8200W and a secondary load up to 2733W in battery mode, providing flexibility in power distribution.

  • Flexible Charging Options: Supports both solar and utility grid charging, with a maximum solar charging current of 160A and AC charging current of 140A, totaling 200A.

  • Battery Compatibility: Compatible with various battery types, including lithium-ion and lead-acid, with a nominal DC voltage of 48V.

  • Smart Battery Management: Features a 3-step charging algorithm and smart battery charge design to optimize battery life and performance.

  • Grid-Tie Functionality: Allows seamless integration with the local grid, supporting feed-in operations with a nominal output voltage of 220/230/240VAC.

  • High Efficiency: Achieves a maximum conversion efficiency of 98%, ensuring minimal energy loss during operation.

  • Fast Transfer Time: Provides quick transfer times of 10ms for UPS mode and 20ms for appliance mode, minimizing power interruptions.

  • Robust Design: Built with an anti-dust kit and designed to operate within a temperature range of -10°C to 50°C, suitable for various environmental conditions.

  • Compact and Lightweight: With dimensions of 420×310×110 mm and a net weight of 14.2 kg, it allows for easy installation and space-saving deployment.

  • Advanced Communication Interfaces: Equipped with RS232, Wi-Fi, and GPRS ports for remote monitoring and control via mobile applications.

₨ 0

Fronus 8.2kw PV9200 Hybrid Solar Inverter

Upgraded MPPT Chip Set
Control with Wifi
Anti Dust Kit
80A Max PV Charging
Li-ion Battery Compatible
Pure Sine Wave

The Fronus PV9200 8.2kW Hybrid Solar Inverter is a next-generation solution designed for high-performance residential and light commercial solar systems. With its robust hybrid functionality, it intelligently integrates power from solar panels, batteries, and the utility grid to provide seamless and efficient energy management.

Built to handle substantial loads, the PV9200 delivers 8200W of continuous output with a surge capacity of up to 16,400W, making it ideal for appliances with high startup power demands. It comes with a 160A high-efficiency MPPT solar charge controller, operating over a broad voltage range to ensure maximum solar energy capture throughout the day.

Designed for flexibility, the inverter features dual AC outputs, supporting smart load management by prioritizing critical and non-critical appliances. It is compatible with various battery chemistries, including lithium-ion and lead-acid, and offers advanced battery management and charging protection through a 3-stage charging process.

With a conversion efficiency of up to 98%, the Fronus PV9200 minimizes energy loss and maximizes solar power usage. Its fast transfer times between power sources ensure uninterrupted operation during power outages. It also supports grid-tie operation, allowing users to feed excess energy back to the utility grid.

Remote monitoring is made simple with built-in Wi-Fi and GPRS compatibility, allowing users to track and control system performance via a mobile app. Compact, lightweight, and built with an anti-dust kit, the PV9200 is engineered for durability in diverse environmental conditions.

Whether you’re looking to reduce energy costs, increase self-consumption, or ensure power reliability, the Fronus PV9200 Hybrid Inverter offers a smart, scalable, and future-ready solar power solution.

Categories: , Tags: , , , , , ,

Inverter Mode

Maximum PV Input Power
 9200W
Rated Output Power
 8200W / 8200VA
Output Voltage Waveform
 Pure Sine Wave
Output Voltage Regulation
 230VAC ±5%
Output Frequency
 50Hz
Peak Efficiency
 93%
Overload Protection
 3s@≥150% Load
5s@101%~150 Load
Surge Capacity
 16400W For 5s
Nominal DC Input Voltage
 48Vdc
Cold Start Voltage
 46.0Vdc
High DC Recovery Voltage
 62Vdc
High DC Cut-Off Voltage
 63Vdc
No Load Power Consumption
 70W

Two Load Output Power

Full Load
 8200W
Maximum Main Load
 8200W
Maximum Second Load Upto(Battery Mode)
 2733W
Main Load Cutt Off Voltage
 52VDC
Main Load Return Voltage
 54VDC

Utility Charging Mode

Charging Algorithm
 3-Step
AC Charging Current (Maxinum)
 100A
Bulk Charging Voltage (Flooded Battery)
 58.4
Bulk Charging Voltage (AGM/Gel Battery)
 56.4
Floating Charging Voltage
 54Vdc

MPPT Solar Charging Mode

Maximum PV Array Power
 9200W
Nominal PV Voltage
 360Vdc
PV Array MPPT Voltage Range
 90Vdc ~ 450Vdc
Max PV Array Open Circuit Voltage
 500Vdc
Maximum Charging Current
 160A

Grid-Tie Operation

Nominal Output Voltage
 220/230/240VAC
Feed-In Grid Voltage Range
 195 ~ 253VAC
Feed-In Grid Frequency Range
 49 ~ 51±1Hz / 59 ~ 61±1Hz
Nominal Output Current
 35.6A
Power Factor Range
 >0.99
Maximum Conversion EŽciency (DC/AC)
 98%

Line Mode

Input Voltage Waveform
 Sinusoidal (Utility or Generator)
Nominal Input Voltage
 230Vac
Low Loss Voltage
 170Vac ±7V (UPS)
90Vac ±7V (Appliances)
Low Loss Return Voltage
 180Vac ±7V (UPS)
100Vac ±7V (Appliances)
High Loss Voltage
 280Vac ±7V
High Loss Return Voltage
 270Vac ±7V
Maximum AC Input Voltage
 300Vac
Nominal Input Frequency
 50Hz / 60Hz (Auto Detection)
Low Loss Frequency
 40±1Hz
Low Loss Return Frequency
 42±1Hz
High Loss Frequency
 65±1Hz
High Loss Return Frequency
 63±1Hz
Output Short Circuit Protection
 Circuit Breaker
EŽciency (Line Mode)
 >95% (Rated R Load, Battery Full Charged)
Transfer Time
 10ms For UPS
20ms For Applicance

General Specs

Safety Certification
 CE
Operating Temperature Range
 -10˚ C to 50˚ C
Storage Temperature
 -15˚ C to 60˚ C
Humidity
 5% to 95% Relative Humidity (Non-Condencsing)
Dimensions (D*W*H) mm
 500 x 390 x 130
Net Weight (KG)
 14.2
