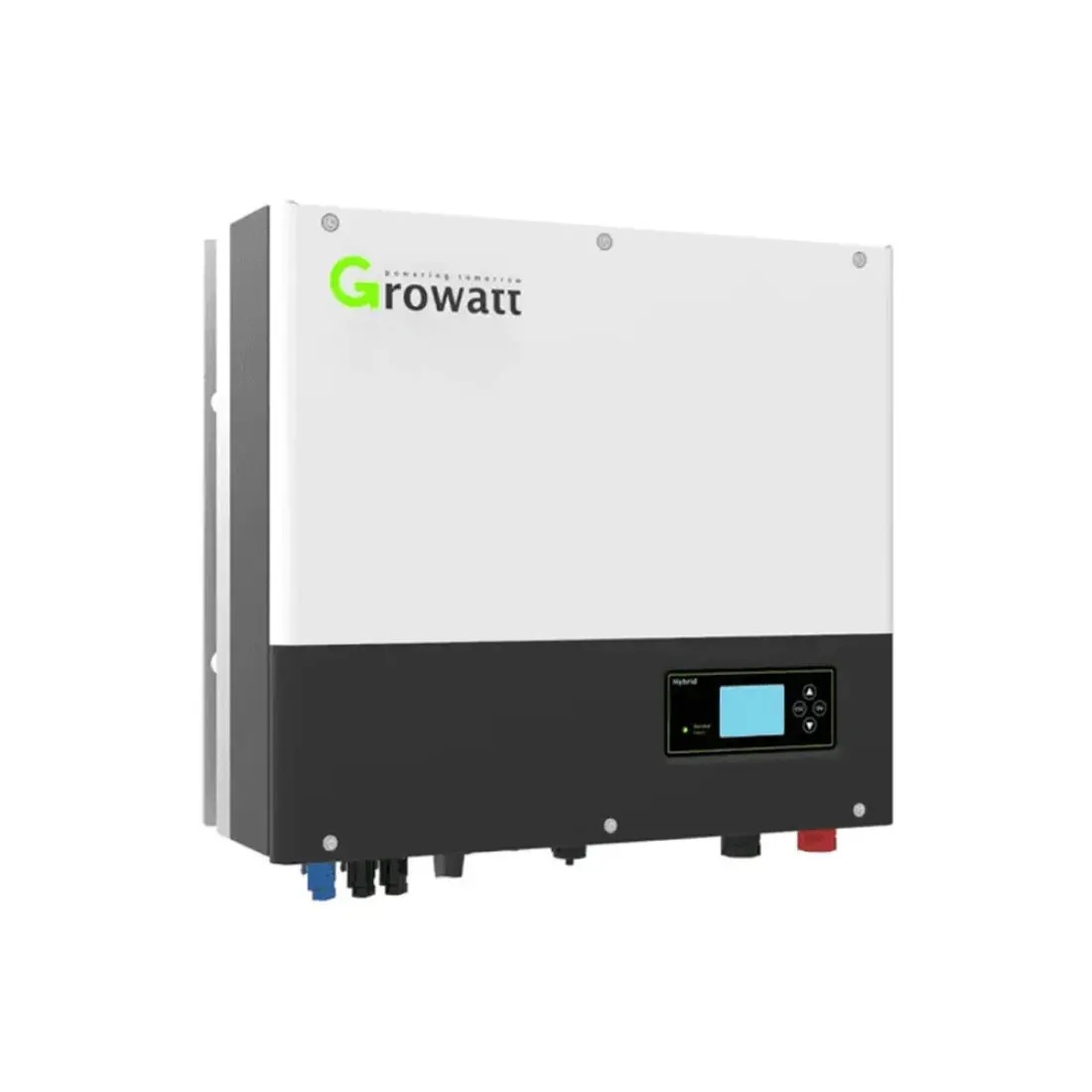

Growatt 10KW Three Phase Hybrid Solar Inverter

Growatt 10KW Three Phase Hybrid Inverter Features

• Dual MPPT (Maximum Power Point Tracking):

  • Allows two independent solar arrays with different orientations or tilts.

  • Each MPPT can handle 25A input current, suitable for high-power solar panels.

• Wide PV Voltage Range (120V–1000V):

  • Offers flexibility in string design, supporting up to 13,000W PV input.

  • Ensures early startup and long-duration energy harvesting during the day.

• High Input Voltage (Max 1000V DC):

  • Reduces cable losses, enabling longer string configurations with fewer wires.

• PV Utilization Efficiency:

  • Max efficiency: 98.2%, Euro efficiency: 97.5% for minimal conversion loss.

• Advanced MPPT Algorithm:

  • Rapid tracking to maximize output under varying sunlight and shading.

• Powerful Battery Storage Compatibility

• Low Voltage Battery Support (48V nominal):

  • Works with both lithium-ion and lead-acid batteries.

• Battery Voltage Range (40V–60V):

  • Suitable for most standard home battery systems.

• Max Charge/Discharge Current: 25A:

  • Supports fast charging and efficient energy utilization.

• CAN/RS485 Battery Communication:

  • Seamless integration with leading battery brands for real-time management.

• Programmable Charging:

  • Set charging times (e.g., from grid at night) and discharge priorities.

• Three-Phase AC Output with Backup Functionality

• Rated Output Power: 10,000W (10kW):

  • Ideal for large homes or small commercial buildings.

• Three-Phase Balanced or Unbalanced Support:

  • Works with phase-imbalanced loads, common in residential setups.

• EPS (Emergency Power Supply) Mode:

  • <10ms switchover to battery during outages — true UPS capability.

• Support for Smart Loads & Generators:

  • Dry contact outputs can control non-essential loads or generator input.

• Smart Grid & Load Management

• Self-Consumption Optimization:

  • Prioritize home use over export, maximize energy savings.

• Time-of-Use Scheduling:

  • Charge or discharge battery based on peak/off-peak grid pricing.

• Zero Export Control:

  • Optional CT or energy meter to comply with utility no-export policies.

• Smart Load Control:

  • Use dry contact relay to automate non-essential loads like EV chargers, ACs, water heaters.

• Monitoring & Remote Access

• Built-In Communication Ports:

  • RS232 / RS485 / CAN / USB standard.

• WiFi, GPRS, or LAN (optional):

  • Remote monitoring via ShineLink / ShineWiFi / ShineServer platforms.

• Smartphone App (iOS/Android):

  • Track PV generation, battery status, grid usage, and more in real time.

• Fault Diagnostics & Firmware Upgrades:

  • Remote troubleshooting and updates for minimal downtime.

• Durable, Quiet, and Easy to Install

• Fanless Natural Convection Cooling:

  • Silent operation with fewer moving parts — low maintenance.

• IP65 Rating:

  • Weatherproof design for indoor or outdoor mounting.

• Compact Design (505 × 453 × 198 mm):

  • Easy wall-mounted installation.

• Lightweight (28kg):

  • Manageable by 1–2 installers.
