Mora 1P AC MCB Circuit Breaker C Type 230/400V
Mora 1P AC MCB Breaker Features
-
Single‑Pole Protection – Protects one live conductor in 230 V / 400 V AC circuits.
-
C‑Type Tripping Curve – Trips at 5‑10× rated current, ideal for general loads like lighting and appliances with moderate inrush.
-
Overload Protection – Prevents damage by tripping when current exceeds the rated amperage.
-
Short‑Circuit Protection – Interrupts fault currents quickly to protect wiring and devices.
-
Thermal‑Magnetic Trip Mechanism – Combines thermal overload response with magnetic short‑circuit response for reliable protection.
-
DIN‑Rail Mountable – Standard 35 mm DIN‑rail installation for distribution boards.
-
Easy Manual ON/OFF – Simple toggle operation for isolation and reset after faults.
₨ 450 ₨ 599

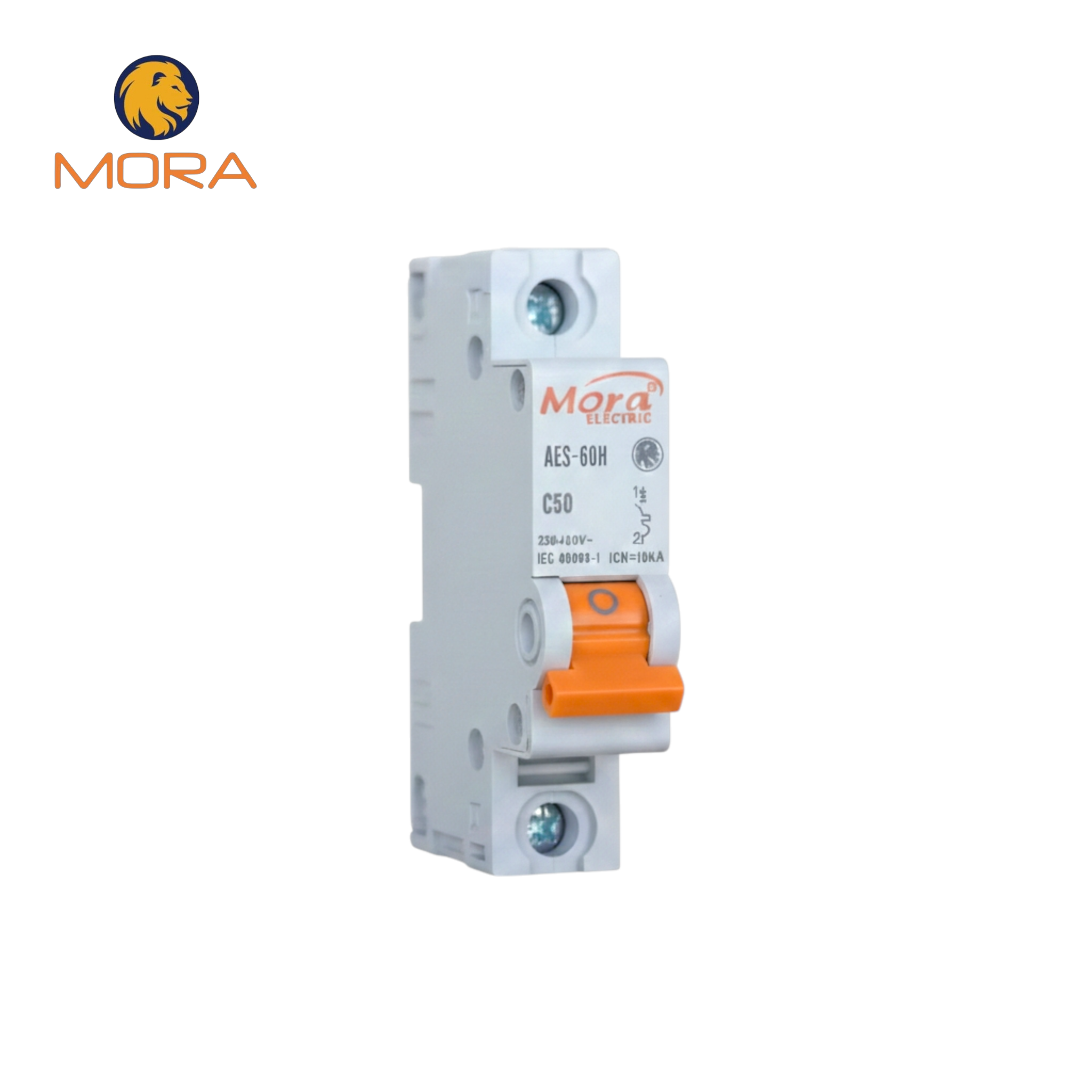

Mora 1P AC MCB Circuit Breaker C Type 230/400V
The Mora 1P AC MCB Circuit Breaker (C‑Type, 230/400V) is single‑pole miniature circuit breaker designed to protect electrical circuits from overload and short‑circuit faults in standard AC systems. It features a C‑type trip curve that allows for reliable tripping at 5–10× the rated current—ideal for lighting, household, and general purpose circuits with moderate inrush characteristics. The breaker is available in a range of current ratings (e.g., 2 A to 63 A), fits standard DIN‑rail mounting, and provides quick manual ON/OFF operation as well as dependable safety performance. Compact and durable, it’s suitable for residential, commercial, and light industrial distribution boards, helping safeguard wiring and connected devices from dangerous over‑current conditions.
| Specification | Details |
|---|---|
| Model / Type | Mora 1P AC MCB Circuit Breaker (C‑Type) |
| Pole Configuration | 1 Pole (Single‑phase) — protects the live conductor |
| Rated Operational Voltage | 230 V / 400 V AC |
| Current Ratings Available | 2 A, 4 A, 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A (varies by model) |
| Tripping Curve | Type C — suitable for general loads with moderate inrush |
| Protection Functions | Overload & Short‑Circuit Protection |
| Breaking Capacity (Typical) | 4.5 kA – 6 kA (common for C‑Type MCBs at this rating) |
| Frequency | 50 Hz / 60 Hz |
| Trip Unit | Thermal‑Magnetic (responds to overloads and faults) |
| Mounting | 35 mm DIN‑Rail |
| Terminal Capacity | Up to ~25–35 mm² (typical for single‑pole MCBs) |
| Standards Compliance | IEC/EN 60898‑1 (general circuit breaker standard) |
| Application | Branch circuit protection in residential, commercial, and light industrial AC systems |
