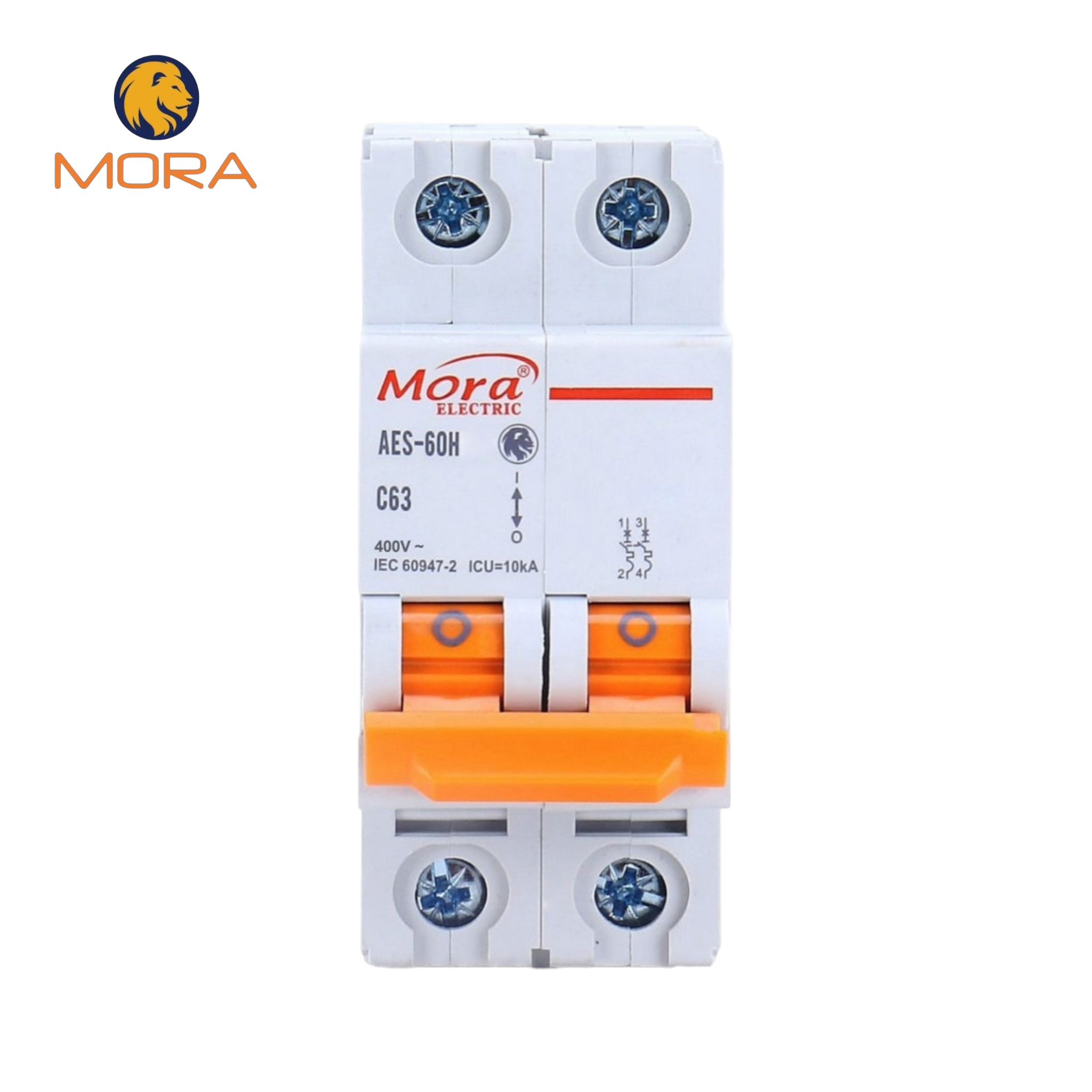

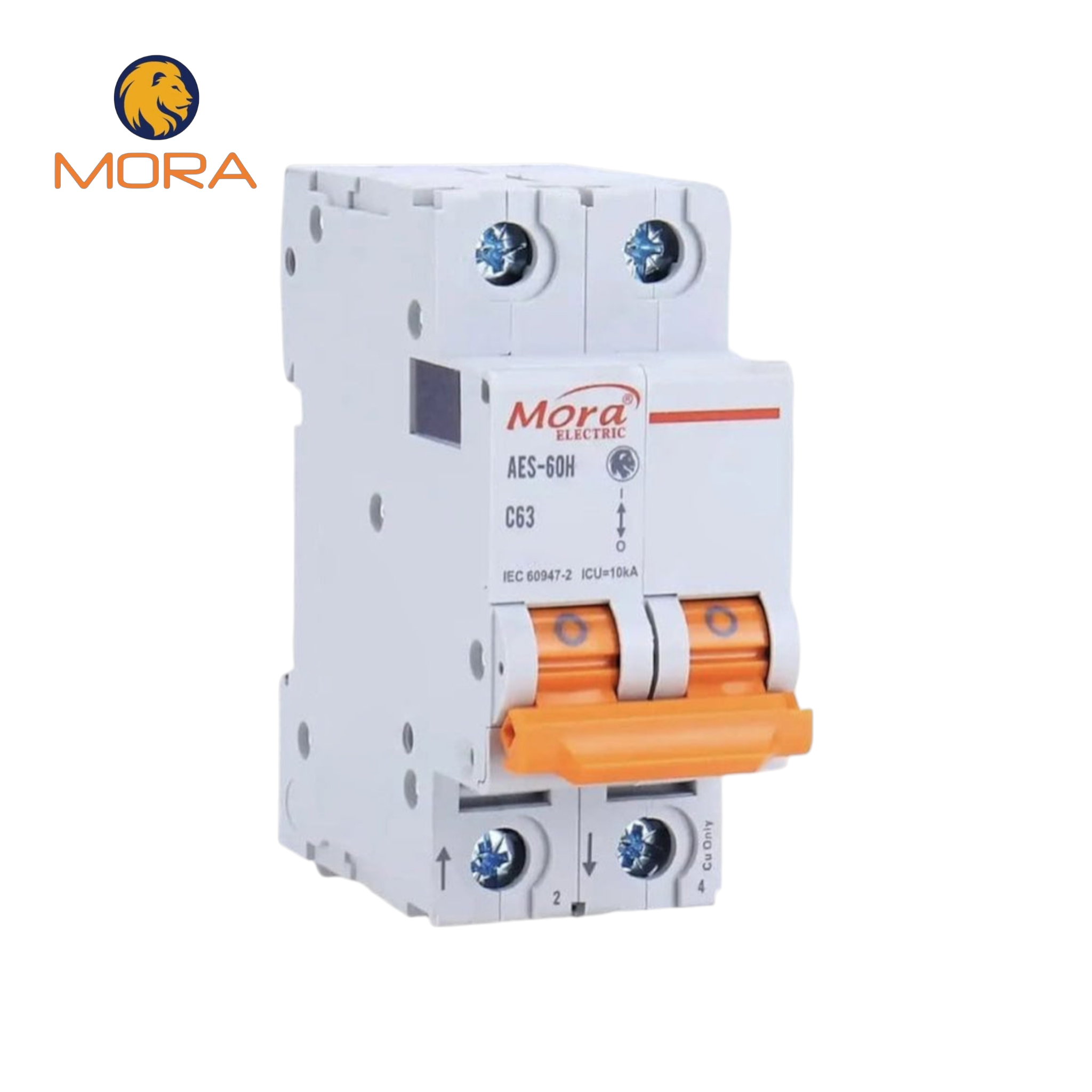

Mora 2P AC MCB Circuit Breaker C Type
Mora 2P AC MCB Breaker Features
-
2‑Pole Protection – Simultaneously breaks live and neutral in single‑phase AC circuits for enhanced safety.
-
C‑Type Tripping Curve – Ideal for general branch circuits and mixed loads, offering good sensitivity to short‑circuit faults while tolerating moderate inrush currents.
-
Overload Protection – Trips when current exceeds the rated value to protect wiring and devices from overheating.
-
Short‑Circuit Protection – Quickly interrupts dangerous fault currents to prevent damage to electrical installations.
-
Standard AC Voltage Rating – Designed for 230 V / 400 V AC single‑phase and light three‑phase distribution systems.
-
Manual Operation – Easy ON/OFF switching for load isolation during maintenance or testing.
-
Reliable Thermal‑Magnetic Trip Unit – Combines thermal overload and magnetic short‑circuit tripping for robust protection.
₨ 999 ₨ 1,500
Mora 2P AC MCB Circuit Breaker C Type
The Mora 2P AC MCB Circuit Breaker (C‑Type) is reliable 2‑pole miniature circuit breaker designed for overload and short‑circuit protection in single-phase AC systems. Featuring a Type C tripping curve, it is suitable for general-purpose loads and appliances with moderate inrush currents, such as lighting circuits, motors, and household equipment. The breaker provides simultaneous disconnection of live and neutral conductors, ensuring enhanced safety. Its compact, DIN‑rail mountable design allows easy installation in electrical panels, while the thermal-magnetic trip mechanism ensures rapid protection against overcurrent events. Built from flame-retardant materials, it delivers long-term durability and compliance with IEC/EN standards, making it ideal for residential, commercial, and light industrial applications
| Specification | Details |
|---|---|
| Model / Type | Mora 2P AC MCB Circuit Breaker (C‑Type) |
| Pole Configuration | 2‑Pole (L + N) — breaks both live and neutral for safety |
| Rated Voltage | 230 V / 400 V AC |
| Rated Current Options | Commonly 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A (varies by SKU) |
| Tripping Curve Type | Type C — suitable for general loads with moderate inrush |
| Breaking Capacity | Typically 6 kA – 10 kA (depends on regional spec) |
| Frequency | 50 Hz / 60 Hz |
| Trip Unit | Thermal‑Magnetic (overload + short‑circuit protection) |
| Mounting | 35 mm DIN‑Rail |
| Standards Compliance | IEC/EN 60898 / IEC/EN 60947‑2 (common MCB standards) |
| Operating Temperature | ~‑5 °C to +40 °C (typical) |
| Mechanical Life | ~10,000 operations (typical) |
| Electrical Life | ~4,000 operations (typical) |
| Application Areas | Branch circuit protection in residential, commercial, and light industrial AC systems |
| Protection Functions | Overload protection, short‑circuit protection, manual ON/OFF isolation |
| Housing Material | High‑strength flame‑retardant plastic |
Based on 0 reviews
Be the first to review “Mora 2P AC MCB Circuit Breaker C Type”
Related products
-
Ac/dc Breakers, Solar Accessories

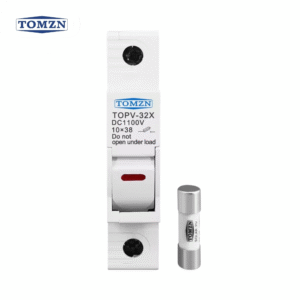

TOMZN Fuse Set-DC 1100V-TOPV-32x
