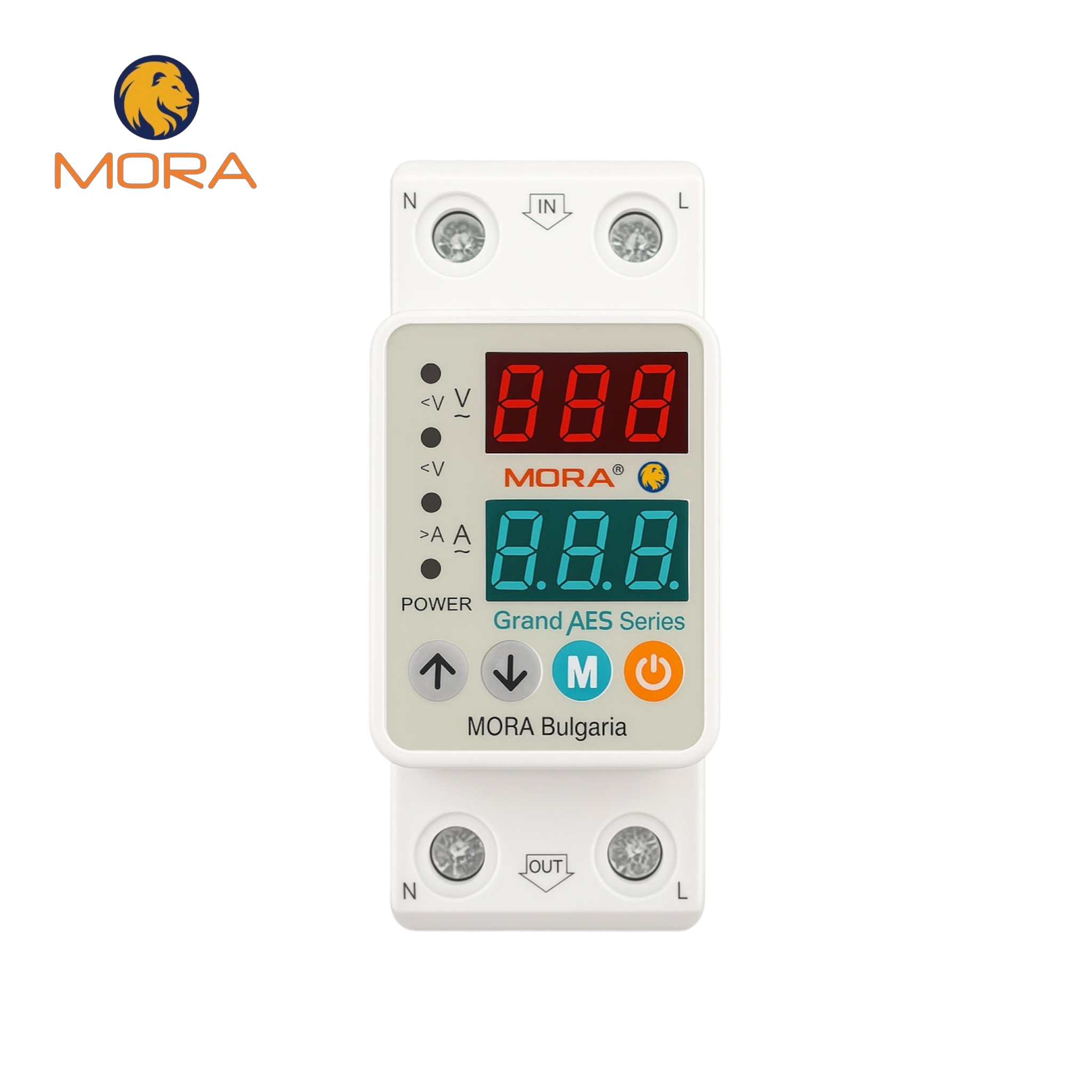

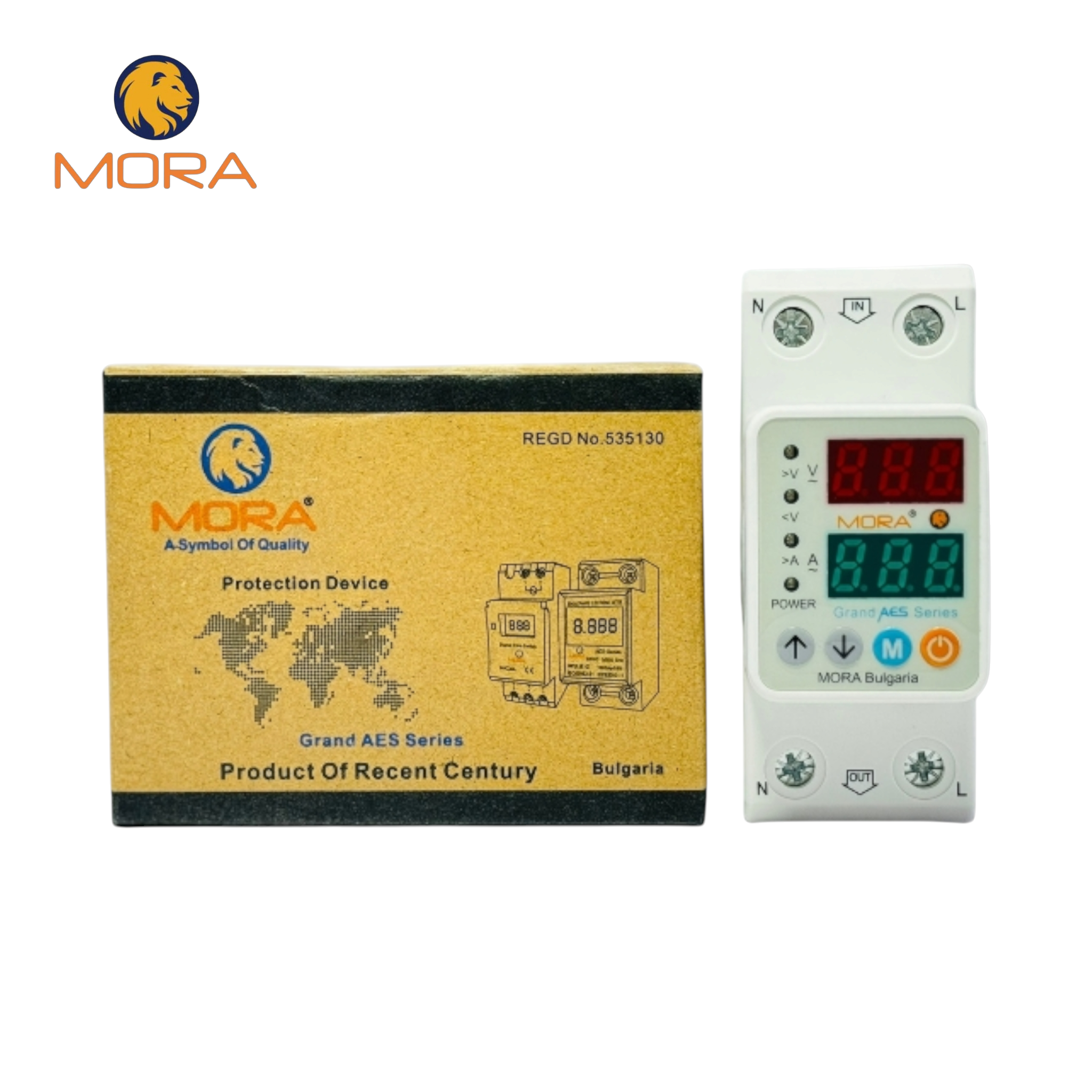

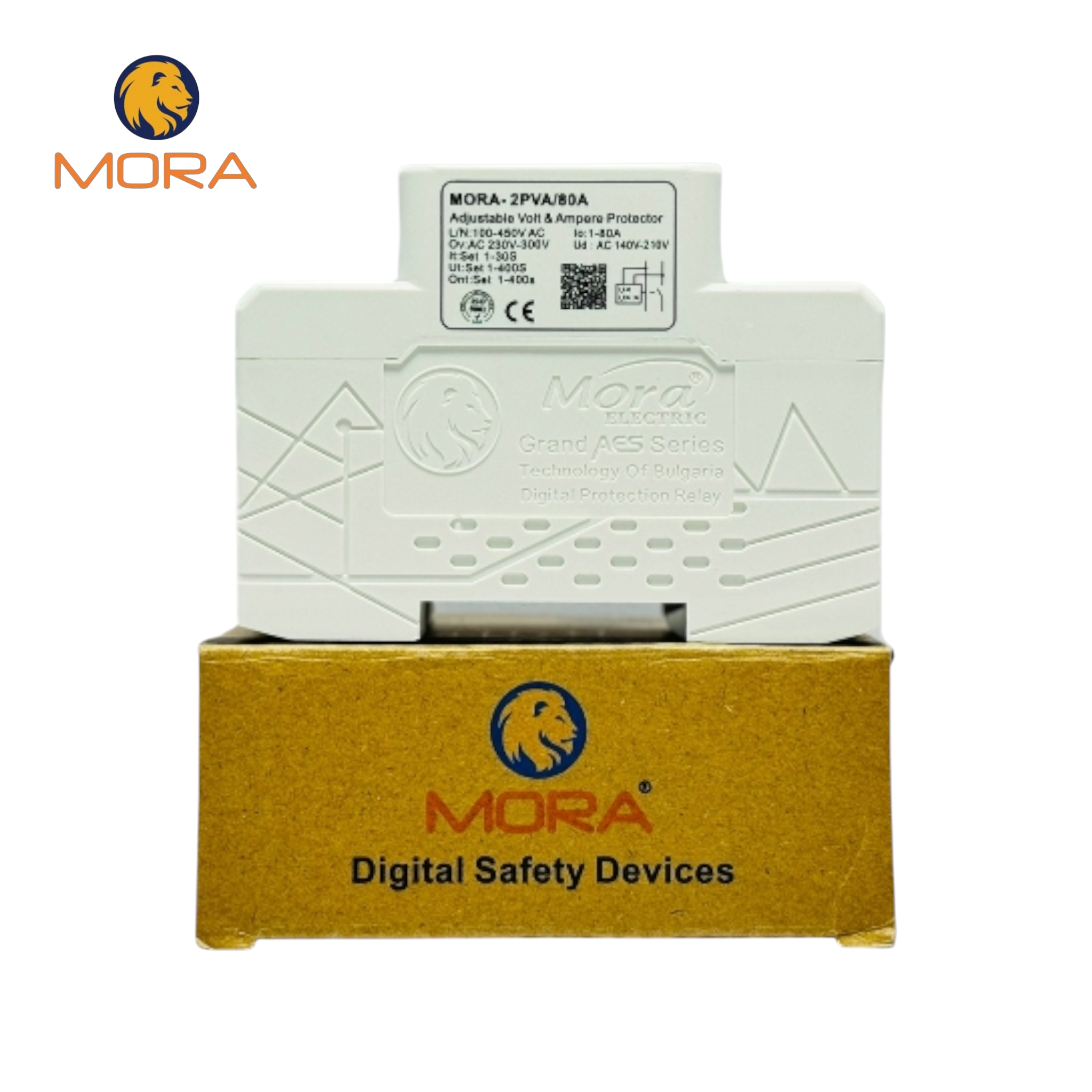

Mora 80A VA Protector By MORA Bulgaria With Time Delay Function
Mora 80A VA Protector Features
-
High Voltage Protection – Disconnects power when voltage rises above safe limits to prevent damage to appliances and equipment.
-
Low Voltage Protection – Cuts the supply if voltage falls below a safe threshold, protecting devices from under voltage stress and malfunction.
-
Overcurrent Protection – Guards against excessive current flow when load exceeds the rated 80 A capacity.
-
Time Delay Function – Includes a delay before reconnecting power after a fault, preventing rapid on/off cycles and protecting sensitive electronics.
-
Real-Time Ampere Monitoring – Shows current draw once load exceeds 1 A, aiding in load tracking and safety.
-
Durable & Reliable Build – Designed for long-term use in residential and commercial electrical installations
₨ 1,199 ₨ 2,199
Mora 80A VA Protector By MORA Bulgaria With Time Delay Function
The Mora 80A VA Protector by MORA Bulgaria is voltage and current protection device designed to safeguard electrical systems and appliances from common power problems. It provides automatic cut-off during both high-voltage (over-voltage) and low-voltage (under-voltage) conditions, helping prevent damage to sensitive electronics and heavy loads. The unit also includes over-current protection for loads over 80 A and a time-delay function that avoids rapid on/off cycling after power disturbances, ensuring safer and more stable reconnection. Many models support real-time current monitoring above 1 A and are built with durable components and robust design suitable for residential, commercial, and industrial installations, protecting appliances such as AC units, refrigerators, motors, and lighting systems from unstable mains voltage.
| Specification | Details |
|---|---|
| Model / Type | Mora 80A VA Protector (Voltage-Ampere Protector) |
| Brand | MORA Bulgaria |
| Rated Working Current | 80 A |
| Rated Working Voltage | AC 230 V, 50 Hz |
| Over-Voltage Protection | AC 230 V – 275 V (Factory default ~275 V) |
| Under-Voltage Protection | AC 160 V – 220 V (Factory default ~175 V) |
| Over-Current Protection Value | 0–40 A (Factory default ~40 A) |
| Automatic Closing Delay | 0–30 s (Factory default ~30 s) |
| Display Voltage Range | 70–400 V |
| Display Current Range | 0–99.9 A |
| Lightning Surge Withstand | Up to ~5 kV |
| Own Power Consumption | < 1.5 W |
| Short-Circuit Withstand (Max) | 3000 A (≤ 40 A), 4500 A (> 50 A) |
| Action Time | 0–30 s (Factory default ~30 s) |
| Mechanical Life | > 100,000 operations |
| Mounting | Guide-rail / DIN-rail modular design |
| Dimensions (L×W×H) | ~80 × 37 × 66 mm |
| Ambient Temperature Range | -25 °C to +55 °C |
| Relative Humidity | 45–90% RH at 40 °C |
| Pollution Level | Class 2 |
