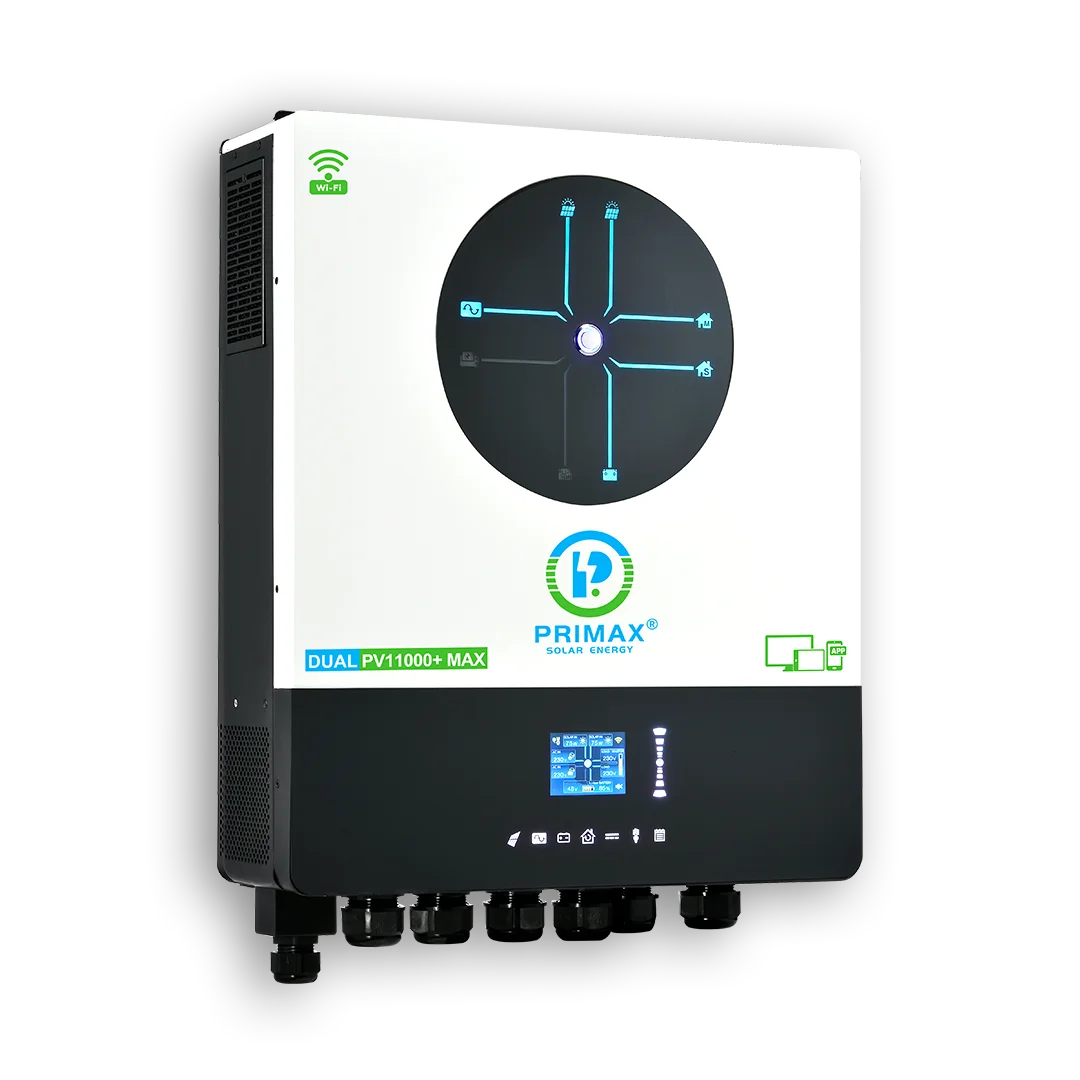

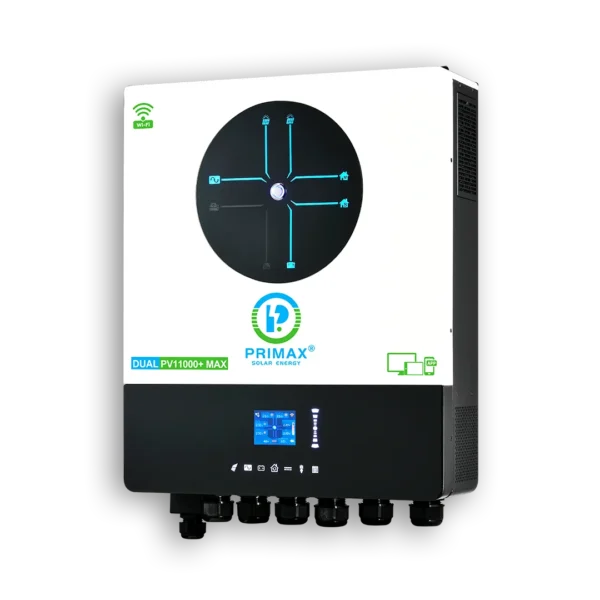

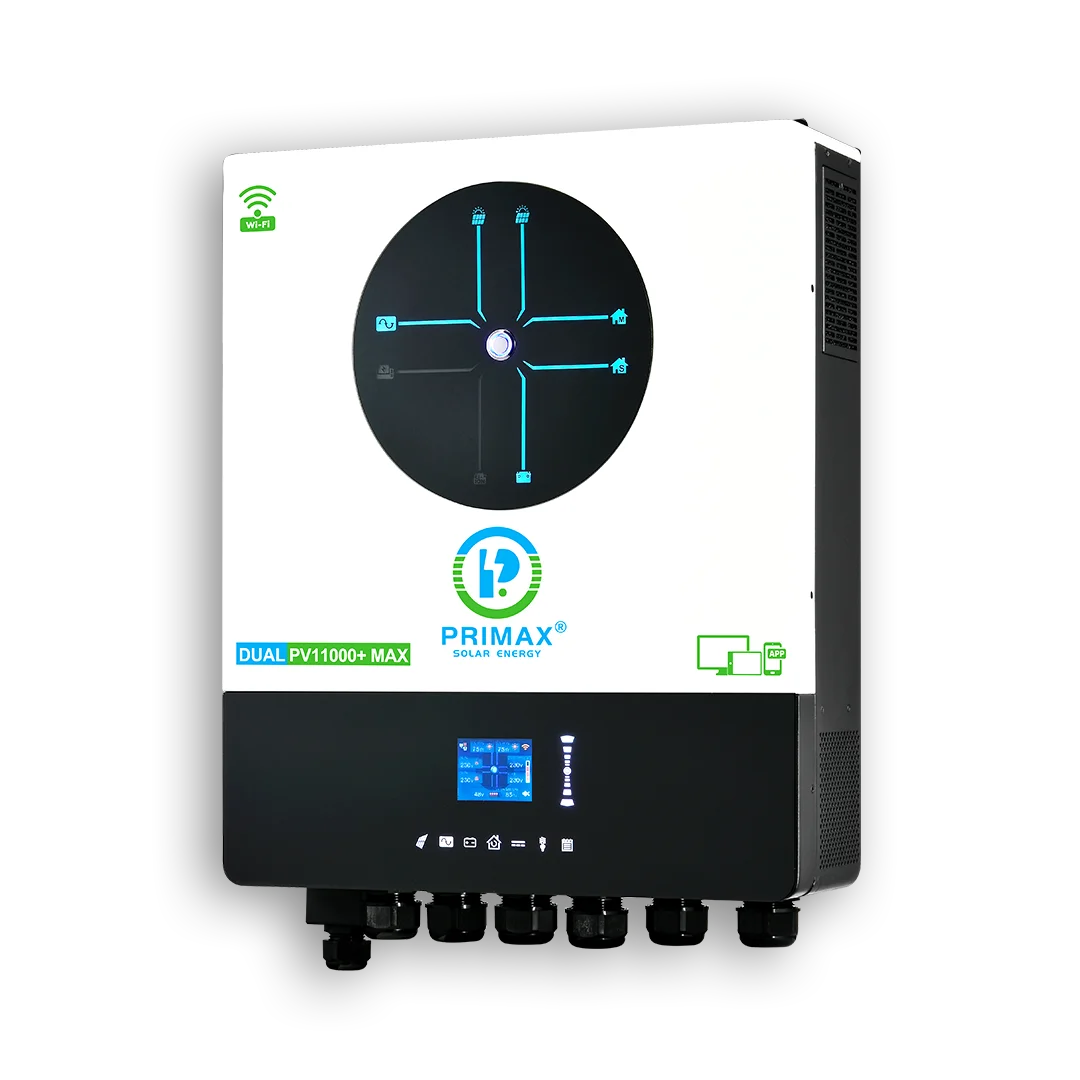

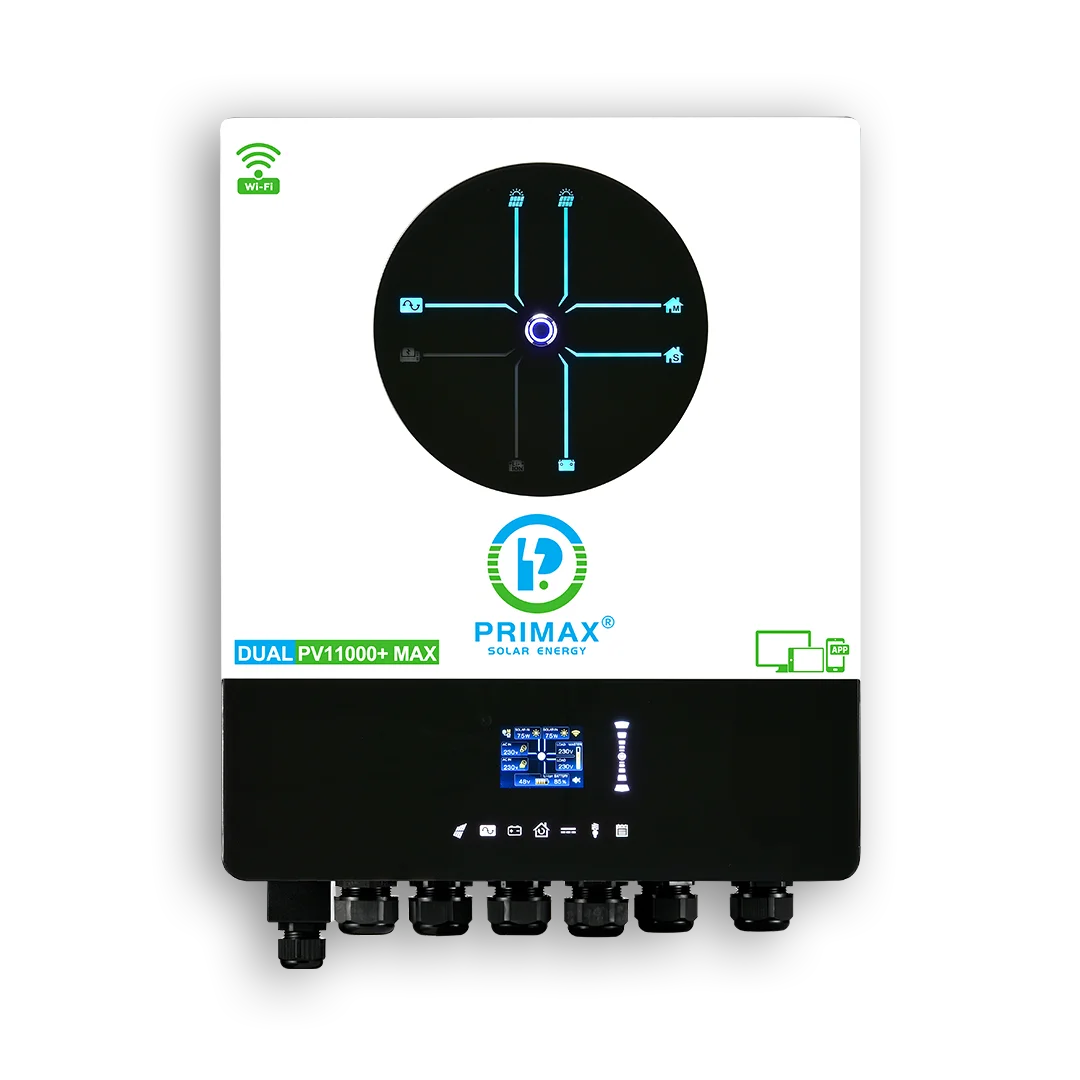

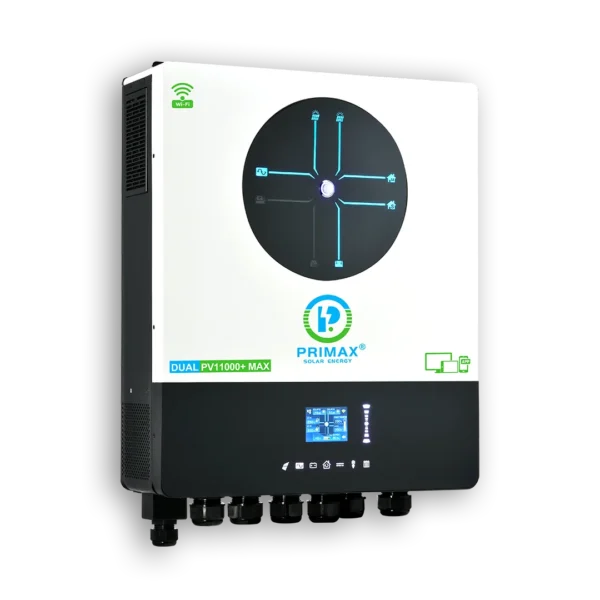

Primax Galaxy Dual PV11000+ Max 8KW Hybrid Mppt Solar Inverter
Primax Galaxy Dual PV11000+ Max 8KW Hybrid Mppt Solar Inverter - Image 2
Primax Galaxy Dual PV11000+ Max 8KW Hybrid Mppt Solar Inverter - Image 3
Primax Galaxy Dual PV11000+ Max 8KW Hybrid Mppt Solar Inverter - Image 4
,

Primax Galaxy Dual PV11000+ Max 8KW Hybrid Mppt Solar Inverter

Primax Galaxy Dual PV11000+ Max Inverter Features

  • Dual Outputs for Smart Load Management
    Efficiently manages and distributes power between critical and non-critical loads.
  • Maximum PV Input Current: 27A x 2 (Max 40A)
    Handles substantial solar input, optimizing energy harvesting and system performance.
  • Maximum PV Input Power: 11,000W (5500W x 2)
    Supports high-capacity solar input for enhanced energy generation.
  • Wide PV Input Voltage Range: 90VDC ~ 450VDC
    Compatible with a wide range of solar panel configurations for flexible installation.
  • Status Indication with RGB Lights
    Provides clear visual feedback on system performance with customizable RGB LED lights.
  • Built-In Wi-Fi for Mobile Monitoring
    Allows remote control and monitoring through a dedicated Android/iOS app for ease of use.
  • Supports USB On-the-Go Function
    Facilitates easy data access and transfer for enhanced user experience.
  • Reserved Communication Ports (USB/RS232/RS485/Wi-Fi/Dry-contact/BTS)
    Offers compatibility with external systems and enables integration with BMS for advanced monitoring.
  • Optional GFCI, Rapid Shutdown, and AFCI Detection
    Supports enhanced safety features, ensuring compliance with electrical safety standards.
  • Maximum Charging Current: 120A
    Ensures fast and efficient battery charging for optimized storage.
  • Battery Independent Design
    Provides flexibility for systems that do not require battery storage.
  • Compatible with Utility Mains or Generator Input
    Offers backup power solutions, ensuring reliable energy supply in various conditions.
  • Built-In Anti-Dust Kit
    Protects internal components from dust, ensuring longevity and performance in harsh environments.
  • Parallel Operation with Up to 6 Units
    Scales the system to meet larger energy demands by linking up to 6 inverters.
  • Maximum AC Output Power: 8000W
    Delivers sufficient power to support large appliances and systems.

₨ 398,000

Primax Galaxy Dual PV11000+ Max Solar Inverter

The Primax Galaxy Dual PV11000+ Max is a high-performance solar inverter designed for large-scale energy systems, providing advanced features for both residential and commercial applications. With dual outputs for smart load management, it efficiently allocates power to critical and non-critical loads, ensuring optimal energy usage. This inverter is built for flexibility, compatibility, and maximum efficiency, making it ideal for both grid-connected and off-grid systems.

Featuring a maximum PV input of 11,000W (5500W per input channel), it supports high-capacity solar arrays, ensuring maximum energy generation. The maximum PV input current of 40A (27A x 2) allows it to efficiently handle substantial solar input, while the wide PV input voltage range of 90VDC to 450VDC offers installation flexibility and compatibility with various solar panel setups.

The inverter provides status indication with RGB lights, allowing users to easily monitor system performance through visual feedback. Additionally, built-in Wi-Fi enables remote mobile monitoring via Android/iOS apps, making it convenient to manage and track the system from anywhere.

Equipped with a USB On-the-Go function, it allows for quick data transfer, while the reserved communication ports (USB/RS232/RS485/Wi-Fi/Dry-contact/BTS) ensure full integration with Battery Management Systems (BMS) and other external components. This inverter supports optional safety features like GFCI, Rapid Shutdown, and AFCI Detection, ensuring compliance with modern electrical standards and safety regulations.

The maximum charging current of 120A allows for fast and efficient battery charging, and the battery-independent design provides flexibility for systems that may not require battery storage. Additionally, the inverter is compatible with utility mains or generator input, offering reliable backup power. The built-in anti-dust kit protects internal components from dust and debris, ensuring long-term performance in a variety of environments.

With the ability to operate in parallel with up to 6 units, this inverter can be scaled to meet growing energy demands. The maximum AC output of 8000W provides ample power for various applications, making it suitable for high-demand systems.

Categories: , Tags: , , , , , , , , , , , , , , , , , , , ,
RATED POWERPHASE 8000V/8000W1- Phase In / 1- Phase Out
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz(Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC+-5%
Surge Power 16000VA
Efficiency (Peak) 93%
Transfer Time 10ms (For Personal Computers)20ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 500VDC
Maximum PV Array Power 11000W (5500W x 2)
MPPT Range@ Operating VoltageMaximum PV Input Current 90 ~ 450 VDC27A x 2 (MAX 40A)
Maximum Solar Charge Current 150A
Maximum AC Charge Current 120A
Maximum Charge Current 150A
PHYSICAL
Dimension D*W*H(mm)Net Weight (Kgs) 145 x 438 x 553.618.4
Communication Interface USB/RS232/RS485/WiFi/Dry-contact/BTS
Support optional GFCI, Rapid shutdown, AFCI detection
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -10°C to 60°C
STANDARDCompliance Safety CE
