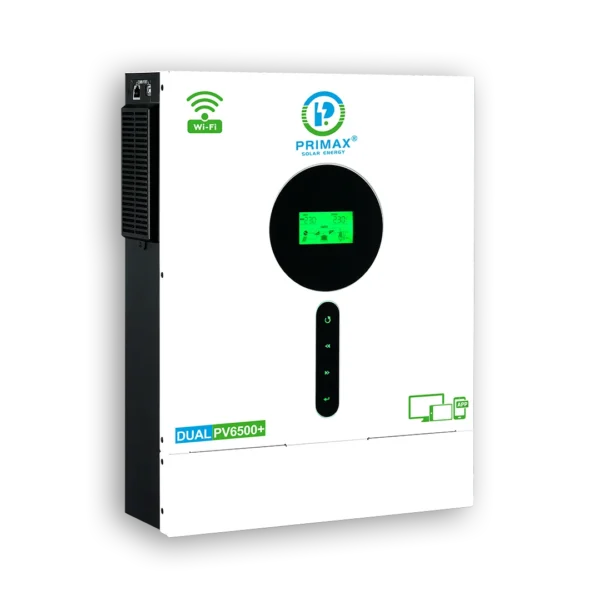

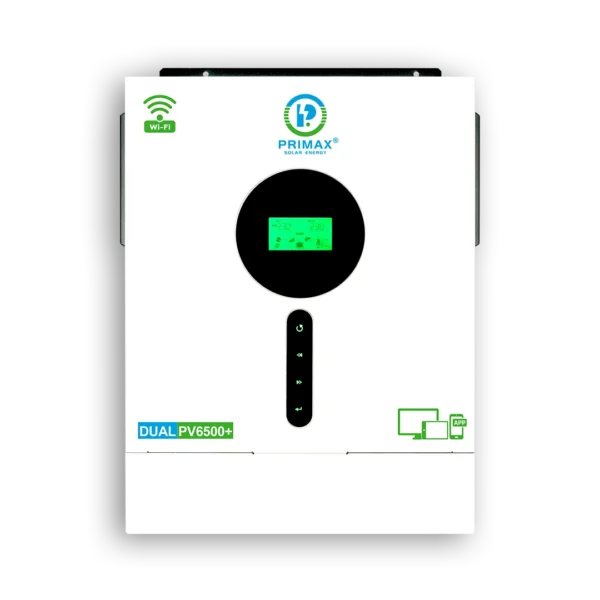

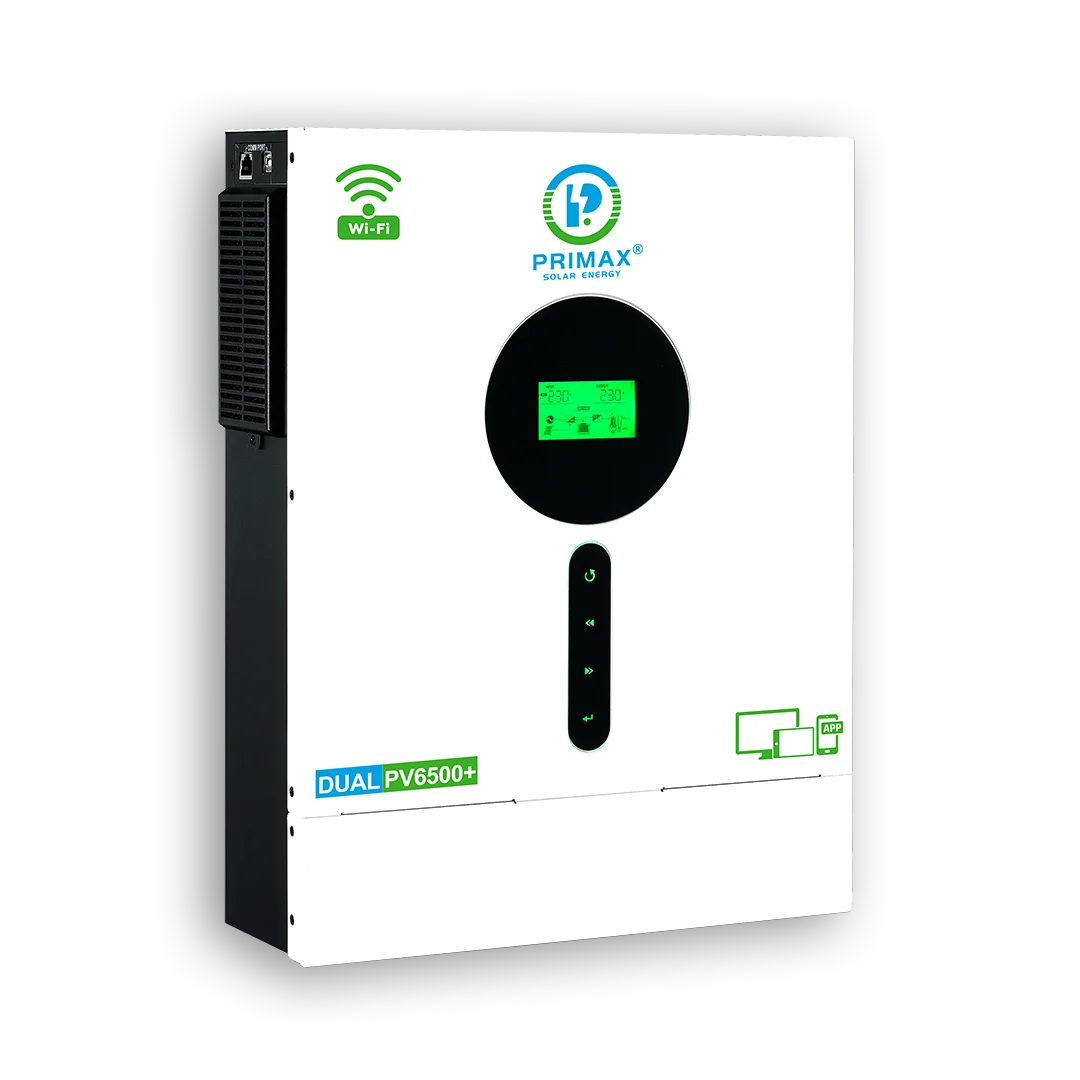

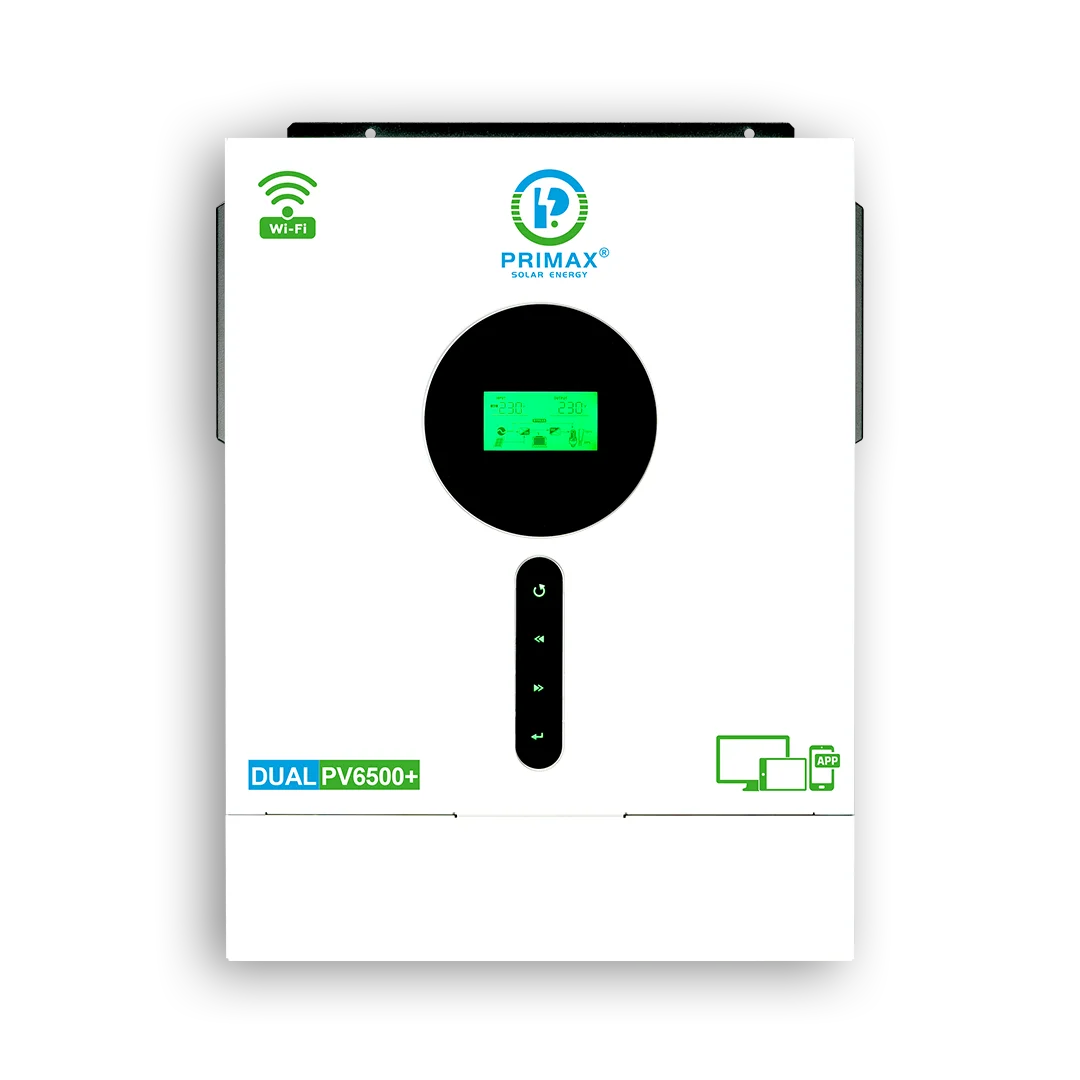

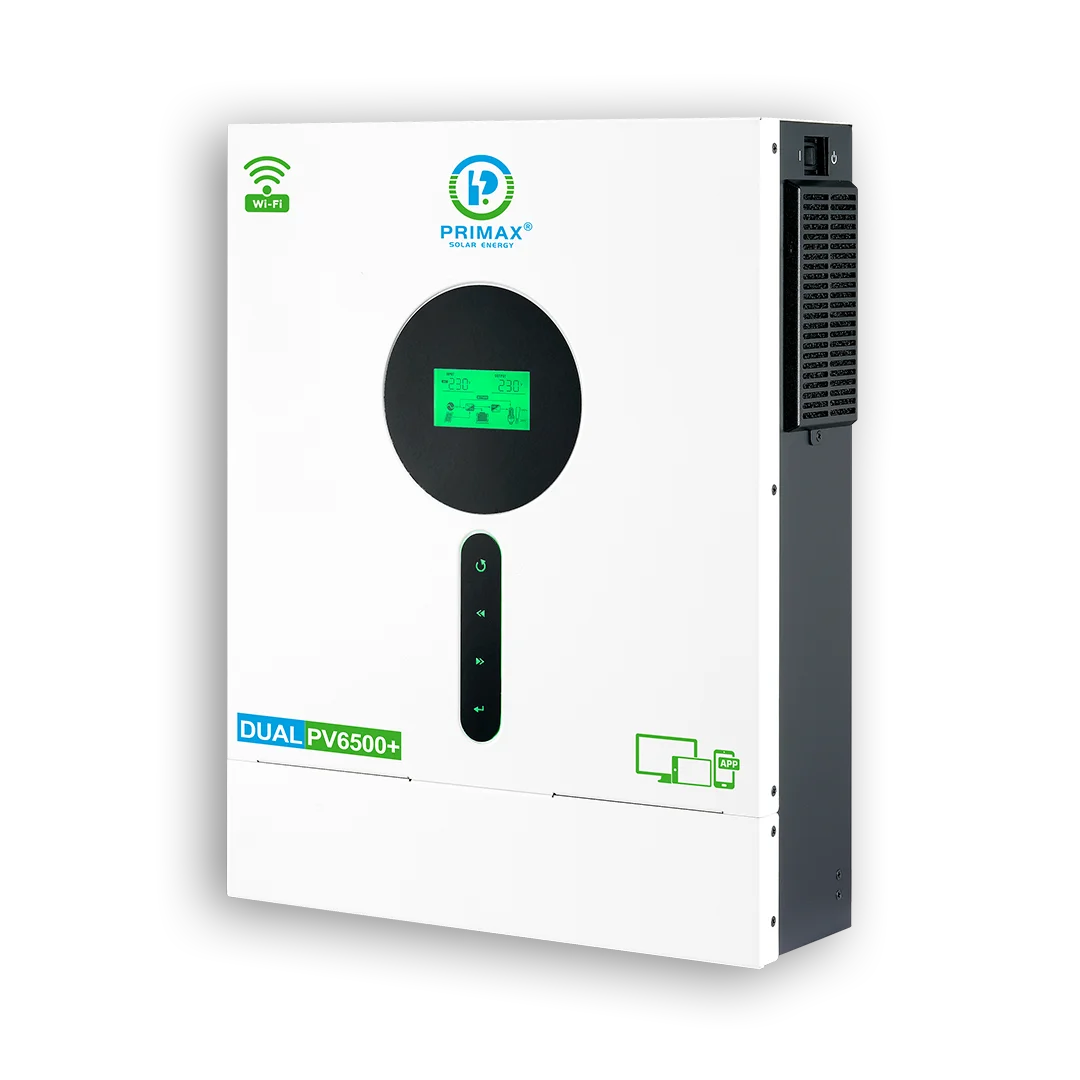

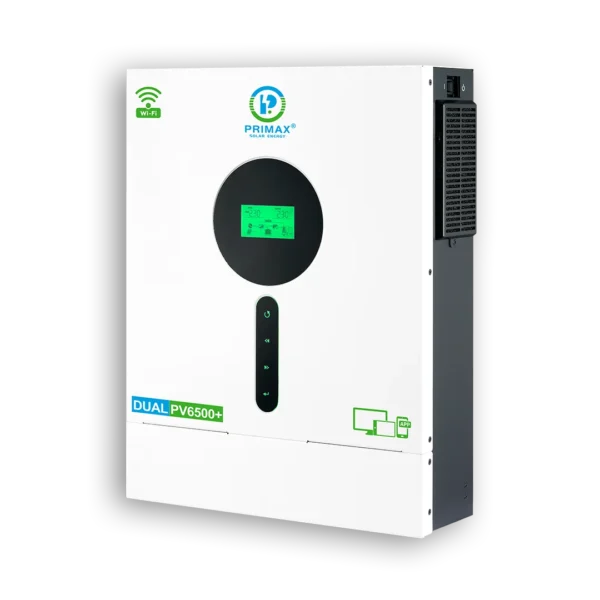

Primax Galaxy Dual PV6500+ 5.6KW Hybrid Mppt Solar Inverter
Primax Galaxy Dual PV6500+ 5.6KW Hybrid Mppt Solar Inverter - Image 2
Primax Galaxy Dual PV6500+ 5.6KW Hybrid Mppt Solar Inverter - Image 3
Primax Galaxy Dual PV6500+ 5.6KW Hybrid Mppt Solar Inverter - Image 4
,

Primax Galaxy Dual PV6500+ 5.6KW Hybrid Mppt Solar Inverter

Primax Galaxy Dual PV6500+ Inverter Features

  • Dual Output for Smart Load Management
    Efficiently distributes power between critical and non-critical loads for optimized energy use.
  • Maximum PV Input Current: 27A
    Handles substantial solar input for better energy harvesting.
  • Maximum PV Input Power: 6500W
    Supports high-capacity solar input for maximum energy generation.
  • Wide PV Input Voltage Range: 60VDC ~ 450VDC
    Ensures compatibility with diverse solar panel configurations.
  • Built-In WiFi for Mobile Monitoring
    Provides real-time system management via Android/iOS apps.
  • Reserved Communication Port: RS485, CAN-BUS, or RS232
    Enables seamless integration with Battery Management Systems (BMS).
  • Maximum Charging Current: 120A
    Delivers fast and efficient battery charging.
  • Battery Independent Design
    Operates efficiently with or without a battery, enhancing system flexibility.
  • Battery Equalization Function
    Improves battery performance and extends its life by preventing imbalance.
  • Built-In Anti-Dust Kit
    Protects internal components, ensuring durability in challenging environments.
  • Maximum AC Output Power: 5600W
    Provides reliable power for various off-grid applications.

₨ 198,000

Primax Galaxy Dual PV6500+ Solar Inverter

The Primax Galaxy PV6500+ is an advanced solar inverter designed to deliver superior energy management and performance for modern solar energy systems. With dual output for smart load management, it ensures efficient power distribution between critical and non-critical loads, optimizing energy usage.

Featuring a maximum PV input power of 6500W and a wide PV input voltage range of 60VDC to 450VDC, this inverter is ideal for high-capacity solar installations. Its 27A maximum PV input current enables efficient energy harvesting, ensuring maximum utilization of solar arrays.

For seamless monitoring and control, the inverter includes built-in WiFi, allowing real-time access via Android/iOS apps. The reserved communication ports (RS485, CAN-BUS, or RS232) ensure compatibility with Battery Management Systems (BMS), offering advanced integration and control.

The battery-independent design adds flexibility, allowing operation with or without batteries. For systems with batteries, the 120A maximum charging current provides rapid energy storage, while the battery equalization function optimizes performance and extends the battery life cycle.

Designed for durability, the inverter features a built-in anti-dust kit, protecting its internal components for reliable performance in challenging environments. With a maximum AC output of 5600W, the Primax Galaxy PV6500+ delivers robust power for diverse off-grid applications.

Categories: , Tags: , , , , , , , , , , , , , , , , , , , , ,
RATED POWER 5600VA/5600W
INPUT
Voltage 230VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50Hz/60Hz(Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC+-10%
Surge Power 11200VA
Efficiency (Peak) 93%
Transfer Time 10ms (For Personal Computers)

20ms (For Home Appliances)
Waveform Pure Sine Wave
BATTERY
Battery Voltage 48VDC
Floating Charge Voltage 54VDC
Overcharge Protection 63VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type MPPT
Maximum PV Array Open Circuit Voltage 500VDC
Maximum PV Array Power 6500W
MPPT Range@ Operating Voltage

Maximum PV Input Current

 60 ~ 450 VDC

27A
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Maximum Charge Current 120A
PHYSICAL
Dimension D*W*H(mm)

Net Weight (Kgs)

 107 x 322.6 x 420.3

10.5
Communication Interface USB/RS232
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10°C to 50°C
Storage Temperature -10°C to 60°C
