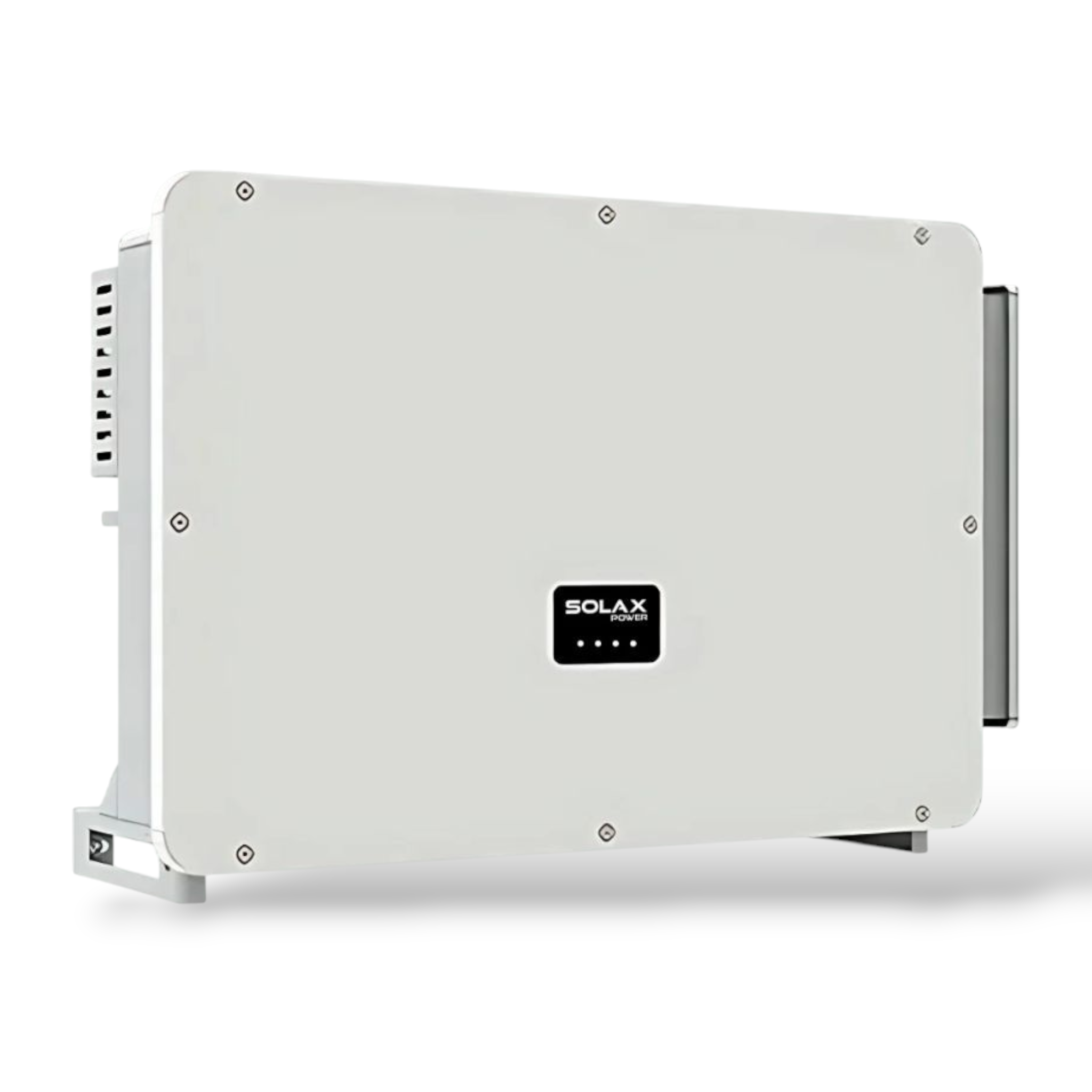

Solax 110kW Three-Phase On-Grid X3-MEGA G2 IP66 Solar Inverter

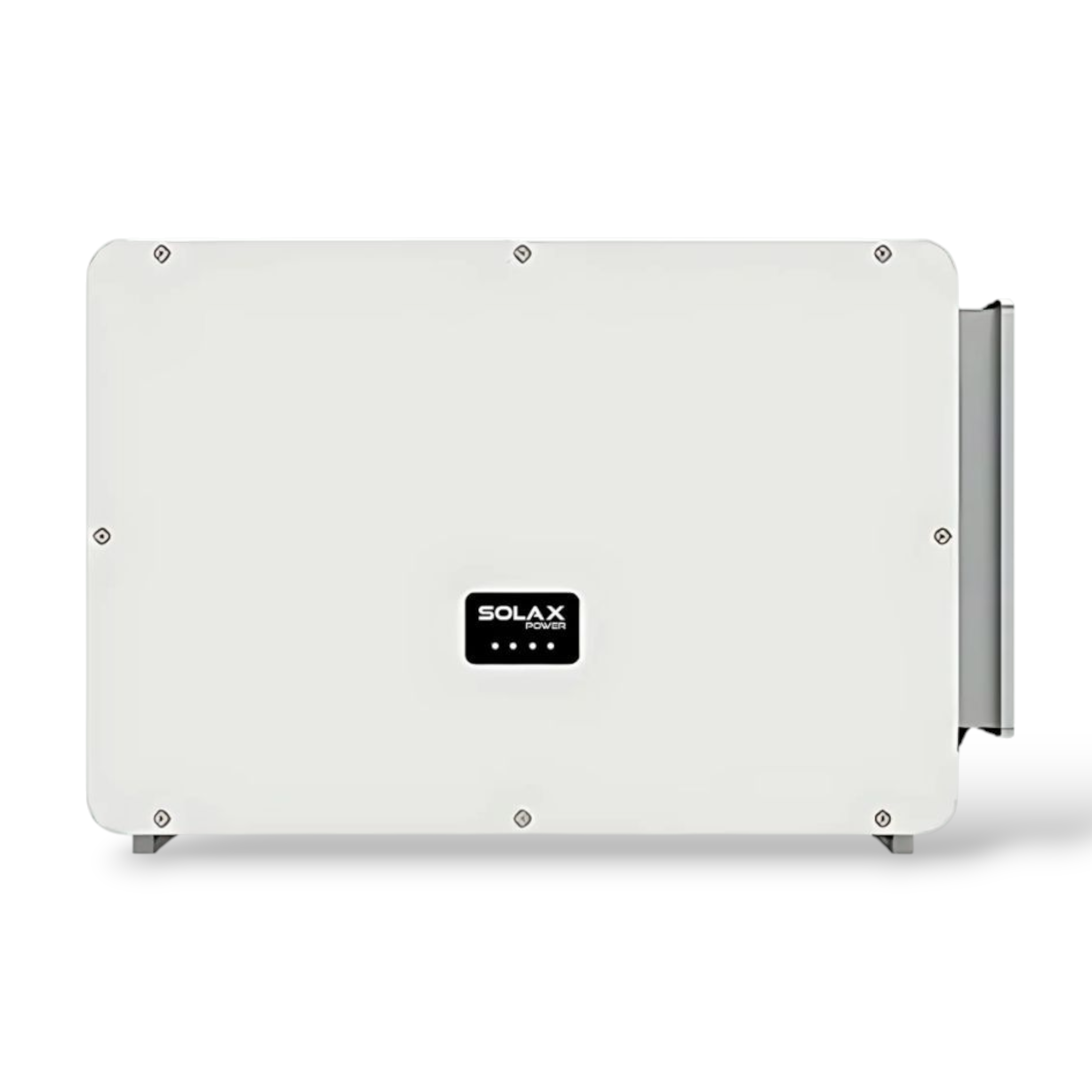

Solax 110kW Three-Phase On-Grid X3-MEGA G2 IP66 Solar Inverter - Image 2

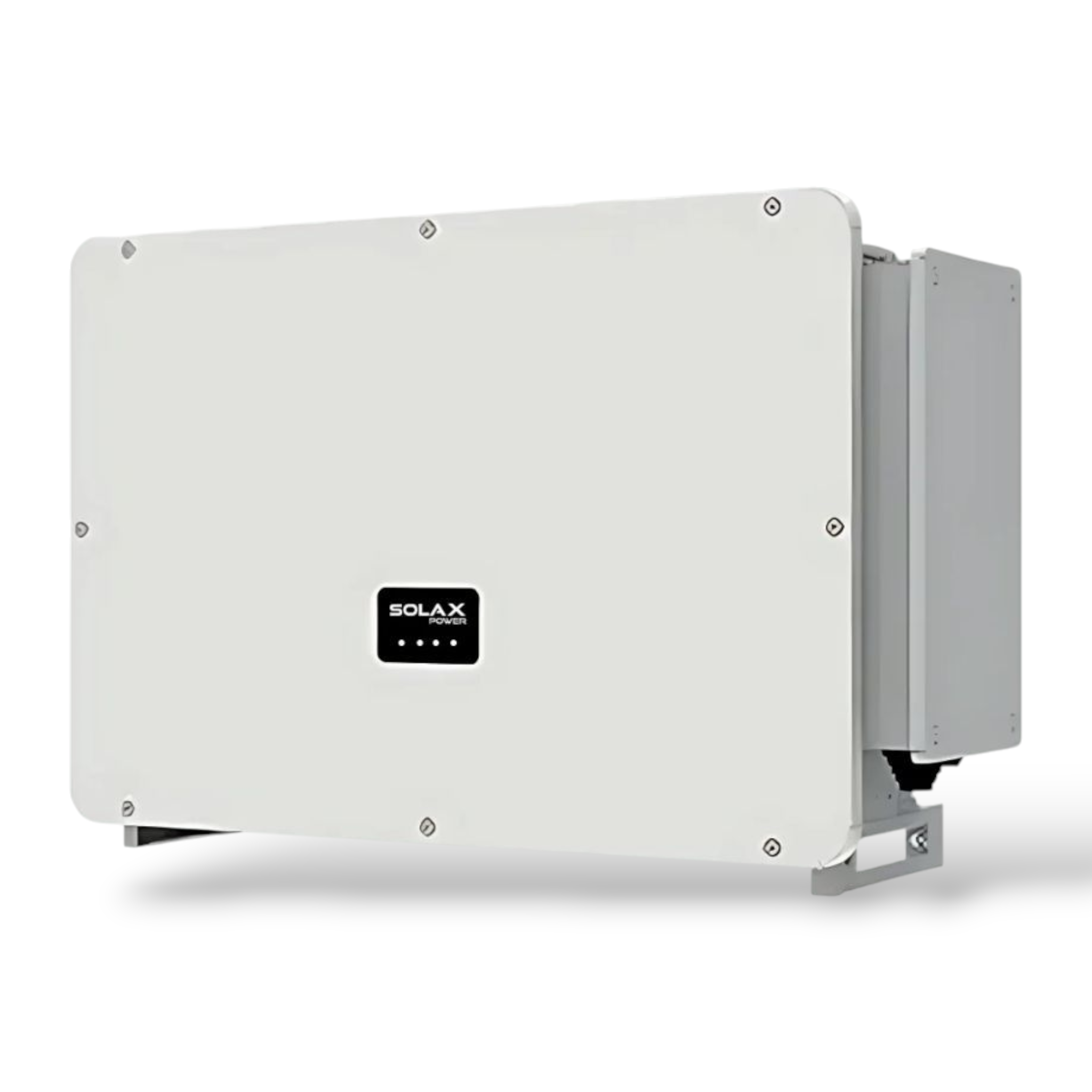

Solax 110kW Three-Phase On-Grid X3-MEGA G2 IP66 Solar Inverter - Image 3
,

Solax 110kW Three-Phase On-Grid X3-MEGA G2 IP66 Solar Inverter

Solax 110kW Three-Phase On-Grid Inverter Features

  • Ultra-High Efficiency
    Achieves up to 99% maximum efficiency, ensuring optimal energy conversion and minimal losses.

  • Flexible PV and Output Capability
    Supports 150% PV oversizing and 110% AC output overloading, enabling design flexibility and maximizing energy yield.

  • Advanced MPPT Configuration
    Equipped with up to 12 MPPT trackers, each handling 2 strings with a maximum of 32 A per tracker, optimizing solar input across varied layouts.

  • Wide MPPT Voltage Range
    Operates across a broad 180–1000 V DC range, compatible with diverse PV array configurations.

  • High PV Array Input Support
    Designed to support up to 165 kWp of solar input for the 110 kW model.

  • Durable Outdoor Protection
    Rated IP66, fully dust-tight and protected against heavy water jets — ideal for challenging outdoor installations.

  • Comprehensive Safety Systems
    Incorporates Type II SPDs on both AC and DC sides, optional AFCI (Arc-Fault Circuit Interrupter), AC terminal temperature detection, string current monitoring, and 24-hour operational monitoring.

  • Smart Energy Management & Diagnostics
    Features built-in export power control, remote configuration and firmware upgrades, 24/7 monitoring, I-V curve diagnostics, night-time reactive power compensation, and optional aluminum AC cable connection.

  • Smart Thermal and Structural Design
    Utilizes smart air cooling to extend fan lifespan and improved heat dissipation, resulting in a design that is over 5% lighter and more compact than comparable systems.

  • Compact Build for High Power
    Shares a sleek and practical chassis: 985 × 660 × 327.5 mm, weighing approximately 83 kg, ensuring easier installation and maintenance.

₨ 0

Solax 110kW Three-Phase On-Grid X3-MEGA G2 IP66 Solar Inverter

The Solax X3-FORTH 110kW is a next-generation high-capacity three-phase on-grid solar inverter, purpose-built for large-scale commercial and industrial solar projects. Engineered with advanced inverter technology, it delivers maximum efficiency of up to 99%, ensuring optimal power conversion and higher energy yields even under demanding conditions.

Designed with up to 12 MPPT trackers and a wide 180–1000V DC input range, the inverter provides exceptional flexibility for complex PV array designs, guaranteeing stable performance across diverse solar installations. Its support for 150% PV oversizing and 110% AC output overloading maximizes return on investment by capturing more solar energy.

The X3-FORTH prioritizes safety and reliability with built-in Type II surge protection (AC & DC), arc-fault detection (AFCI option), string current monitoring, and AC terminal temperature detection. Its IP66-rated enclosure makes it fully weatherproof and dustproof, ideal for outdoor installations in harsh environments.

Beyond hardware, the inverter is equipped with intelligent energy management features, including export power control, remote monitoring, firmware upgrades, I-V curve diagnosis, and night-time reactive power compensation. A smart cooling system ensures efficient heat dissipation, extending component lifespan while maintaining a compact and lightweight design (83kg) for easier handling.

With its blend of high efficiency, robust safety, smart energy management, and durable construction, the Solax X3-FORTH 110kW sets a new benchmark for reliability and performance in utility-scale solar power generation.

Categories: , Tags: , , , , , , , , , , , , , , , , , , ,

DC Input

Max. PV array input power [kWp]
 165
Max. PV input voltage [V]
 1100
Nominal input voltage [V]*
 580/600
Startup voltage [V]
 200
MPP tracker voltage range [V]
 180-1000
No. of MPP trackers
 9
Strings per MPP tracker
 2
Max. PV input current per MPPT [A]
 32
Isc PV Array Short Circuit current per MPPT [A]
 46

AC Output

Rated AC output power [kW]
 110
Rated AC output current [A]*
 166.7/159.5
Max. AC output apparent power [kVA]
 121
Max. AC output current [A]*
 183.4/175.4
Nominal AC voltage [V]
 220/380, 230/400, 3/N/PE, 3/PE
AC voltage range [V]**
 304 ~ 480
Nominal AC frequency/AC frequency range [Hz]**
 50/60; ±5
THDi (Rated power) [%]
 <3
Power Factor range
 0.8 leading ~ 0.8 lagging

System Data

MPPT efficiency [%]
 99.9
Max. efficiency [%]
 98.6
Ingress protection
 IP66
Operating ambient temperature range [°C]
 -30~+60 (Derating above 45)
Max. operation altitude [m]
 4000 (Derating above 3000)
Relative humidity [%]
 0~100
Dimensions [W×H×D] [mm]
 985×660×327.5
Weight [kg]
 83
Cooling concept
 Smart fan cooling
Communication interfaces
 RS485 / USB / DRM / PLC(Optional)
Optional monitoring dongle
 Pocket WiFi/LAN/4G
Display
 LCD(16×2, optional)/LEDx4

Protection

Over/under voltage protection
 YES
DC isolation protection
 YES
Grid monitoring
 YES
DC injection monitoring
 YES
Residual current detection
 YES
Anti-islanding protection
 YES
String fault detection
 YES
SPD (DC/AC)
 Type II / Type II
Arc-fault circuit interrupter(AFCI)
 Optional
AC terminals over temperature detection
 YES
AC auxiliary power supply(APS)
 Optional
Power line communication(PLC)
 Optional
