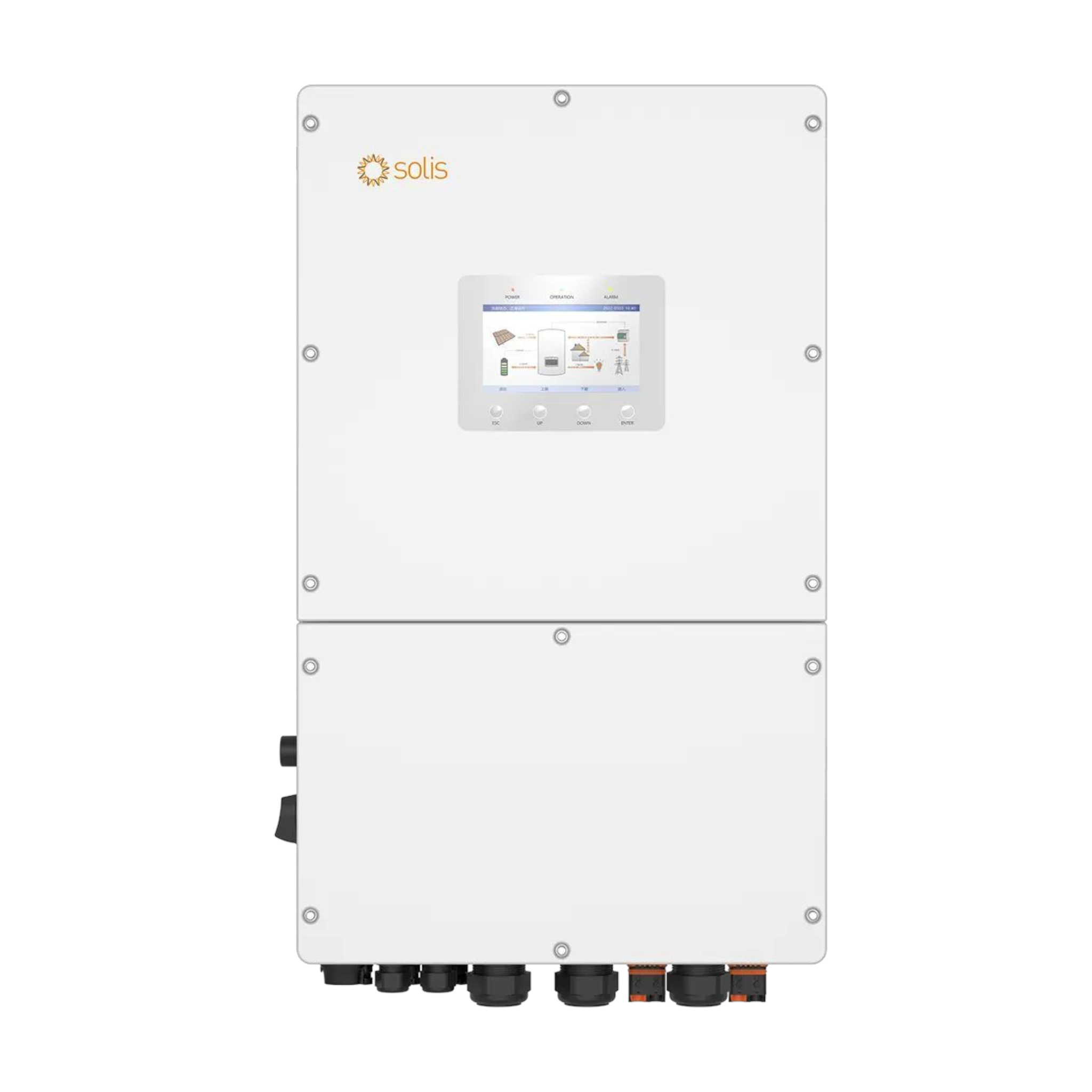

Solis 50KW HV Hybrid Three Phase Solar Inverter

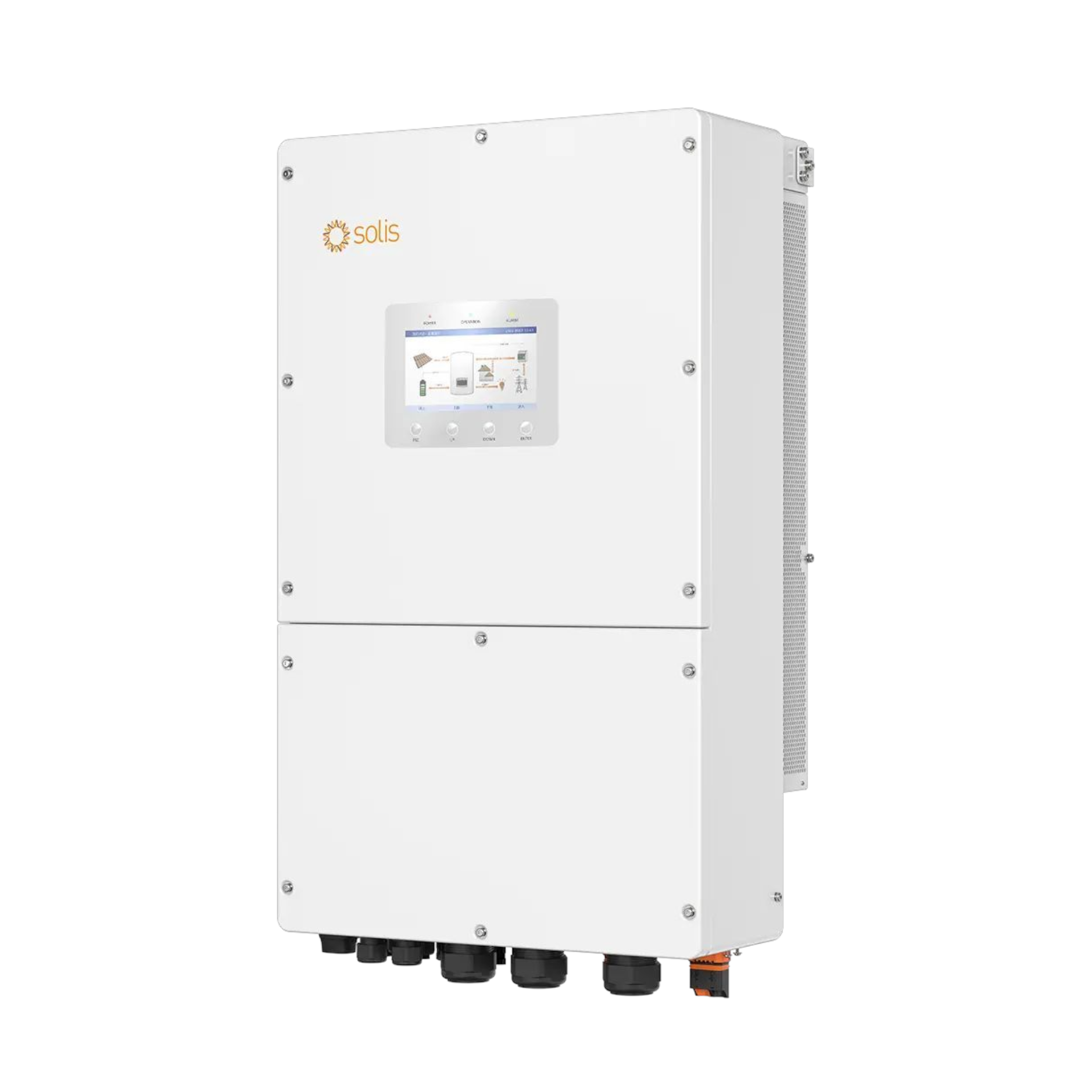

Solis 50KW HV Hybrid Three Phase Solar Inverter - Image 2

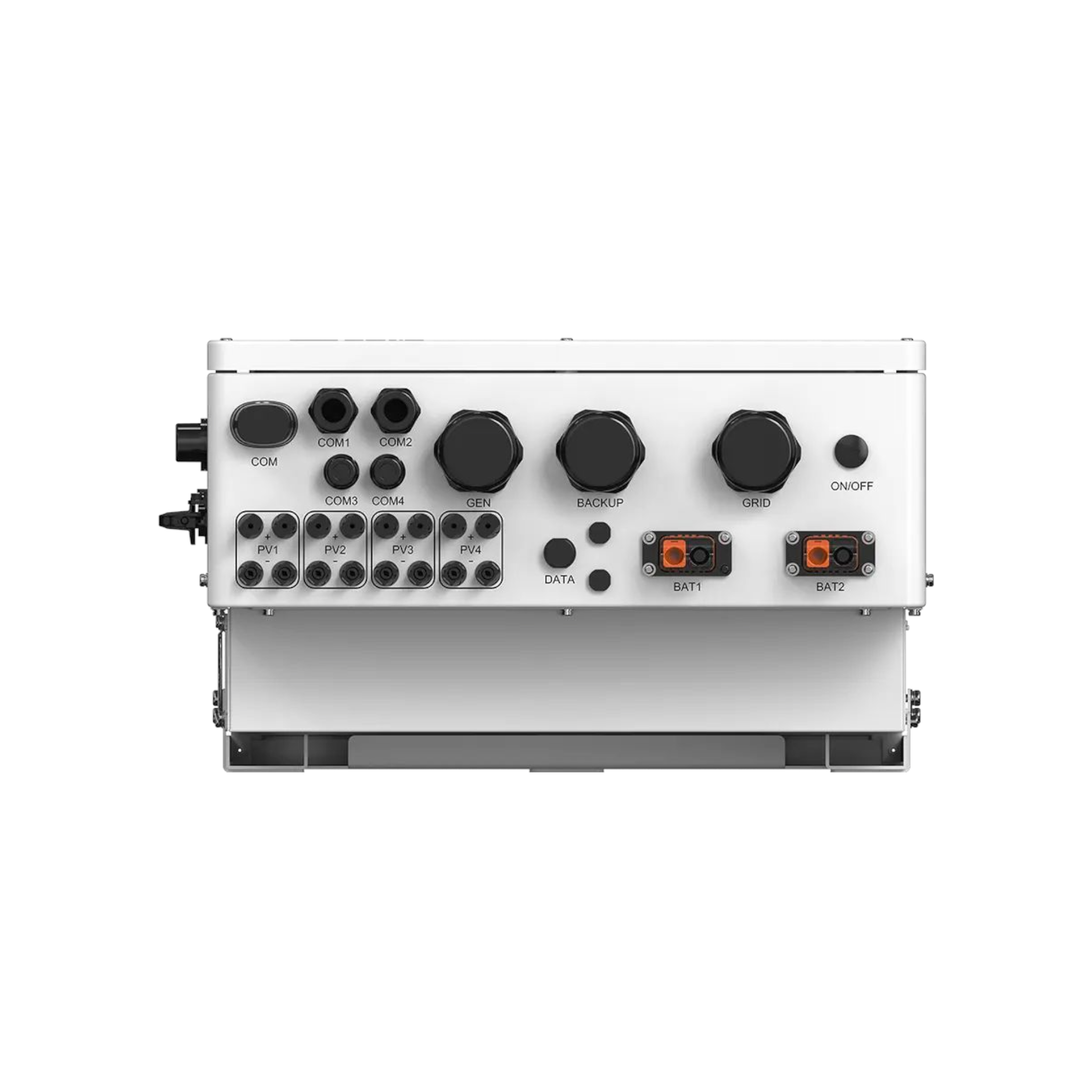

Solis 50KW HV Hybrid Three Phase Solar Inverter - Image 3

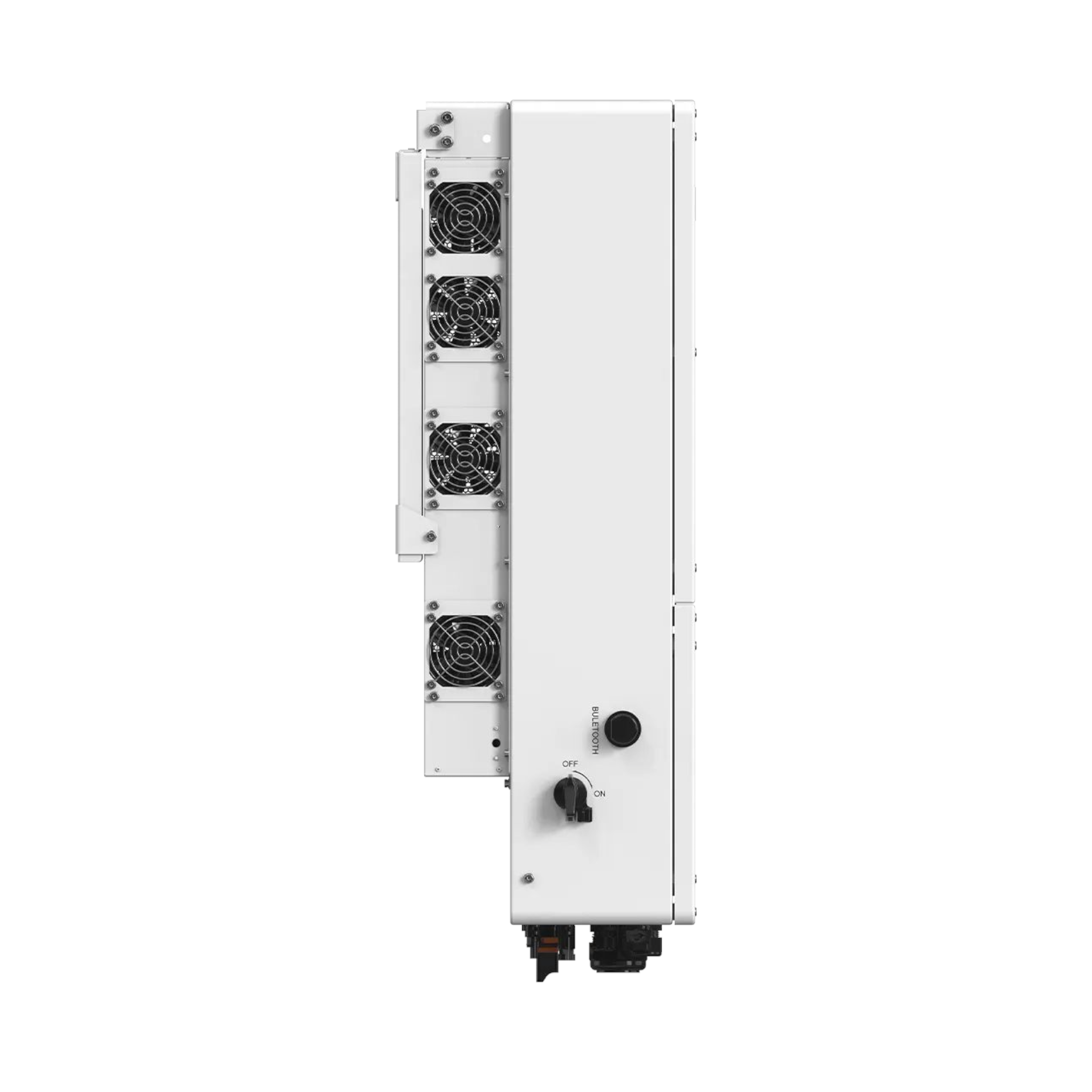

Solis 50KW HV Hybrid Three Phase Solar Inverter - Image 4
,

Solis 50KW HV Hybrid Three Phase Solar Inverter

Solis 50KW HV Hybrid Three Phase Inverter Features

  • High Power Output: Delivers 50,000 W of three-phase AC power, suitable for large commercial installations.

  • High Voltage Battery Compatibility: Supports high-voltage lithium batteries (160–600 V), allowing for efficient energy storage and discharge.

  • Multiple MPPTs: Equipped with 4 MPPTs, each supporting up to 20 A input current, enabling flexible and efficient PV array configurations.

  • Wide PV Input Voltage Range: Operates within a voltage range of 180 V to 1,000 V, accommodating various PV system designs.

  • High Efficiency: Achieves a maximum efficiency of 97.8%, ensuring optimal energy conversion.

  • Advanced Energy Management: Features peak shaving control in both “self-use” and “generator” modes, and supports unbalanced and half-wave loads on both grid and backup ports.

  • Robust Protection Features: Includes Type II surge protection for both DC and AC, integrated DC switch, and AFCI (Arc Fault Circuit Interrupter) for enhanced safety.

  • Scalability: Supports parallel operation of up to 6 units, allowing for system expansion up to 300 kW.

  • Rapid UPS Transfer: Offers a UPS transfer time of less than 10 milliseconds, ensuring uninterrupted power supply to critical loads.

  • Remote Monitoring and Control: Provides real-time battery monitoring, remote firmware upgrades, and battery healing functions to prolong battery life.

₨ 1,550,000

Solis 50KW HV Hybrid Three Phase Solar Inverter

The Solis S6-EH3P50K-H is a high-performance hybrid inverter designed for large-scale commercial and industrial solar-plus-storage systems. It supports high-voltage lithium battery integration, enabling efficient energy storage and management. With four Maximum Power Point Trackers (MPPTs), it offers flexible PV array configurations and maximizes energy harvest. The inverter’s robust design ensures reliable operation in various environments, making it an ideal choice for applications requiring high power output and advanced energy management.

Categories: , Tags: , , , , , , ,
Parameter Specification
Model S6-EH3P50K-H
Rated AC Output Power 50,000 W
Max. DC Input Power 100,000 W
Max. PV Input Voltage 1,000 V
MPPT Voltage Range 180 V – 850 V
Number of MPPTs 4
Max. Input Current per MPPT 20 A
Max. DC Input Current 160 A
Battery Voltage Range 160 V – 600 V
Max. Battery Charge/Discharge 140 A (70 A + 70 A across two ports)
Surge AC Power (1 Second) 80,000 W
UPS Transfer Time <10 ms
Efficiency (Max.) 97.8%
Euro Efficiency 97.4%
Protection Degree IP66
Cooling Method Fan
Dimensions (W x H x D) 530 x 880 x 290 mm
Weight 73 kg
Communication Interfaces RS485, CAN, Wi-Fi, Ethernet
Display LCD
Operating Temperature Range -25°C to +60°C
Altitude Up to 4,000 m
Warranty 5 years (extendable to 10 or 15 years)
