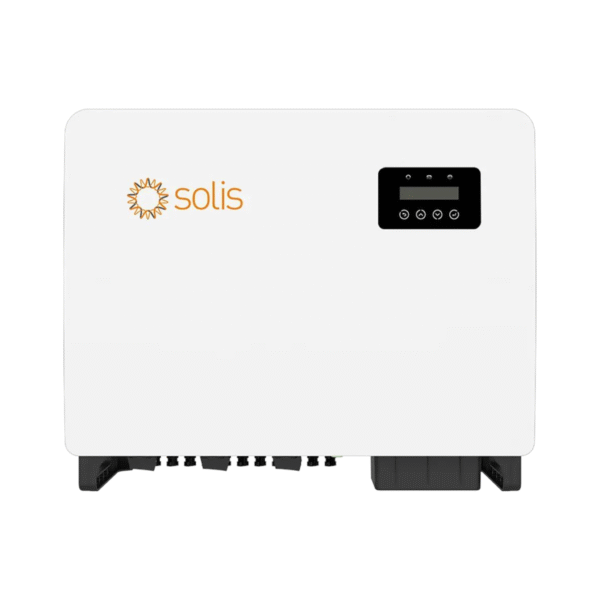

Solis 60kw On-Grid Solar Inverter

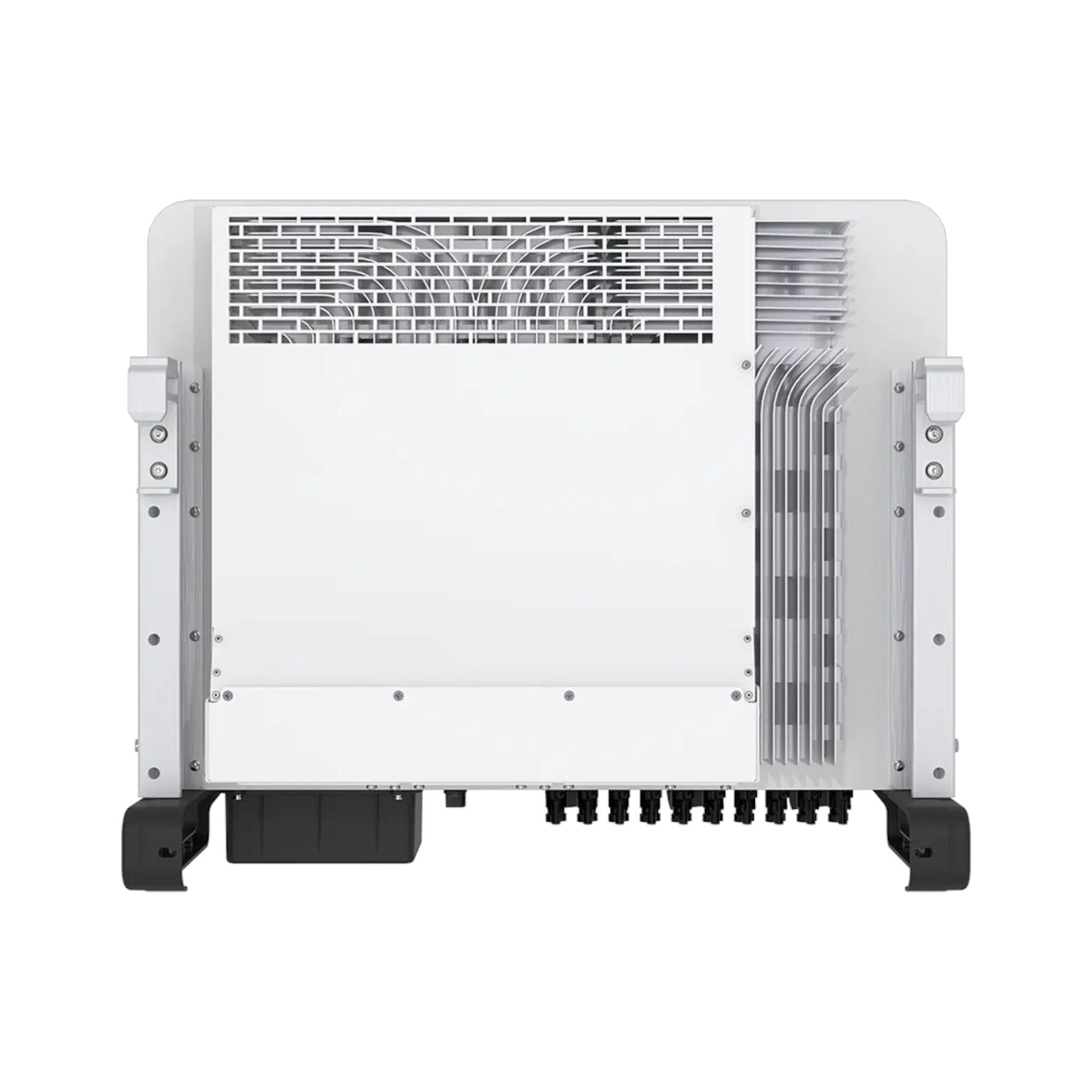

Solis 60kw On-Grid Solar Inverter - Image 2

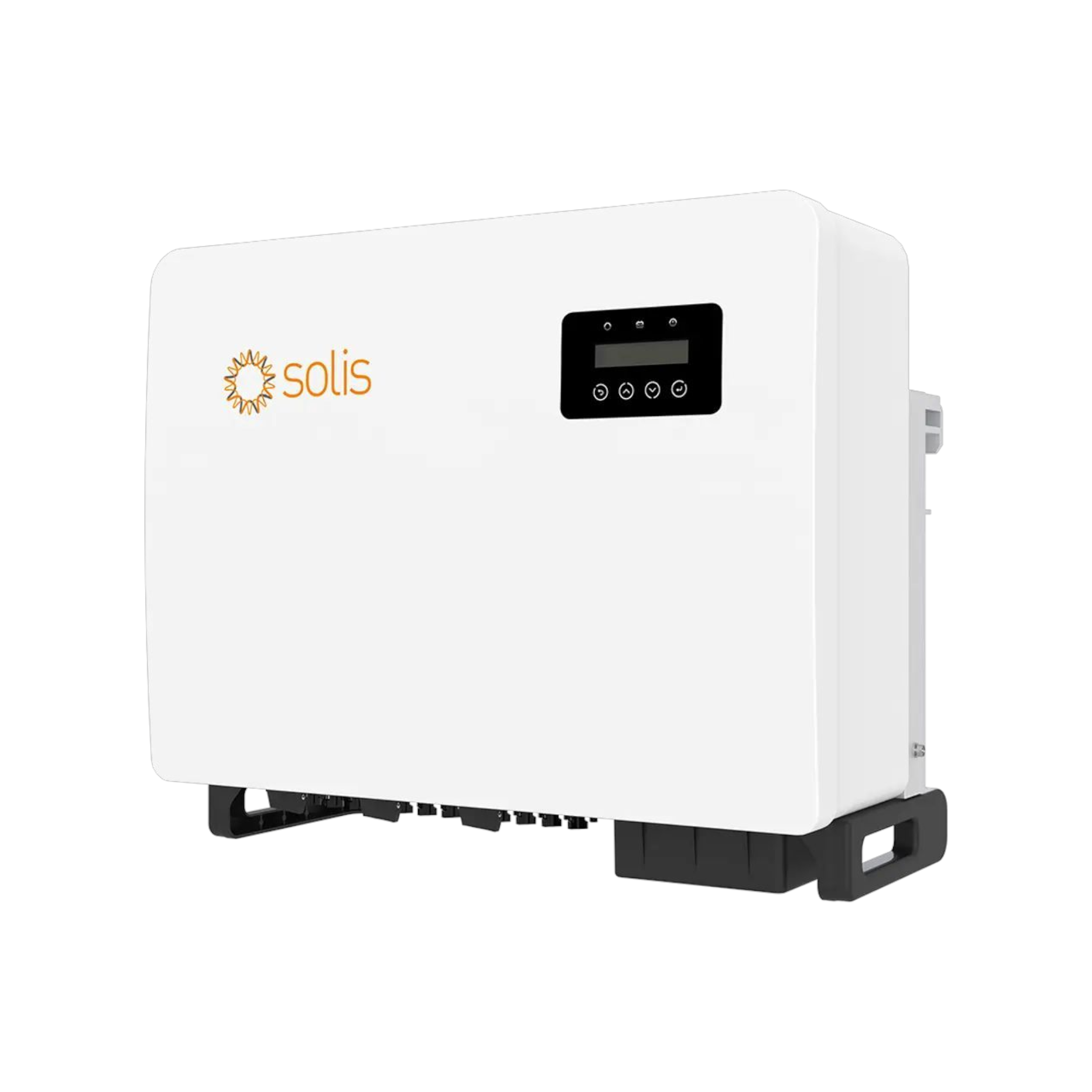

Solis 60kw On-Grid Solar Inverter - Image 3

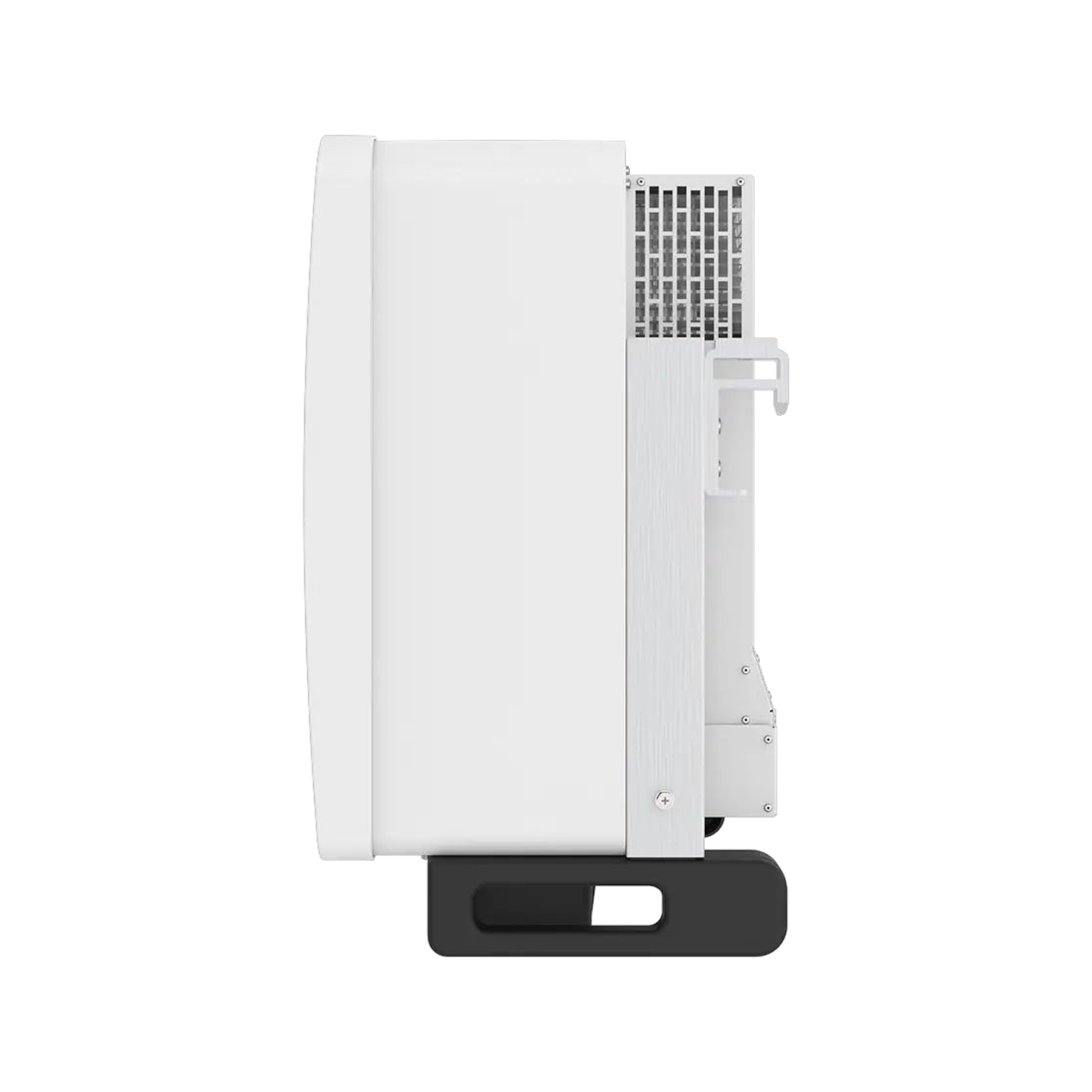

Solis 60kw On-Grid Solar Inverter - Image 4
,

Solis 60kw On-Grid Solar Inverter

Solis 60kw On-Grid Inverter Features

  • High Efficiency: Achieves up to 98.7% maximum efficiency, ensuring optimal energy harvest.

  • 6 MPPT Design: Offers flexibility in system design and minimizes power loss due to shading or module mismatch.

  • Wide MPPT Voltage Range: Operates efficiently within a 200V to 1000V range, with a low start-up voltage of 195V.

  • High PV Input Capacity: Supports up to 90,000W of PV input power, accommodating large-scale installations.

  • Robust Protection Features: Includes Type II surge protection for both DC and AC, AFCI (Arc Fault Circuit Interrupter), and DC reverse polarity protection.

  • Intelligent Monitoring: Features smart I-V curve diagnosis and supports RS485, Wi-Fi, and GPRS communication for real-time monitoring.

  • Durable Construction: IP66-rated enclosure with C5 anti-corrosion level, suitable for outdoor installations in harsh environments.

  • Integrated DC Switch: Allows for safe and convenient maintenance operations.

₨ 695,000

Solis 60kw On-Grid Solar Inverter

The Solis S5-GC60K is a high-performance, three-phase grid-tied inverter designed for large-scale commercial and industrial solar installations. With a maximum efficiency of 98.7% and a 6 MPPT design, it ensures optimized energy conversion and flexibility in system configuration. Its robust construction, advanced protection features, and intelligent monitoring capabilities make it a reliable choice for demanding solar projects.

Categories: , Tags: , , , , , ,
Parameter Specification
Model S5-GC60K
Max. PV Input Power 90,000 W
Max. DC Input Voltage 1100 V
MPPT Voltage Range 200 V – 1000 V
Start-up Voltage 195 V
Number of MPPTs / Strings 6 MPPTs / 12 Strings
Max. Input Current per MPPT 32 A
Max. Short Circuit Current per MPPT 50 A
Rated AC Output Power 60,000 W
Max. AC Output Power 66,000 VA
Rated Output Voltage 3/N/PE, 230/400 V
Rated Output Current 91.2 A / 86.6 A
Max. Output Current 100.3 A
Grid Frequency 50 / 60 Hz
Power Factor

0.99 (Adjustable from 0.8 leading to 0.8 lagging)
Total Harmonic Distortion (THDi) <3%
Max. Efficiency 98.7%
European Efficiency 98.3%
Cooling Method Intelligent redundant fan cooling
Protection Rating IP66
Operating Temperature Range -25°C to +60°C
Max. Operating Altitude 4000 m
Dimensions (W × H × D) 691 mm × 578 mm × 338 mm
Weight 54.5 kg
Communication Interfaces RS485, Wi-Fi, GPRS (optional)
Display LCD with capacitive touch buttons
Certifications IEC 62109-1/-2, IEC 62116, IEC 61000-6-1/-2/-3/-4, VDE-AR-N 4105, G98, G99, EN 50549-1/-2
