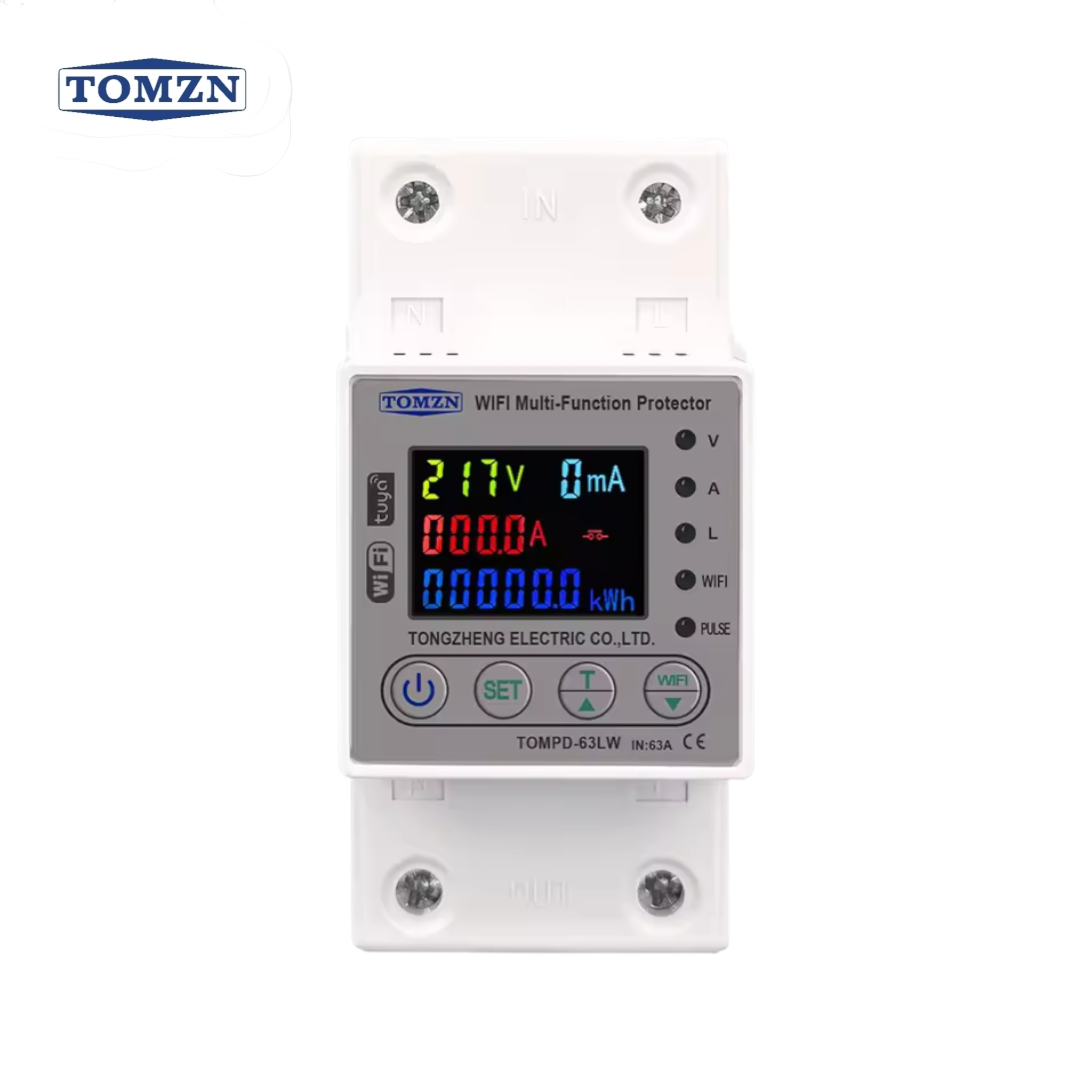

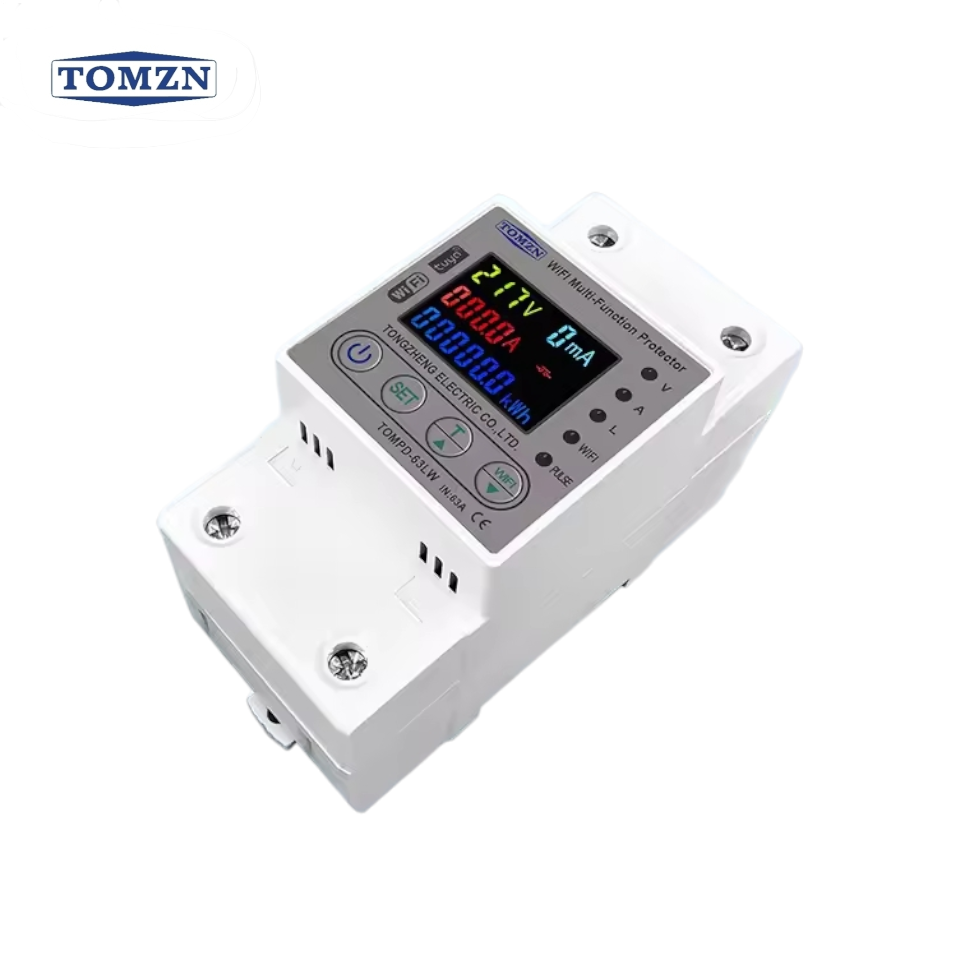

TOMZN 10 IN 1 WIFI Smart Circuit Breaker With Voltage Current and Leakage-TOMPD-63LW
TOMZN 10 IN 1Smart Circuit Breaker Features
-
10-in-1 Smart Protection & Monitoring – Monitors voltage, current, leakage current, total kWh (energy) and protects your circuit.
-
WiFi Connectivity & App Control – Connects to your home Wi-Fi (2.4 GHz) and lets you remote ON/OFF control, monitor and adjust settings from the Smart Life / TUYA app on iOS/Android.
-
Adjustable Protection Settings – Set thresholds for over-voltage, under-voltage, over-current, and leakage current via the app or manually.
-
Voltage & Current Monitoring – Real-time display and tracking of line voltage and current in the app.
-
Leakage Current Protection – Detects leakage and cuts power to enhance electrical safety.
-
Energy Consumption Tracking – Shows total kWh usage so you can monitor and manage power consumption.
-
Scheduled Control & Timer – Create schedules to automate ON/OFF times for your circuits via the app.
-
Automatic Reconnection with Delay – After a fault trip, it can reconnect automatically with an adjustable delay (1 s to 500 s).
-
Calibration Feature – Allows calibration for voltage, current, and kW readings for better accuracy.
-
Voice Assistant Compatible – Works with Google Assistant / Alexa for hands-free control (where supported).
-
DIN-Rail Mountable – Standard design for installation in electrical panels.
₨ 6,499
TOMZN 10 IN 1 TOMPD-63LW WIFI Smart Circuit Breaker With Voltage Current and Leakage
he TOMZN TOMPD‑63LW 10‑in‑1 WiFi Smart Circuit Breaker is advanced smart protection device that combines circuit control and multi‑function electrical safety with real‑time monitoring and remote connectivity. It lets you turn circuits ON/OFF remotely via the Smart Life / TUYA app, track voltage, current, leakage current, and total energy (kWh), and set custom protection limits for over‑voltage, under‑voltage, over‑current, and leakage conditions. The breaker also supports scheduled control, automatic reconnection after faults, calibration of measurements, and integration with voice assistants (Google Assistant/Alexa) for smart home convenience. Its compact DIN‑rail design and durable build make it ideal for homes, offices, and commercial electrical panels where remote management and enhanced electrical safety are needed.
| Specification | Details |
|---|---|
| Model | TOMZN TOMPD‑63LW WiFi Smart Circuit Breaker |
| Type | 10‑in‑1 WiFi Smart Multi‑Function Protector Breaker |
| Rated Voltage | 230 V AC (~) |
| Frequency | 50 Hz / 60 Hz |
| Rated Current | Up to 63 A (adjustable) |
| Connectivity | WiFi (2.4 GHz) – via Smart Life / TUYA app |
| Remote Control | ON/OFF control from smartphone |
| Protection Functions | Over‑voltage, Under‑voltage, Over‑current, Leakage protection |
| Adjustable Protection Ranges | Under‑Voltage: 140–210 V (default ~170 V) Over‑Voltage: 225–295 V (default ~265 V) Over‑Current: 1–63 A (default ~40 A) |
| Reconnect Delay Time | 1 s–500 s (default ~30 s) |
| Action Time | 1 s–30 s (adjustable) |
| Monitoring | Real‑time voltage, current, leakage current, total kWh (energy) |
| Calibration | Voltage, Current, kW ±9.9% calibration range |
| Power Consumption | < 2 W |
| Mounting | DIN‑Rail installation |
| App Compatibility | Smart Life / TUYA (iOS & Android) |
| Voice Control | Google Assistant & Amazon Alexa support |
