TOMZN 2 IN 1 Adjustable Over & Under Voltage Protector-TOVPD1-60-EC
TOMZN 2IN1 Voltage Protector Features
-
Over-Voltage Protection – Cuts power if voltage exceeds the safe set level.
-
Under-Voltage Protection – Shuts off supply when voltage drops below the safe limit.
-
Over-Current Protection – Protects circuits from excessive current draw.
-
Automatically Recovers – Restores power once voltage/current returns to safe range.
-
Real-Time Voltage & Current Display – Built-in display shows live voltage and current.
-
Adjustable Settings – You can set over-voltage, under-voltage, and over-current thresholds.
-
Memory of Settings – Remembers your set values even after power loss.
-
DIN-Rail Mountable – Easy installation in distribution panels.
₨ 1,950 ₨ 2,550

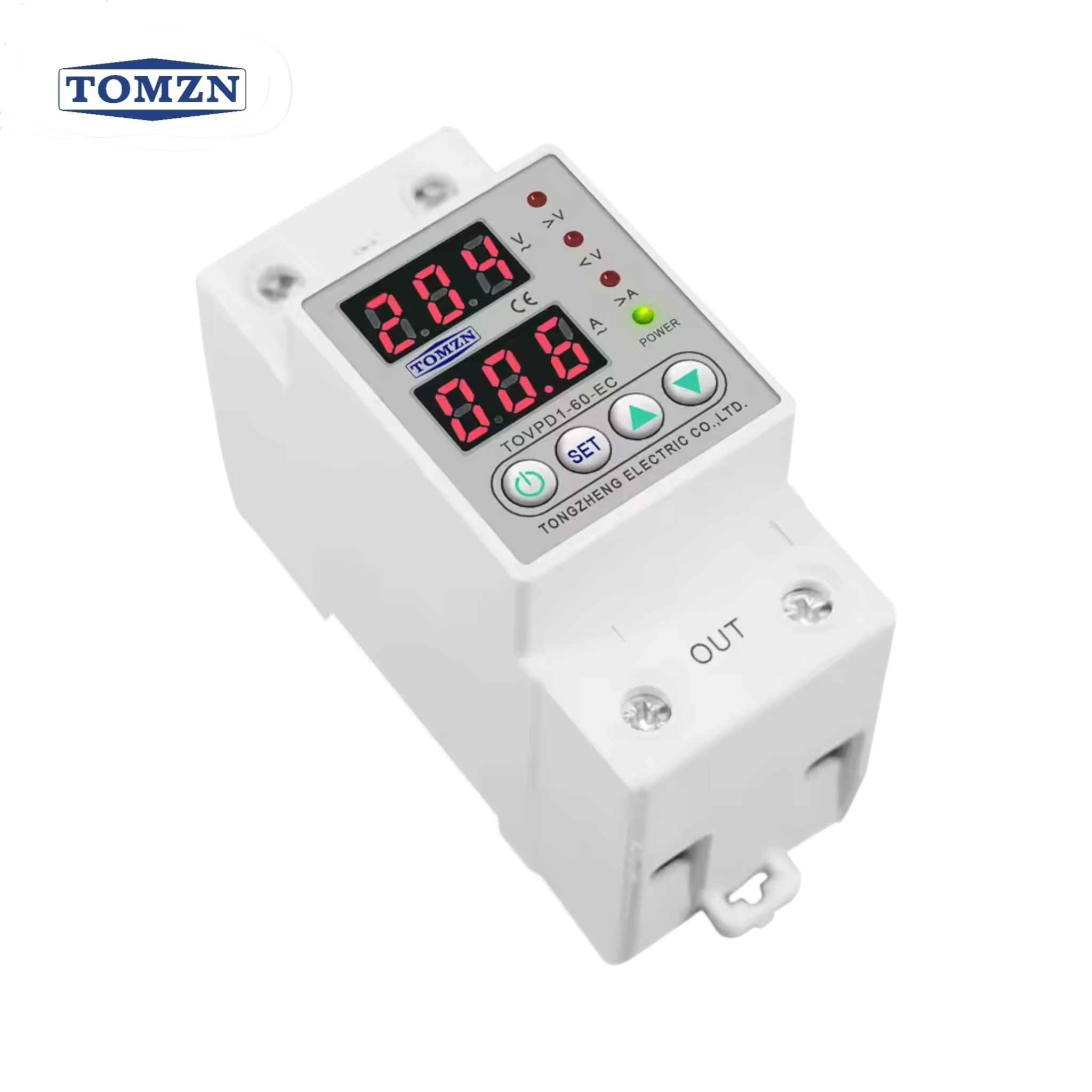

TOMZN 2IN1 Adjustable Over & Under Voltage Protector-TOVPD1-60-EC
The TOMZN TOVPD1-60-EC Adjustable Over & Under Voltage Protector is single-phase DIN-rail mounted protective relay that safeguards electrical systems and appliances by detecting abnormal voltages and currents. It provides adjustable over-voltage, under-voltage, and over-current protection, and automatically disconnects power when values go outside safe limits, then restores power once conditions normalize. The unit features real-time voltage and current display and retains your settings even after a power loss. It’s ideal for protecting home, commercial, and industrial equipment from damage due to voltage spikes, drops, and current overloads.
A13 Voltage adjustable +-9.5%
| Specification | Details |
|---|---|
| Model Number | TOVPD1-60-EC |
| Power Supply | 230 VAC, 50/60 Hz |
| Max. Loading Power / Rated Current | Adjustable 1–63 A (default: 63 A) |
| Over-Voltage Protection Range | 230 V – 300 V ~ OFF (default: 270 V) |
| Over-Voltage Recovery Range | 225 V – 295 V (default: 250 V) |
| Over-Voltage Action Time | 0.1 s – 30 s (default: 0.5 s) |
| Under-Voltage Protection Range | 140 V – 210 V ~ OFF (default: 170 V) |
| Under-Voltage Recovery Range | 145 V – 215 V (default: 190 V) |
| Under-Voltage Action Time | 0.1 s – 30 s (default: 0.5 s) |
| Over-Current Adjustment Range | 1–63 A (default: 40 A) |
| Over-Current Action Time | 0.1 s – 30 s (default: 0.5 s) |
| Delay Timers (Recovery/Action) | 1 s – 500 s (adjustable) |
| Power-On Delay Time | 1 s – 500 s (default: 10 s) |
| Power Consumption | < 2 W |
| Electric Machinery Life | ≈ 100,000 cycles |
| Installation | 35 mm DIN rail mount |
| Display/Indicators | Voltage & Current Display, LED fault indicators |
Notes:
-
This device lets you adjust over-voltage, under-voltage, and over-current settings, and automatically restores supply once conditions return to normal.
-
It uses voltage and current displays for real-time monitoring and LED indicators to show protection status.
