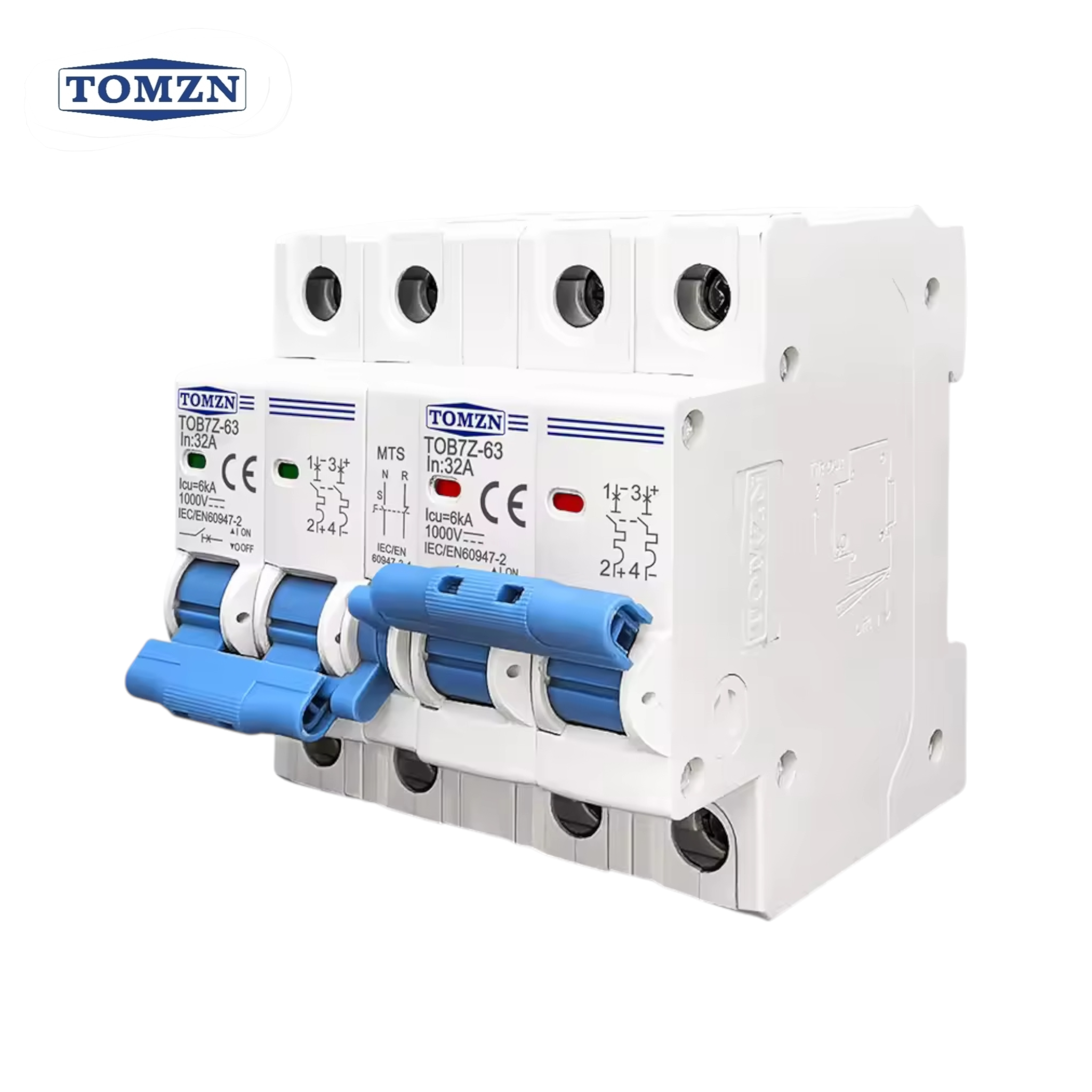

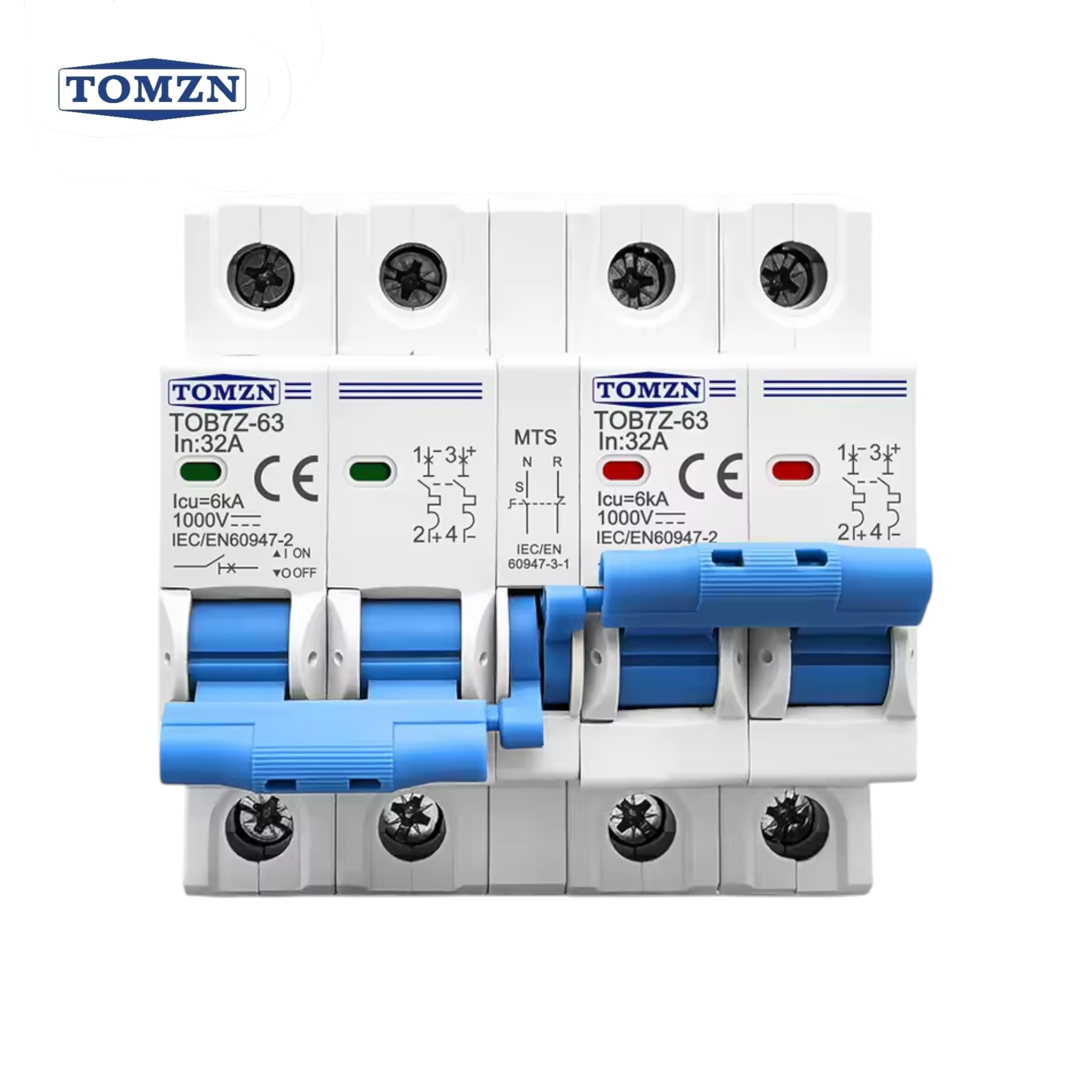

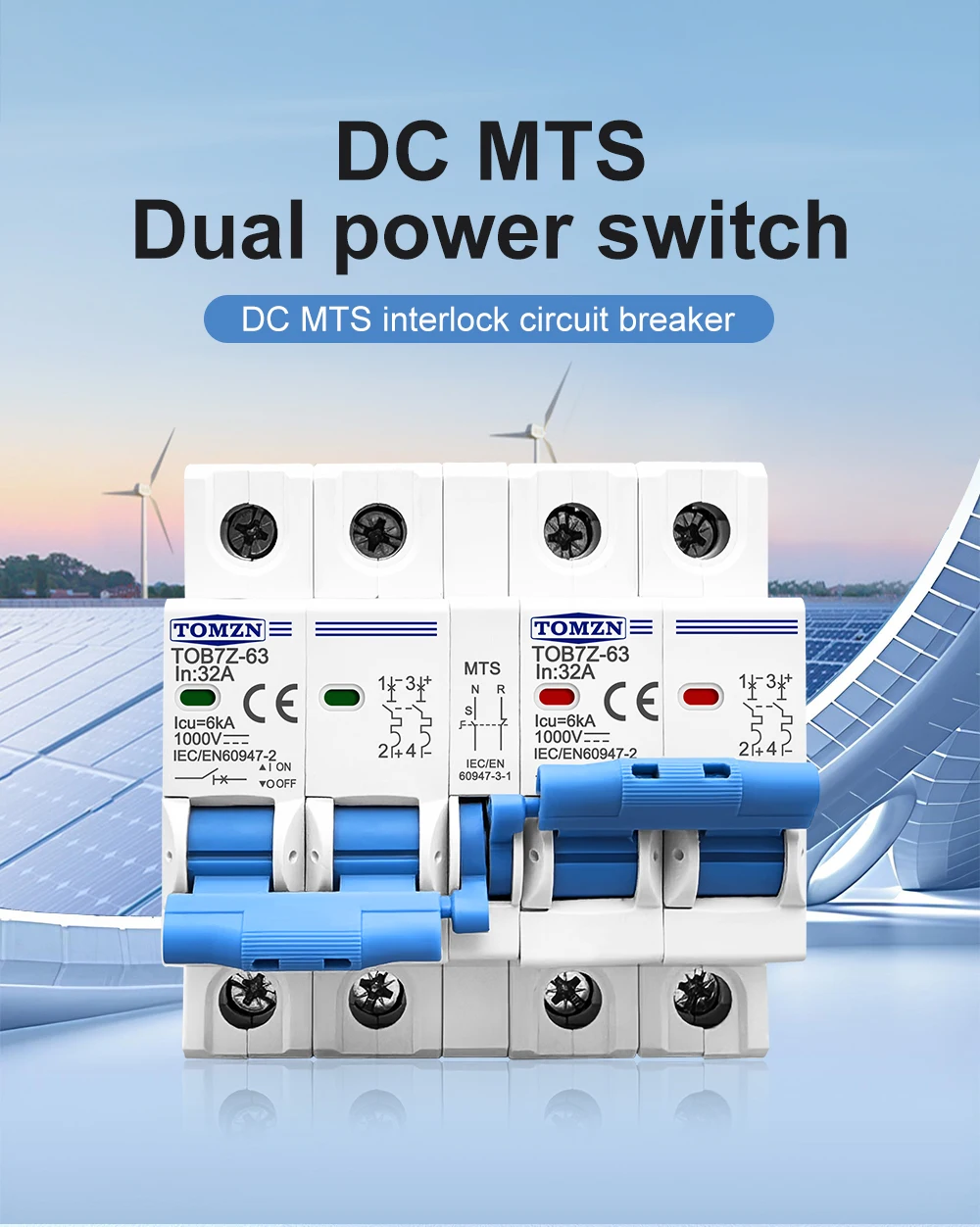

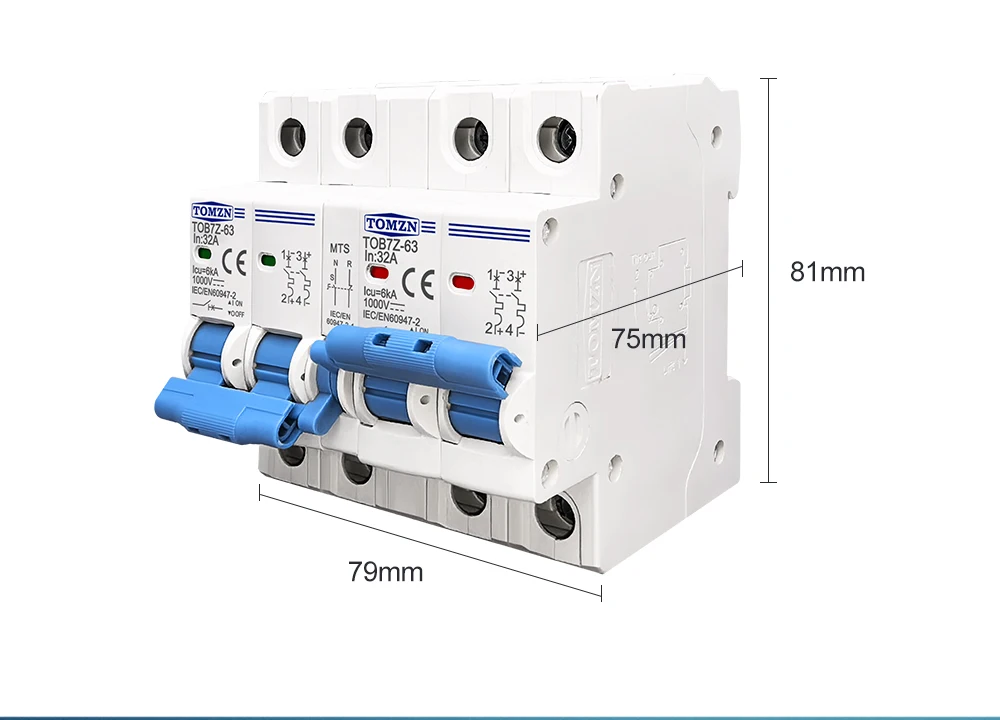

TOMZN 2P+2P MTS DC Dual Power Circuit Breaker For PV System
TOMZN 2P+2P DC MTS Breaker Features
-
2P + 2P DC Manual Transfer Switch (MTS) – Lets you manually switch between two DC power sources in a photovoltaic (PV) setup, such as a solar array and a backup battery bank.
-
Dual Power Operation – Designed for DC dual power systems to ensure continuity of power without automatic switching.
-
Rated for High DC Voltage: Supports up to 1000 V DC, meeting common PV system requirements.
-
Integrated Circuit Breaker Protection: Combines manual transfer switching with overload and short‑circuit protection in one unit.
-
2P + 2P Pole Structure: Provides full protection and switching for two separate DC sources (each 2‑pole).
-
Rated Current Options: Available (commonly) at 63 A and potentially other ratings depending on model.
-

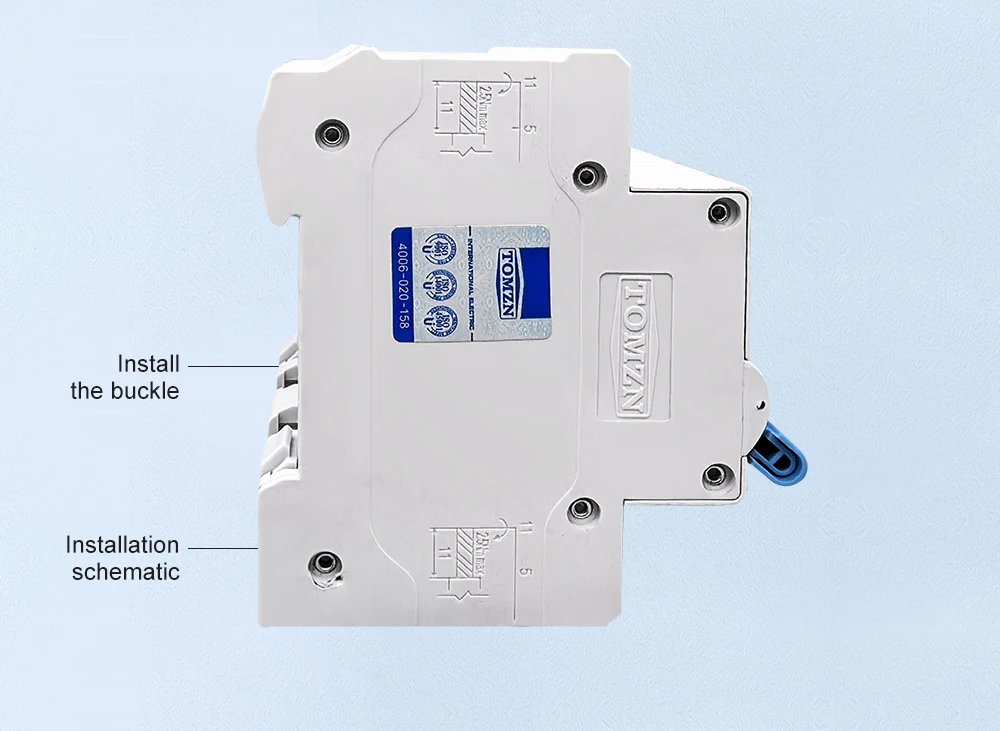

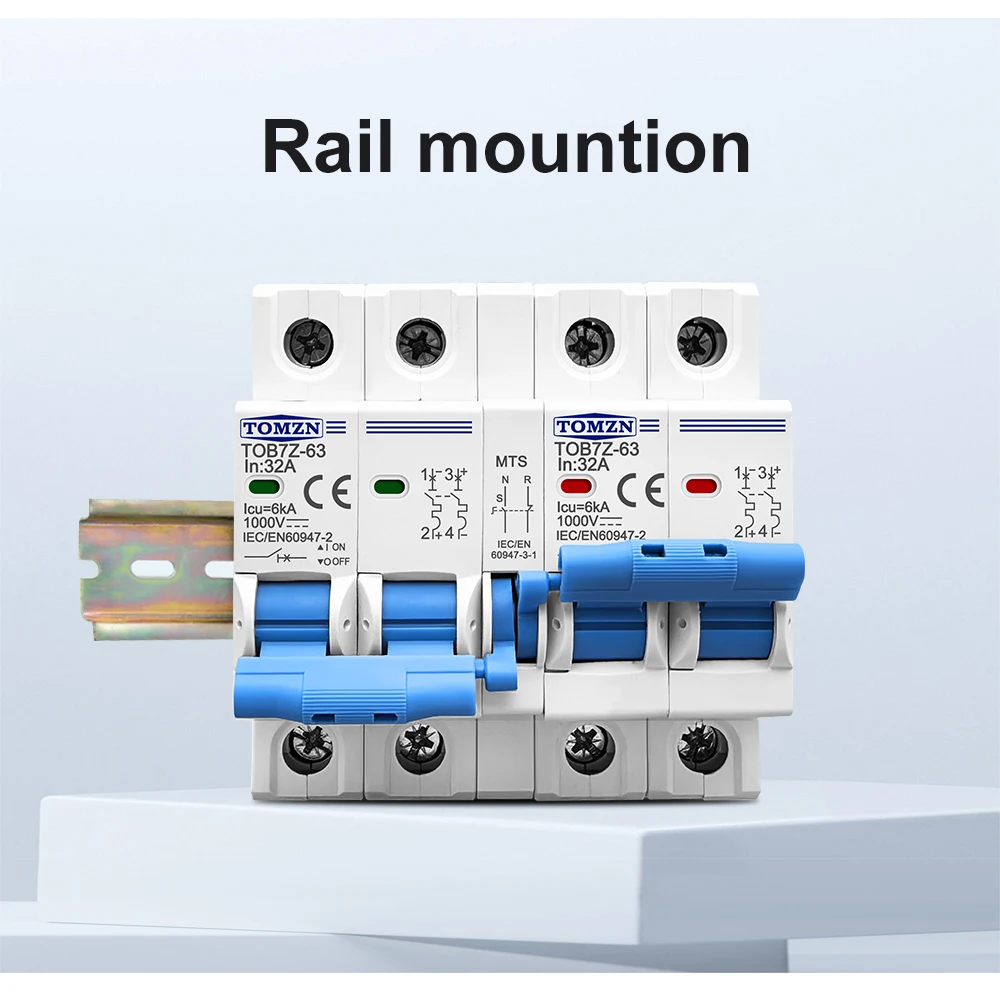

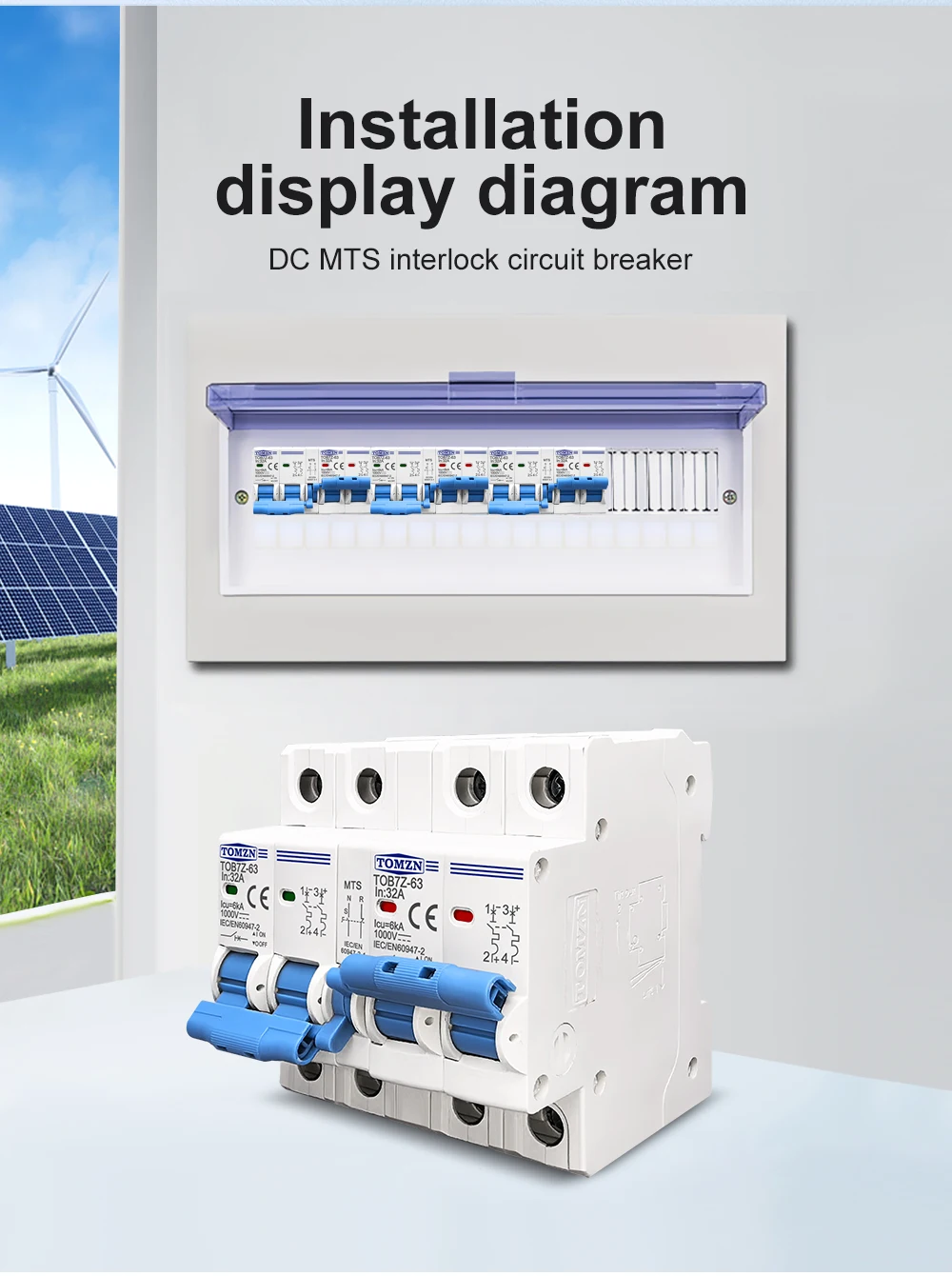

DIN‑Rail Mountable: Compact design fits standard 35 mm DIN rails in PV combiner boxes and DC distribution panels.
₨ 3,999
TOMZN 2P+2P MTS DC Dual Power Circuit Breaker For PV System
The TOMZN 2P+2P DC MTS Dual Power Manual Transfer Switch with Integrated MCB is a manual changeover device specifically designed for DC dual‑power photovoltaic (PV) systems. It supports a maximum DC voltage of 1000 V and comes in a range of current ratings (e.g., 6 A up to 63 A) to match different PV and battery load requirements. The switch enables safe manual transition between two DC power sources (such as solar array and battery bank), while the built‑in MCB provides overload and short‑circuit protection to safeguard system components. Its robust, flame‑retardant design and DIN‑rail‑mountable construction make it suitable for use in solar PV combiner boxes, DC distribution panels, and energy storage systems where reliable manual control and safety are required.

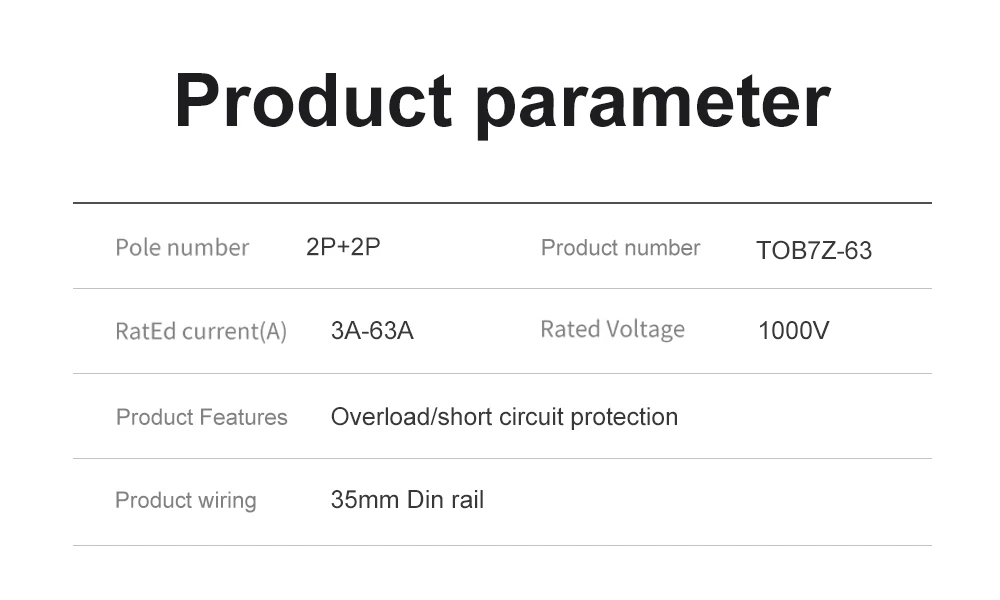

| Specification | Details |
|---|---|
| Model | TOMZN 2P+2P DC MTS (TOB7Z‑63) |
| Type | Dual Power Manual Transfer Switch + MCB for DC systems |
| Pole Configuration | 2P + 2P (two 2‑pole sections for dual DC sources) |
| Rated Max Voltage | DC 1000 V |
| Rated Current Options | 6 A, 10 A, 16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A |
| Breaking Capacity | 10 kA (10 000 A) |
| Operation | Manual transfer between two DC power sources (e.g., solar array ↔ battery bank) |
| Protection Functions | Overload protection and short‑circuit protection (MCB integrated) |
| Mounting | DIN‑rail installation |
| Application | PV solar systems, energy storage/battery backup DC power, telecom DC circuits and industrial DC networks |
| Build | Flame‑retardant & durable materials for DC use |
Notes:

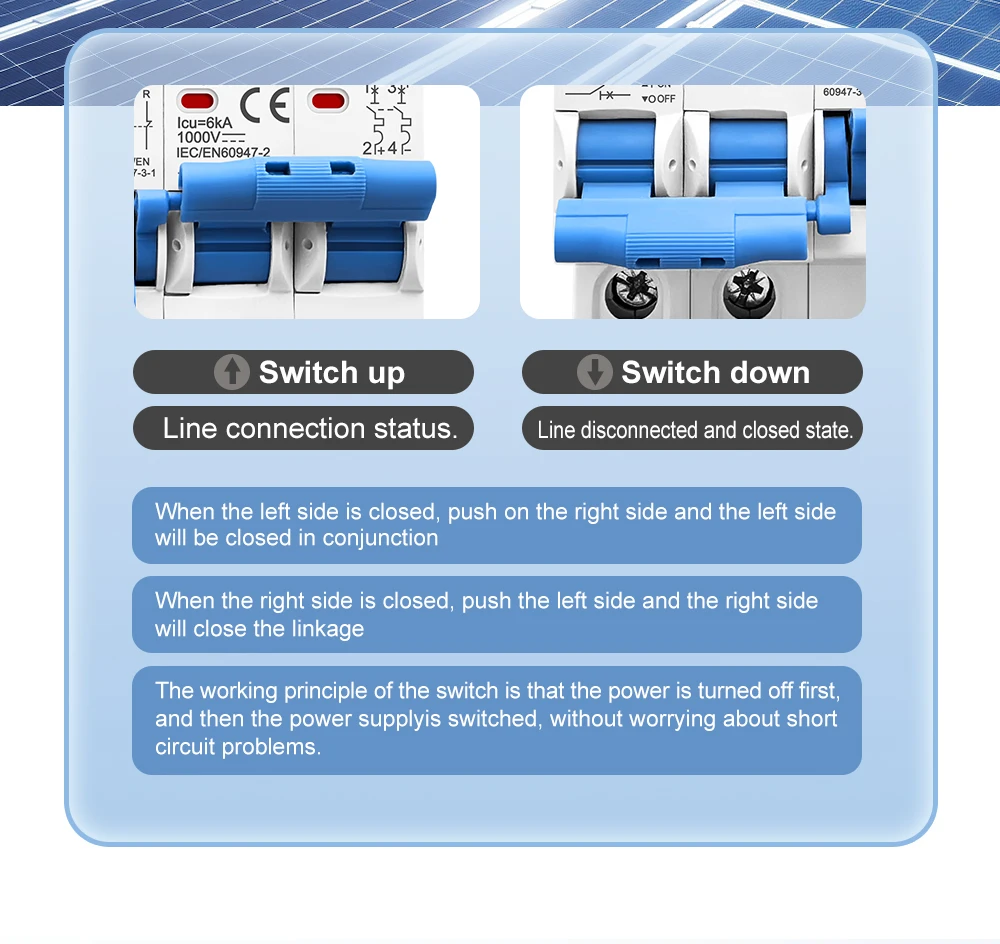

• This manual transfer switch allows safe, intentional switching between two DC power sources, ideal for solar PV setups where you want to change over between array and storage/battery inputs.
• Make sure the chosen rated current (e.g., 63 A) matches your PV string/battery current so it trips correctly under faults.
