TOMZN AC SPD 2P House Surge Protector Low-voltage Arrester Device 20KA~40KA 385V-TOV1-C
TOMZN AC SPD 2P Features
-
2-Pole AC Surge Protection Device – Protects single-phase electrical systems from voltage surges and transient over-voltages.
-
High Surge Current Capacity (20 kA ~ 40 kA) – Can absorb and divert high-energy spikes from lightning strikes or switching surges to safeguard devices.
-
Rated Voltage ~275 V AC (up to 385 V versions) – Designed for typical household and light commercial AC mains.
-
Low Let-Through Voltage (< 1.5 kV) – Limits the voltage that reaches connected equipment during a surge, reducing damage risk.
-
Compact DIN-Rail Mountable – Easy installation in electrical panels or distribution boards.
-
Flame-Retardant Durable Build – Made with robust materials for long-term reliability.
-
Auto-Reset After Surge – Resets itself after handling a surge event for continuous protection.
₨ 2,250 ₨ 2,600

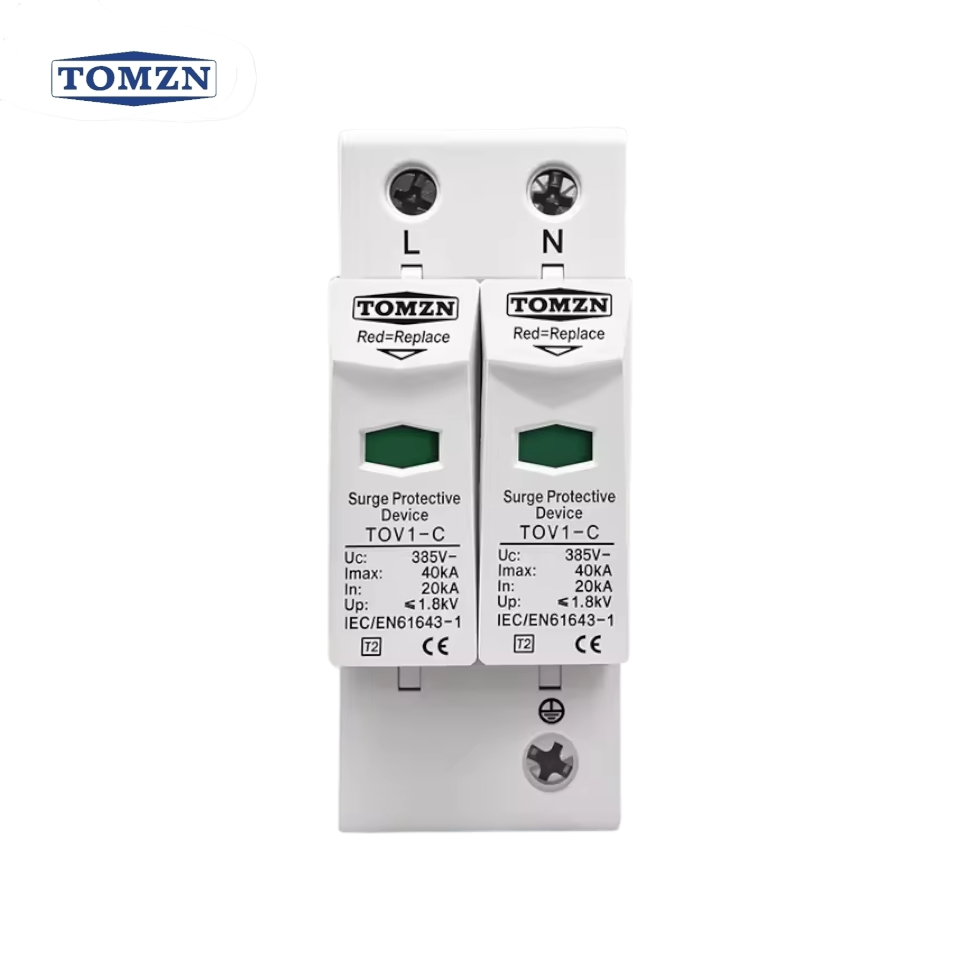

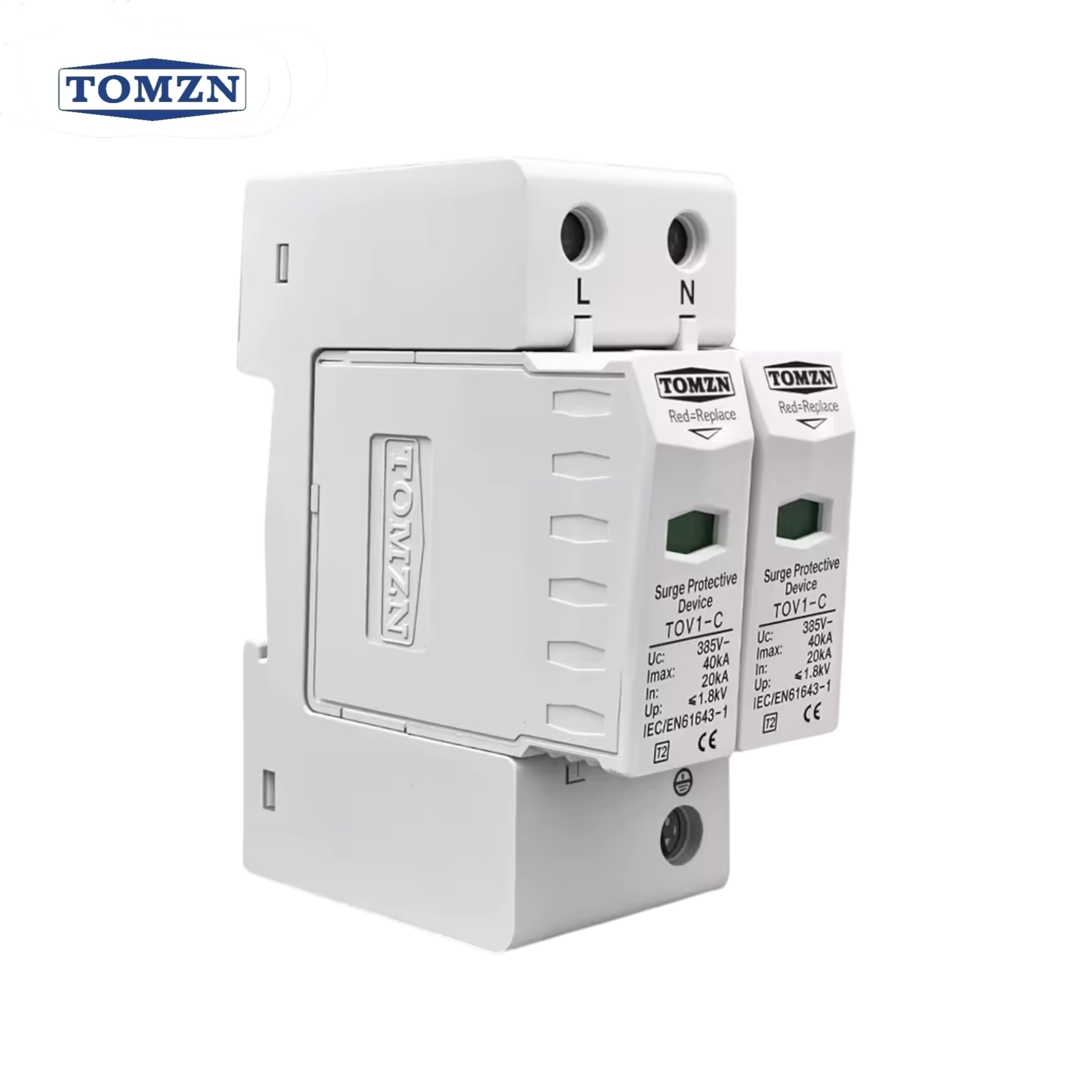

TOMZN AC SPD 2P House Surge Protector Low-voltage Arrester Device 20KA~40KA 385V-TOV1-C

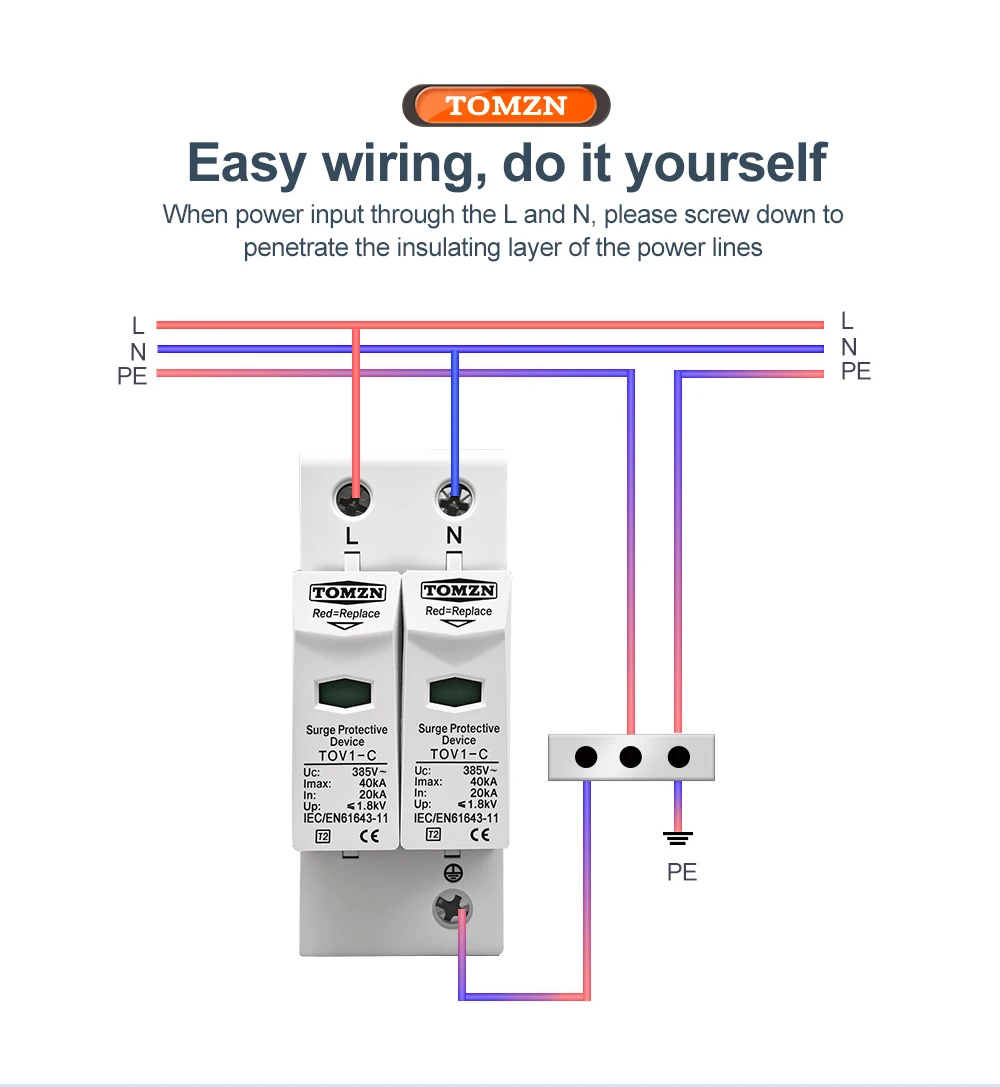

The TOMZN AC SPD 2P House Surge Protector (TOV1-C) is a compact and reliable surge protective device designed to safeguard single-phase electrical systems and connected equipment from sudden voltage surges and transient over-voltages caused by lightning strikes, switching events, or unstable mains power. This 2-pole SPD features a high surge current capacity (20 kA – 40 kA) to absorb and divert dangerous spikes before they reach your appliances, helping prevent damage to sensitive electronics and wiring. It’s built to meet IEC/EN 61643-1 standards, has a low let-through voltage for effective protection, and installs easily on a DIN rail in distribution boards. Ideal for homes, offices, and light commercial setups, the TOV1-C provides dependable surge protection with compact durability and long-term performance.
| Specification | Details |
|---|---|
| Model / Type | TOMZN 2P AC SPD TOV1-C (Surge Protective Device) |
| Poles | 2 P (L-N) — two-pole protection for single-phase AC systems |
| Rated Voltage | 275 V AC (nominal max continuous AC voltage) |
| Frequency | 50/60 Hz |
| Nominal Discharge Current (In) | 20 kA (8/20 µs) typical |
| Maximum Discharge Current (Imax) | 40 kA (8/20 µs) typical |
| Let-Through Voltage (Up) | < 1.5 kV — limits surge voltage reaching protected equipment |

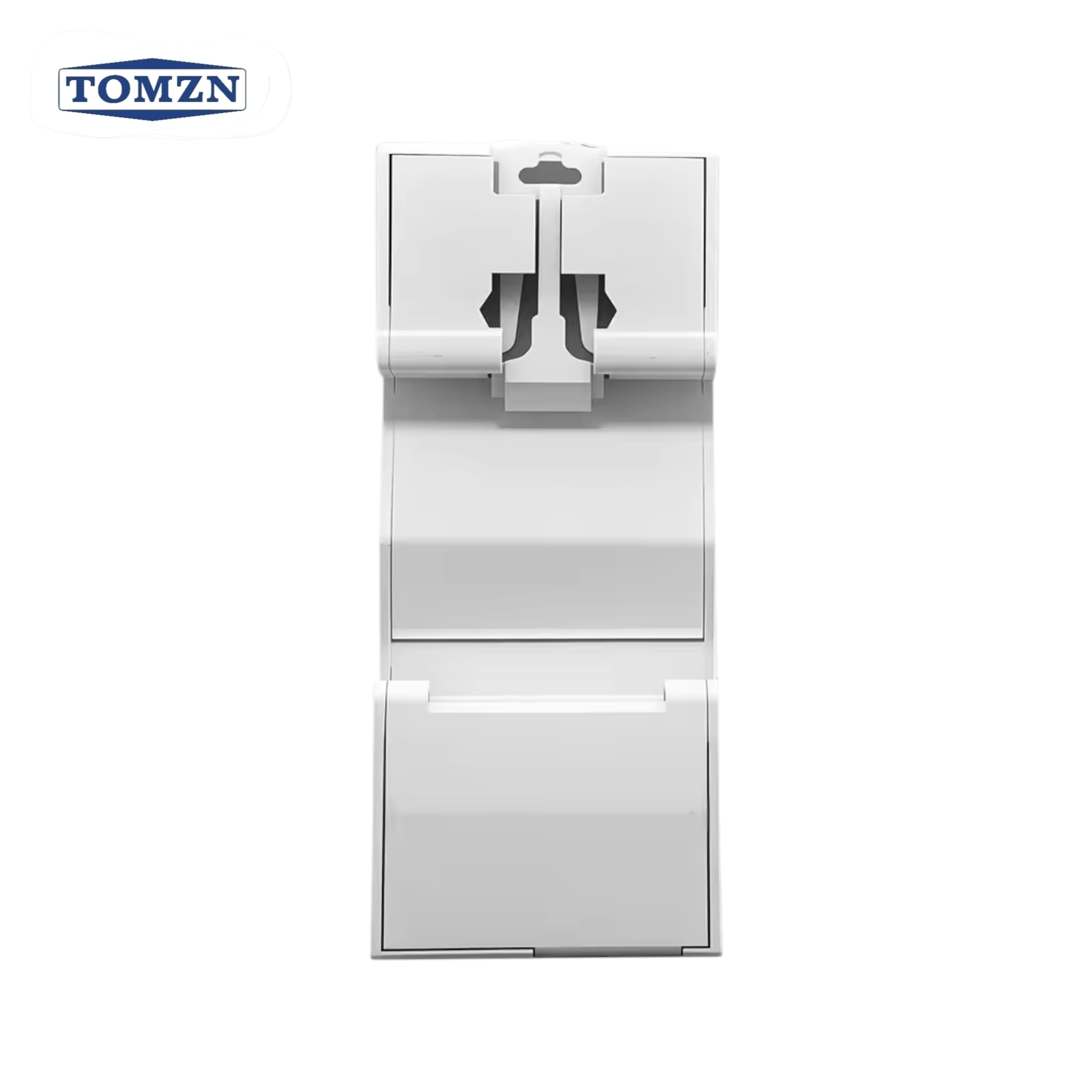

| Mounting | DIN-Rail (35 mm) installation |
| Response Time | ≤ 25 ns — fast surge clamping |
| Protection Standard | IEC/EN 61643-1 (Type 2 surge protection) |
| Connection Type | Screw terminals |

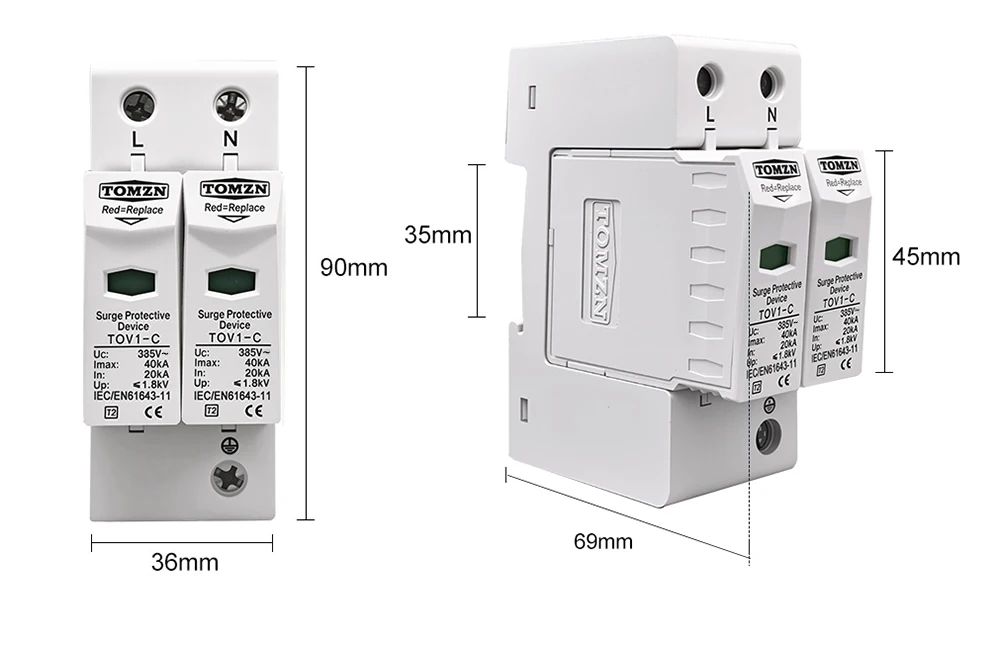

| Dimensions | ~ 90 × 35 × 60 mm |
| Weight | ~ 200 g |
| Application | Protection of household/commercial electrical systems and sensitive electronics from lightning-induced and switching surges |
