TOMZN Automatic Voltage current Protector Socket AC 110V 220V-TOSVA-16
TOMZN Automatic Voltage current Protector Socket Features
-
Over-Voltage Protection – Automatically cuts power when the input voltage exceeds a set safe limit.
-
Under-Voltage Protection – Automatically shuts off power if the voltage falls below the configured threshold.
-
Over-Current Protection – Trips the socket if the current exceeds the adjustable limit (1–16 A).
-
Automatic Recovery – Restores power automatically once voltage/current returns to normal after a fault.
-
Real-Time Voltage & Current Display – Built-in digital display shows live voltage and current readings.
-
Adjustable Calibration – Voltage calibration adjustable within ±9.5 % for more accurate readings.
-
Configurable Protection Values – Users can adjust over/under-voltage and over-current trigger levels and delay times.
-
Factory Reset & Fault Inquiry – Easy reset of settings and ability to check fault history with button presses.
-
Wide Voltage Range Compatibility – Works with 90–300 V AC supply, suitable for both 110 V and 220 V environments.
-
Durable Construction & Long Life – Low power consumption (< 2 W) and long mechanical/electrical life (~100,000 operations).
₨ 2,099

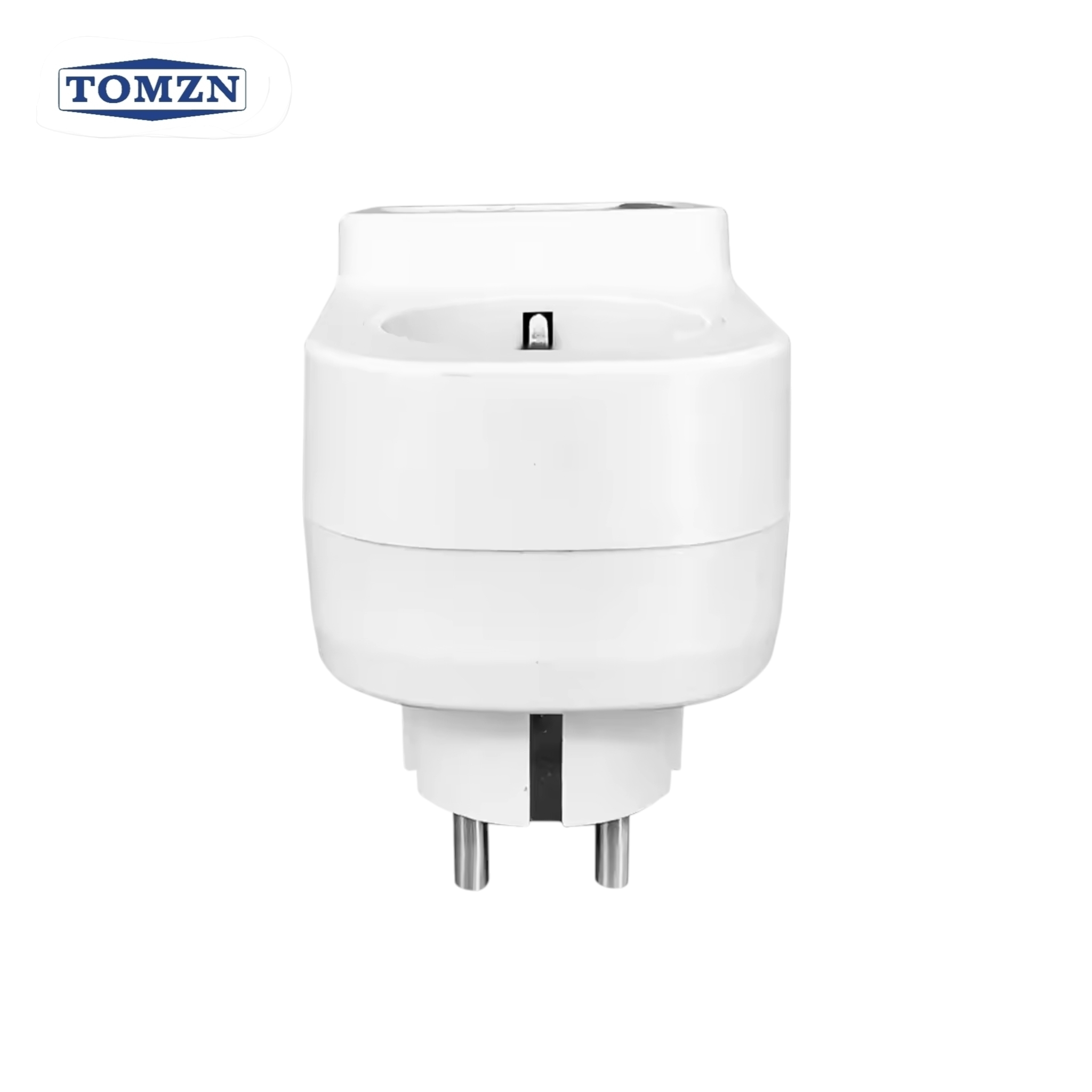

TOMZN Automatic Voltage current Protector Socket AC 110V 220V-TOSVA-16
The TOMZN TOSVA‑16 Automatic Voltage & Current Protector Socket is a plug‑in protection device designed to safeguard electrical appliances from voltage and current abnormalities. It works with a wide AC supply range (90–300 V AC) and lets you set adjustable over‑voltage, under‑voltage and over‑current protection thresholds. When the input goes outside the safe limits, it cuts power and then automatically restores it once conditions return to normal. The unit also features real‑time voltage and current displays, calibration for accurate readings, and buttons for fault inquiry and factory reset. With a 16 A adjustable load capacity and long service life, it’s ideal for protecting household and office equipment from unstable mains power.
| Specification | Details |
|---|---|
| Model Number | TOSVA‑16 |
| Power Supply / Voltage | 90 – 300 VAC, 50/60 Hz |
| Max Loading Current / Power | 1 – 16 A (adjustable) (default 16 A) |
| Over‑Voltage Protection Range | 100 V – 300 V ~ OFF (default ~270 V) |
| Over‑Voltage Recovery Range | 95 V – 295 V (default ~265 V) |
| Over‑Voltage Action Time | 0.1 s – 30 s (default 0.5 s) |
| Over‑Voltage Recovery Delay | 1 s – 500 s (default 30 s) |
| Under‑Voltage Protection Range | 80 V – 210 V ~ OFF (default ~170 V) |
| Under‑Voltage Recovery Range | 85 V – 215 V (default ~175 V) |
| Under‑Voltage Action Time | 0.1 s – 30 s (default 0.5 s) |
| Under‑Voltage Recovery Delay | 1 s – 500 s (default 30 s) |
| Over‑Current Adjustment Range | 1 – 16 A (default 16 A) |
| Over‑Current Action Time | 0.1 s – 30 s (default 0.5 s) |
| Over‑Current Recovery Delay | 1 s – 500 s (default 30 s) |
| Power‑On Delay Time | 1 s – 500 s (default 10 s) |
| Power Consumption | < 2 W |
| Electric / Mechanical Life | ≈ 100,000 cycles |
| Display Functions | Voltage measurement & Current measurement |
| Voltage Calibration | ±9.5 % adjustable |
| Additional Features | Factory reset & fault inquiry buttons |
| Installation | 35 mm DIN‑Rail mount |
