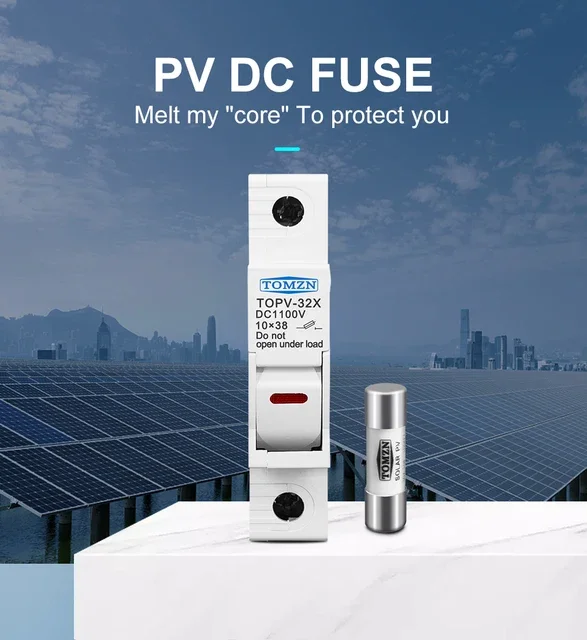

TOMZN Fuse Set-DC 1100V-TOPV-32x
TOMZN Fuse Set-TOPV-32x-Features
- High DC Voltage Rated: Designed for up to 1000 V–1100 V DC, suitable for modern solar PV string protection.
-
1‑Pole Configuration: Single‑pole fuse holder for one DC circuit/string in a PV system.
-
Wide Fuse Compatibility: Works with 10×38 mm PV fuse links rated from around 3 A up to 30 A (varies by model and application).
-

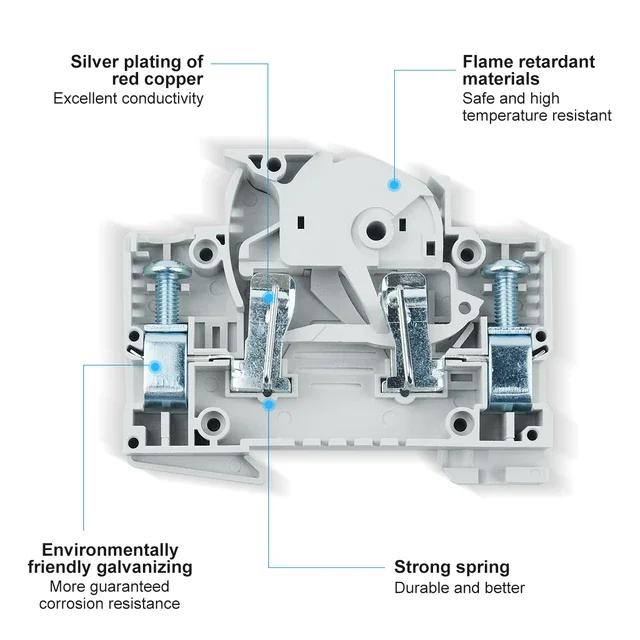

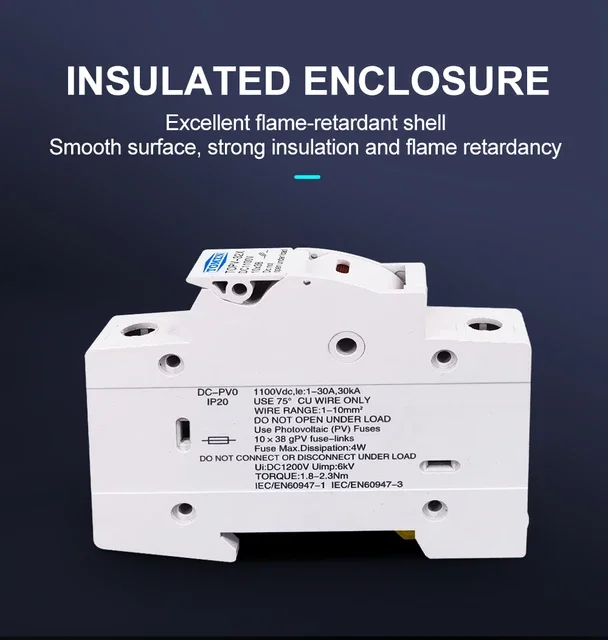

Robust Construction: Made from high‑temperature resistant plastic with good insulation for safer DC operation.
-
DIN‑Rail Mountable: Standard 35 mm DIN rail mounting allows easy installation in PV combiner boxes and DC panels.
-
Essential PV Protection: Acts as a base for fuse links that protect against overcurrent, overloads, and short‑circuit faults in solar strings.
₨ 900 ₨ 999
TOMZN Fuse Set-DC 1100V-TOPV-32x

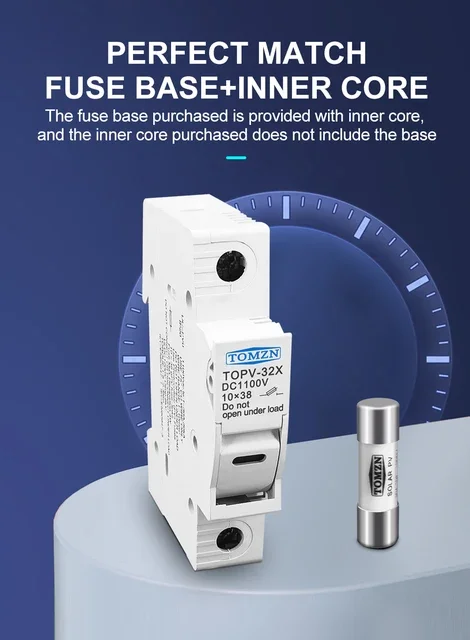

The TOMZN 1P Solar PV Fuse Set is single‑pole DC fuse base designed for photovoltaic (solar) systems with high‑voltage DC applications up to 1000–1100 V DC. It securely holds 10×38 mm PV string fuses rated from about 3 A to 30 A, providing essential overcurrent and short‑circuit protection for individual solar panel strings and DC circuits. Made from high‑temperature resistant, elevated‑insulation plastic and built for easy 35 mm DIN‑rail mounting, this fuse holder offers a compact, safe, and durable solution for integrating fuse protection into solar combiner boxes and DC distribution panels.
| Specification | Details |
|---|---|
| Model / Type | TOMZN 1P Solar PV Fuse Holder (DC) |
| Pole Configuration | 1‑Pole (1P) |
| Rated Voltage | Up to 1000 V – 1100 V DC (high‑voltage PV systems) |
| Fuse Size | 10×38 mm PV fuse link |

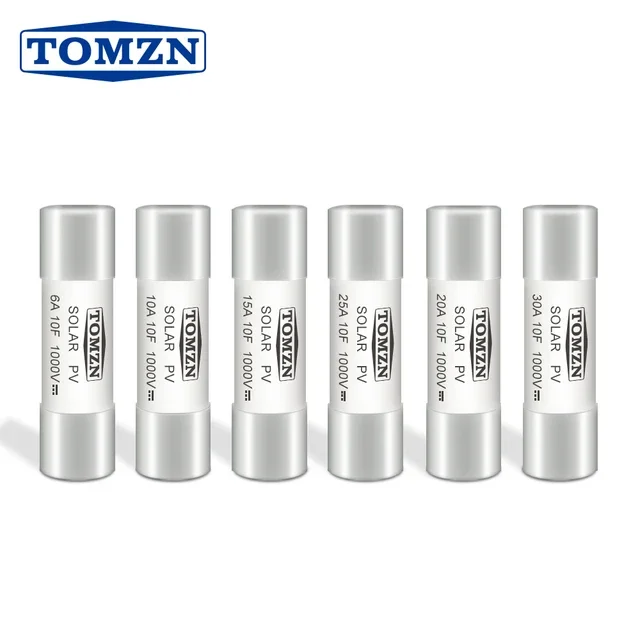

| Compatible Fuse Ratings | Typical: 3 A, 10 A, 15 A, 20 A, 25 A, 30 A |
| Mounting Type | 35 mm DIN‑Rail Mountable |
| Material | High‑temperature resistant plastic |
| Design | Compact modular body (≈ one module width) |
| Applications | Solar photovoltaic (PV) string protection, DC circuits |
| Additional Features | Elevated insulation for insulation and safety |
Notes:

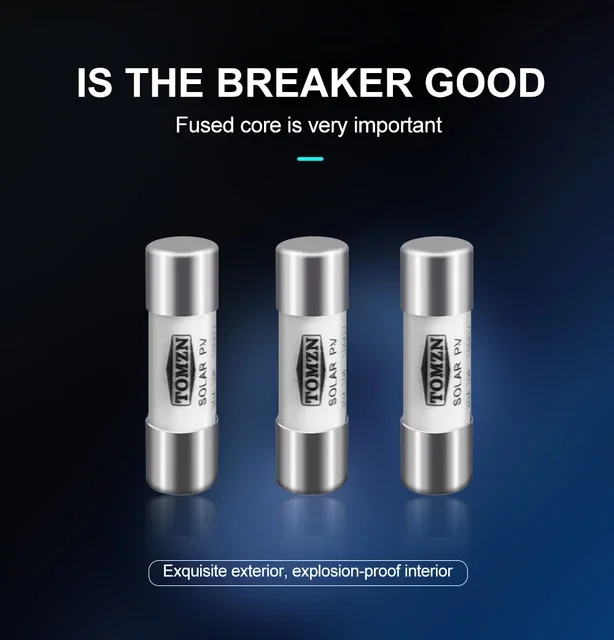

• The holder is designed to accept 10×38 mm photovoltaic fuses, which are standard for string protection in PV systems up to ~1000 V DC.
• It mounts on a 35 mm DIN rail, making installation in PV combiner boxes and DC distribution panels fast and secure.
