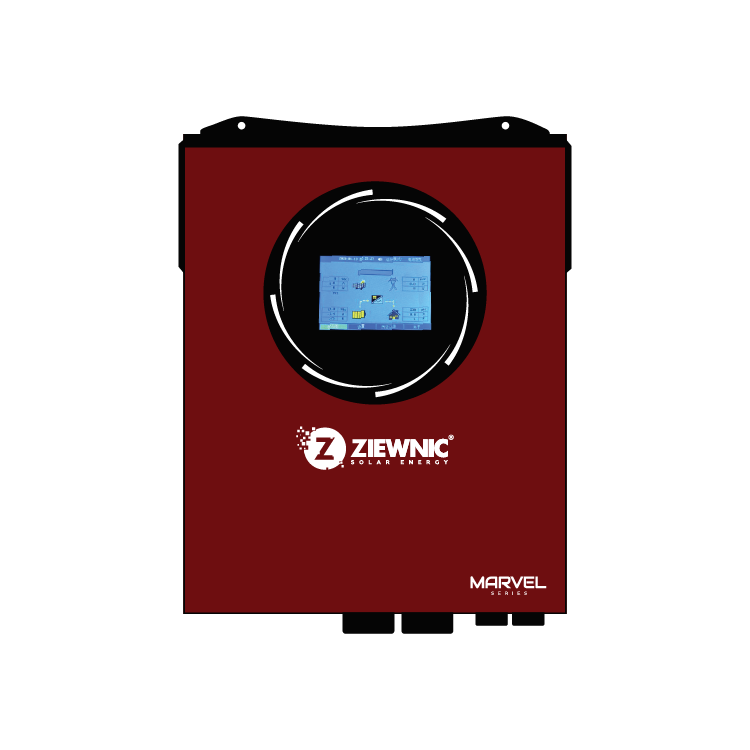

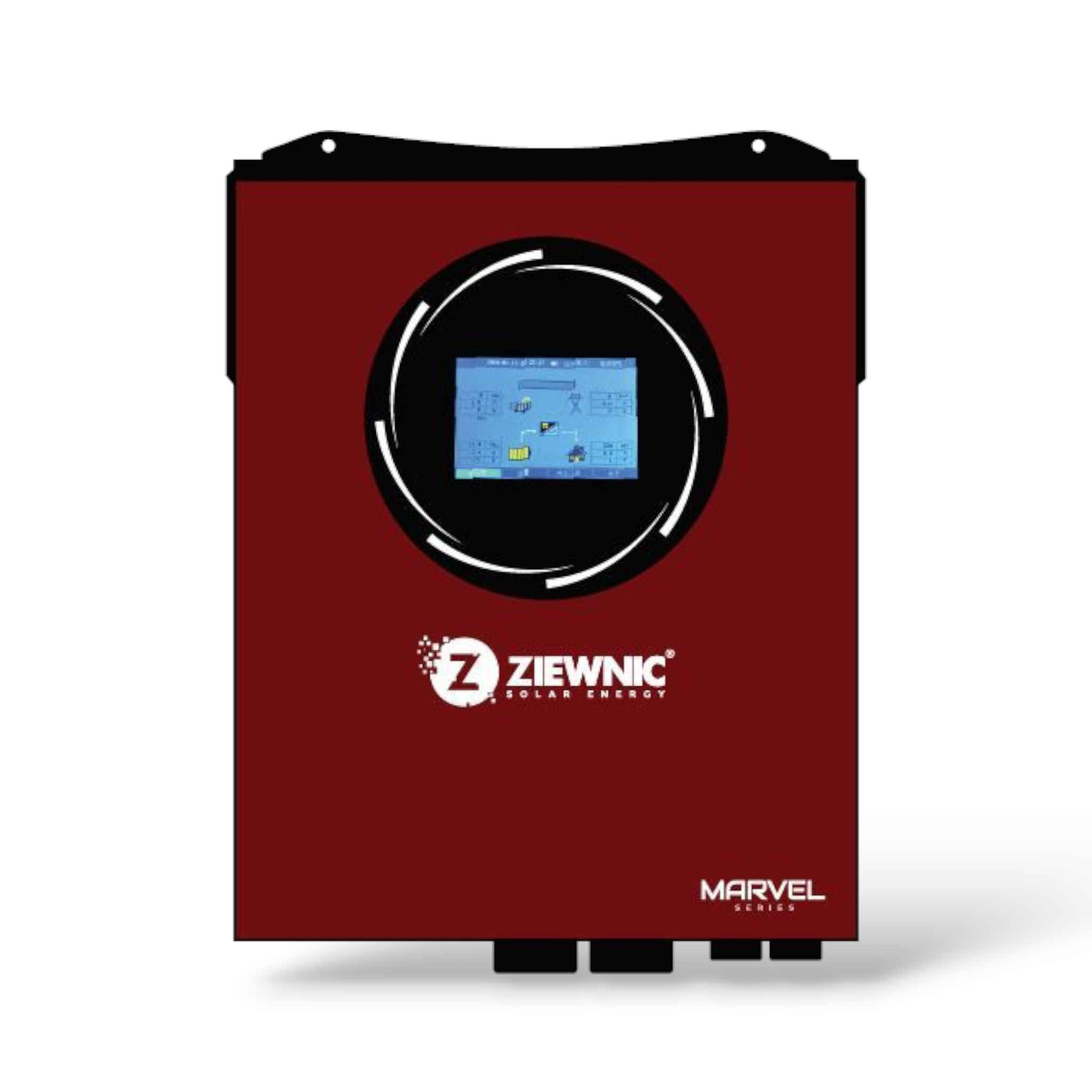

Ziewnic Marvel (8.5KW) PV10000 5G European On-Grid Solar Inverter
,

Ziewnic Marvel (8.5KW) PV10000 5G European On-Grid Solar Inverter

Ziewnic Marvel (8.5KW) On-Grid Inverter Features

  • Single-Phase with Scalable Three-Phase Support
    A pioneering design in Pakistan: operates as a single-phase inverter, yet supports seamless three-phase setups when paralleled.

  • 100% Pure Sine Wave Output & PF = 1.0
    Delivers clean, stable AC power with perfect power factor, ideal for sensitive electronics.

  • Touch-Screen Control Module
    A user-friendly interface paired with multiple communication options (RS232, RS485, CAN-bus).

  • Hybrid Operation & Configurable Load Priority
    Allows simultaneous solar PV and utility (grid) feeding, with programmable load priority settings.

  • Dual 10 kW MPPTs with Wide Input Range
    Equipped with two powerful MPPT trackers (120–450 V DC) to maximize solar energy capture.

  • Scalable System Design
    Modular scalability: supports up to 9 units in parallel for large or three-phase installations.

  • Zero Transfer Time Switching
    Instantly switches power sources with no interruption or flicker.

  • Battery-Agnostic Hybrid Capability
    Operates with or without batteries; supports Li-ion, LiFePO₄, lead-acid chemistries, complete with battery equalization.

  • Peak-Valley Charge Optimization
    Enables cost-saving charge scheduling by leveraging off-peak tariff periods.

  • Advanced Data & Fault Logging
    Records energy generation, load usage, historical data, and fault codes for effective diagnostics.

  • Zero Export with 100% Reverse Grid Feeding
    Prevents exporting to the grid when restricted, while still feeding back during permissible periods.

  • European Design, Taiwanese Manufacturing
    Combines European engineering with Taiwanese production quality for durability and performance.

  • Built-In Safety & Maintenance Convenience
    Features overload and short-circuit protection, conformal-coated PCB for dust/moisture shielding, and tool-free fan replacement for easy upkeep.

  • Optional Wi-Fi for Mobile Monitoring
    Provides Android/iOS app access for monitoring, firmware updates, and configuration.

₨ 0

Ziewnic Marvel (8.5KW) PV10000 5G European On-Grid Solar Inverter

The Ziewnic Marvel (8.5KW) PV10000 5G European On-Grid Solar Inverter is a state-of-the-art energy solution designed for efficiency, reliability, and intelligent power management. Engineered with European technology and built with Taiwanese precision, it combines robust performance with modern features to meet the demands of residential, commercial, and industrial users.

Equipped with dual 10kW MPPT trackers, it maximizes solar energy harvest even under challenging conditions, while its pure sine wave output with PF=1.0 ensures stable and clean power delivery. The inverter supports both on-grid and hybrid functionality, operating seamlessly with or without batteries, and allows integration with multiple chemistries including lithium-ion and lead-acid.

A touchscreen control interface with multi-communication support (RS232/RS485/CAN-bus) makes monitoring and control simple, while Wi-Fi connectivity offers mobile app integration for real-time performance insights. The system is highly scalable, supporting parallel operation of up to 9 units, enabling both single-phase and three-phase configurations.

Additional intelligent features such as zero transfer time switching, peak-valley charge scheduling, reverse grid feeding, load prioritization, and comprehensive energy/fault logging make the Ziewnic Marvel a truly smart inverter. Designed with safety in mind, it includes overload protection, short-circuit protection, conformal-coated PCBs for durability, and tool-free maintenance for long-term reliability.

With its blend of advanced engineering and user-focused design, the Ziewnic Marvel PV10000 5G is a future-ready solar inverter that delivers maximum efficiency, flexibility, and peace of mind for modern solar energy systems.

Categories: , Tags: , , , , , , , , , , , , , , ,
SPECIFICATION
Max. PV Input Power 10000W
Rated AC Output Power 8500W
GRID TIE OPERATION
– –
PV INPUT ( DC )
Nominal DC Volt/Max DC Voltage 360VDC/450VDC
Start-up Start-up Voltage/initial Feeding VoltageVoltage/initial Feeding Voltage 120VDC
MPPT Voltage Range 120-450VDC
Np. of MPPT Tracker/Max Input Current 2/18A (5000W * 2)
Max. DC Voltage 450VADC
MPPT Voltage Range 120-450VDC
No. of MPPT Tracker/Max. Input Current 2/18A (5000W * 2)
GRID OUTPUT ( AC )
Nominal Output Volt 220 Vac/230Vac/240Vac, Single Phase
Output Voltage Range 184V-256Vac or 195-253V (Selectable)
Nominal Output Current 34.8A
Power Factor >0.9
EFFICIENCY
Max. Conversion Efficiency (DC/AC) 98%
OFF-GRID OPERATION
– –
AC INPUT (AC)
AC Start-up Voltage/Auto Restart Volt. 120Vac-140Vac/180Vac
Acceptable Input Voltage Range 90-280Vac or 170-280Vac
Max. AC Input Current 63A
GRID TIE MODE
Nominal Output Volt 220Vac/230Vac/240Vac, Single Phase
Feed-in Voltage Range 184V-256Vac
Max Efficiency DC/AC >95%
BATTERY MODE OUTPUT ( AC )
Nominal Output Volt 220Vac/230Vac/240Vac
Waveform Pure Sine Wave
Efficiency (DC to AC) 93%
HYBRID OPERATION
– –
PV INPUT (DC) HYBRID
Nominal DC Volt/Max DC Voltage 360VDC/450VDC
Start-up Voltage Initial Feeding Voltage 120VDC
MPPT Voltage Range 120-450VDC
No. of MPPT Tracker/Max. Input Current 2/18A (5000W * 2)
GRID OUTPUT ( AC ) HYBRID
Nominal Output Volt 220Vac/230Vac/240Vac, Single Phase
Output Voltage Range 184V-265Vac or 195-253V (Selectable)
Nominal Output Current 38.6A
AC INPUT (AC) HYBRID
AC Start-up Volateg/Auto Restart Volt. 120Vac-140Vac/180Vac
Acceptable Input Voltage Range 90-280Vac or 170-280Vac
Max. AC Input Current 63A
BATTERY MODE OUTPUT ( AC ) HYBRID
Nominal Output Volt 220Vac/230Vac/240Vac
Waveform Pure Sine Wave
Efficiency (DC to AC) 93%
BATTERY & CHARGER
Battery Type Supported –
Nominal Battery Voltage 48VDC
Max Solar Charge Current 120A
Max AC Charge Current 120A
Max Total Charge Current 120A
GENERAL
– –
PHYSICAL
Product Dimension D X W X H (mm) 530x415x149
Product Net Weight (kgs) 19.4
Product Gross Weight (kgs) 21.6
Packing Dimension D x W x H (mm) 690 x 550 x 242mm. 1PC/CTN
Parrallel Function Optional Yes Optional, Max 6Pcs
Communication IInterface RS232, USB, Wi-Fi, Touch LCD
ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-Condensing)
Operartion Temperature –
