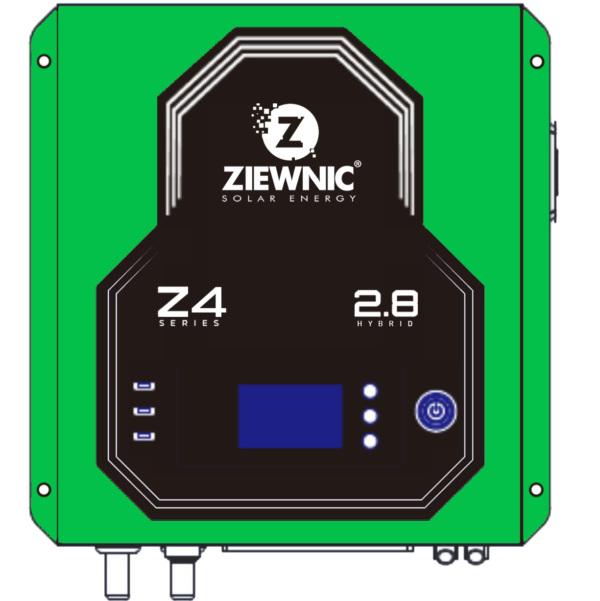

Ziewnic 2.8 (KVA) Solar Hybrid Inverter


Ziewnic 2.8 (KVA) Hybrid Inverter Features

  • Simulated Sine Wave Output (90%)
    Ensures consistent and stable power delivery, suitable for most electronic devices.
  • Built-in 60A Solar Charge Controller
    Efficiently manages solar energy for optimal charging and power utilization.
  • Battery Equalization
    Prolongs battery life by ensuring balanced charging across battery cells.
  • Hybrid Settings with 3-Button Control
    Simplifies operation and customization for a seamless user experience.
  • Boosted Buck Charging with AVR (Automatic Voltage Regulation)
    Operates efficiently in a voltage range of 95 to 285 volts, stabilizing power input.
  • Reverse Polarity Protection
    Safeguards the system against incorrect battery connections.
  • Automatic Line-to-Battery Switch Over
    Enables uninterrupted power supply by transitioning seamlessly between AC and battery power.
  • Selectable Input Voltage Ranges
    Offers flexibility to adapt to diverse power requirements.
  • Flexible Installation Options
    Features rack and wall-mounted designs to accommodate different spaces and setups.
  • Overload Protection
    Protects the system from damage due to excessive load conditions.
  • Auto Restart During AC Recovery
    Automatically resumes operation when AC power is restored.
  • Multi-Function LED/LCD Indicators and Buzzer Alarms
    Provides real-time monitoring and alerts for convenient system management.
  • High-Efficiency DC-to-AC Conversion
    Minimizes energy loss, maximizing power output efficiency.
  • Intelligent 4-Stage Charger
    Enhances battery performance and longevity by preventing overcharge and undercharge.
  • Comprehensive Protection Features
    Includes safeguards against low battery, overload, over-temperature, and short circuits for reliable and safe operation.
  • Conformal Coating
    Protects internal components from dust and humidity, ensuring longevity in challenging environments.
  • Cost-Effective Alternative to Generators
    Reduces energy costs while offering dependable power supply for various needs.

 64,000

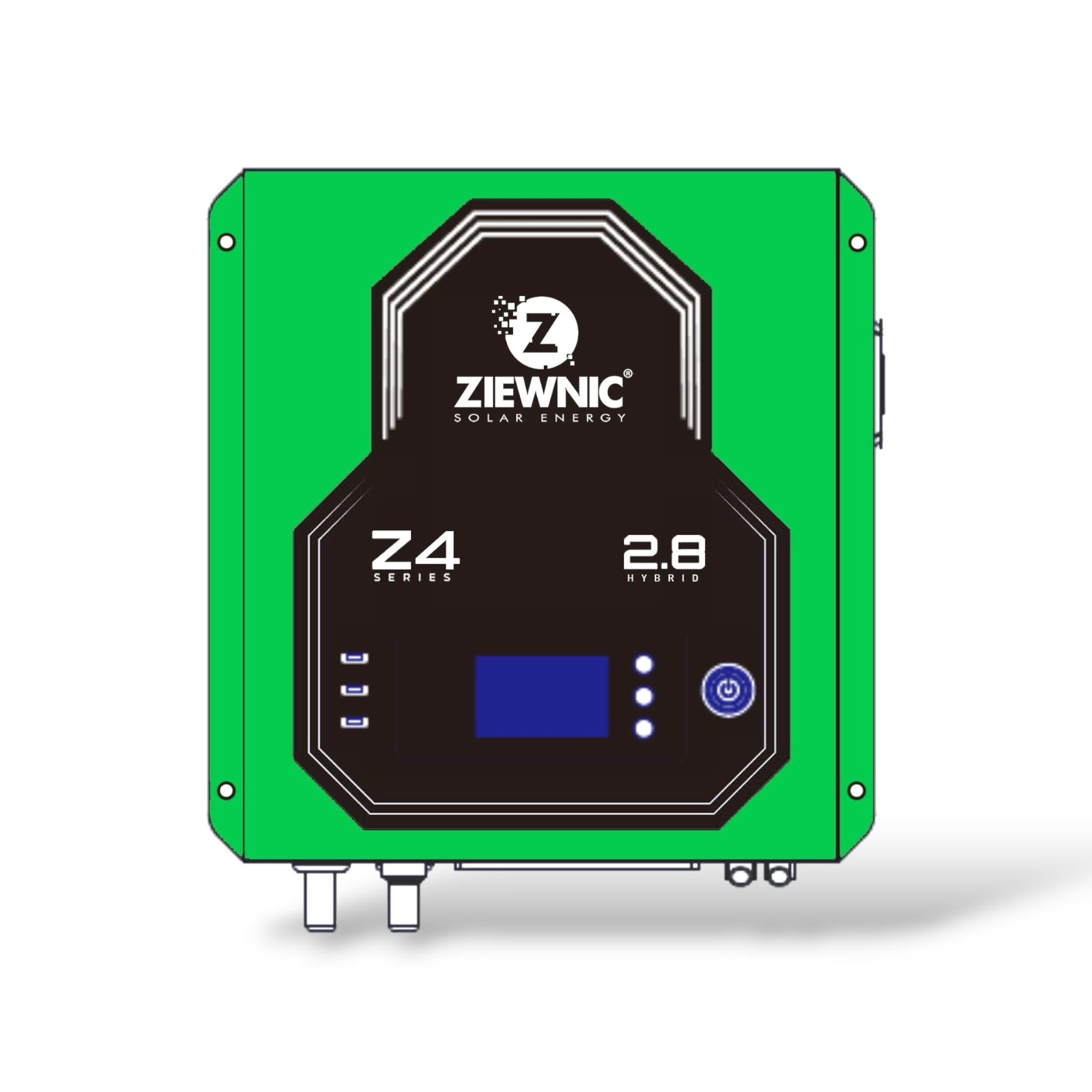

Ziewnic 2.8 (KVA) Solar Hybrid Inverter

The Ziewnic 2.8 KVA Solar Hybrid Inverter is a versatile and cost-effective solution for medium-scale energy needs, blending reliable performance with advanced protection and intelligent charging. With features designed for durability, safety, and efficiency, this hybrid inverter ensures a consistent power supply and smooth energy management, making it an ideal choice for residential and commercial applications.

SPECIFICATION
Rated Power 2800VA / 1820W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) : 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode) 230VAC+/-5%
Overload (Line mode) Load > 110% +/- 15% Alarm 5 mins then fault if user decrease the load <100% rating, the overload alarm can release. Load >130% +/- 15% fault immediately
Surge Power
Efficiency(Peak) 90% ~ 93%
Transfer Time 10 ms (for Personal Computers) : 20 ms (for Home Appliances)
Wave form Simulated Sine Wave
BATTERY
Battery Voltage 13.5 VDC
Floating Charge Voltage 24 VDC
Overcharge Protection 31 VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type Semi MPPT
Maximum PV Array Open Circuit Voltage 55VDC
Maximum PV Array Power 1500W
MPPT Range @ Operating Voltage 30-55VDC
Maximum Solar Charge Current 60A
Maximum AC Charge Current 20A
Maximum Charge Current 80A
PHYSICAL
Dimension.D*W*H(mm)
Net Weight (kgs)
Communication Interface
OPERATING ENVIRONMNET
Humidity 5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature -10°C to 50°C
Storage Temperaturea -15°C to 50°C
