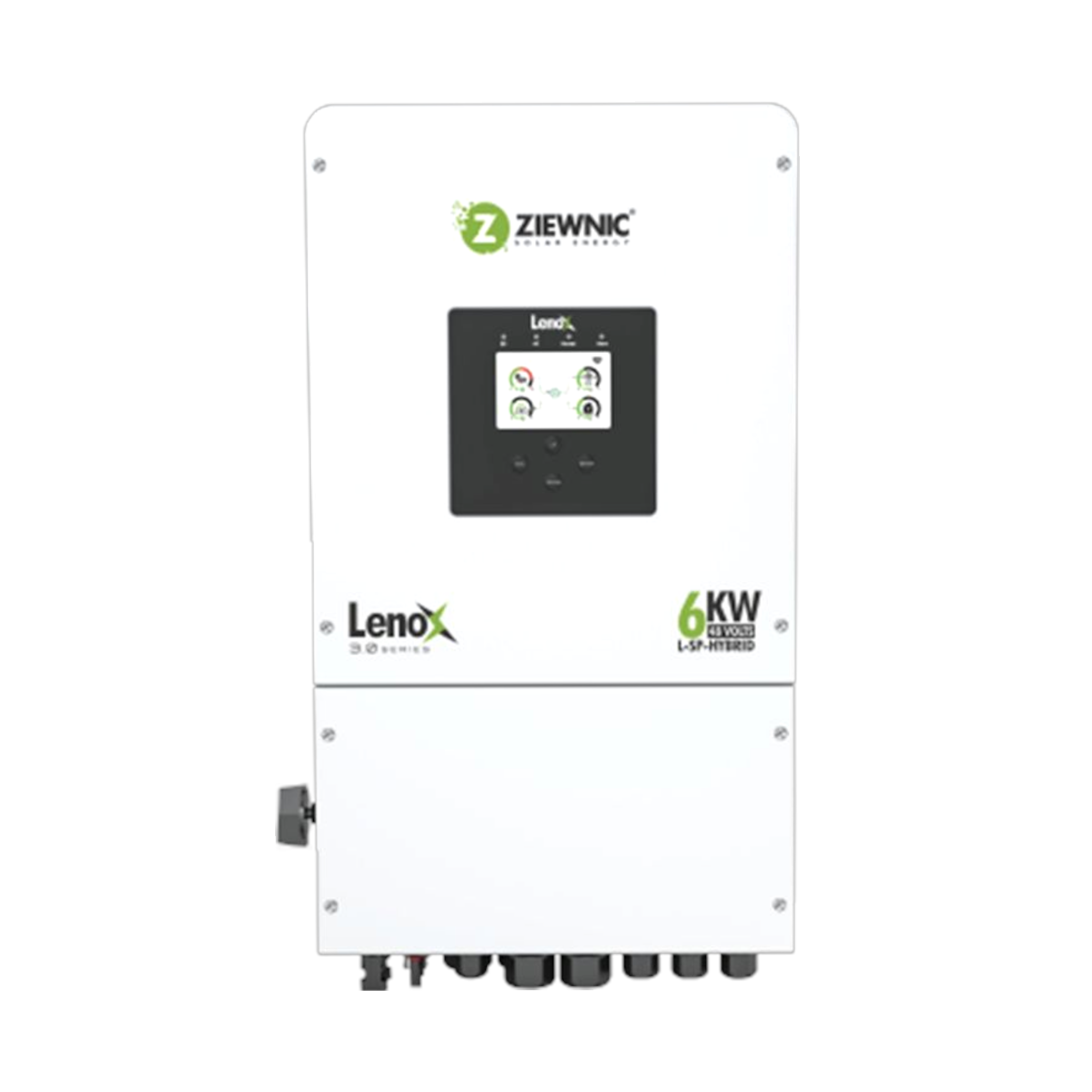

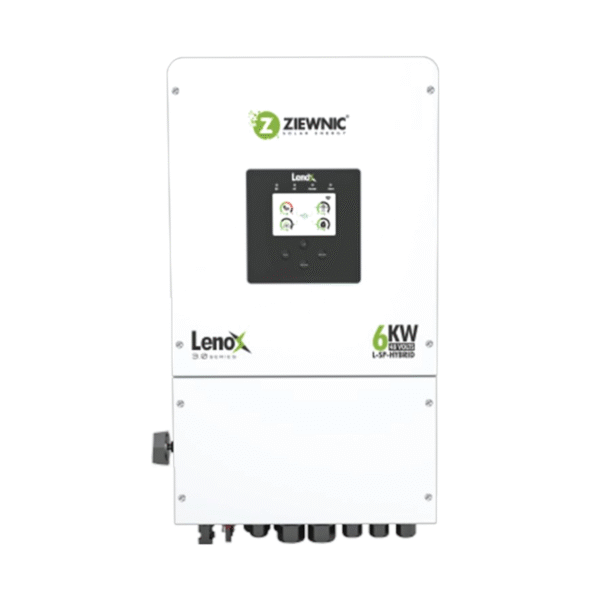

Ziewnic Lenox 6KW (PV8000) Hybrid ON/OFF Grid 48V
,

Ziewnic Lenox 6KW (PV8000) Hybrid ON/OFF Grid 48V

Ziewnic Lenox 6KW (PV8000) Hybrid 48V Inverter Features

  • 100 % Pure Sine Wave Output for clean, reliable AC power.

  • Built-in 48 V MPPT Solar Charge Controllers: Dual inputs (20 A + 20 A), MPPT range 125–430 V DC, supports up to 8 kW PV.

  • Hybrid Operation: Works with or without battery; on-grid, off-grid, and hybrid modes supported.

  • Battery Compatibility: Supports LiFePO₄, lead-acid, tubular batteries (40–63 V), with max charge/discharge current of 135 A.

  • UPS Capability: 6 kW rated off-grid output, with 2× surge capacity (12 kW for 10 s), fast transfer time <10 ms.

  • Smart Display & Indicators: Color touch LCD and external LED indicators for quick status monitoring.

  • Flexible Charging Schedules: Programmable in six time periods, and supports diesel generator charging.

  • AC-Coupling Capability: Easily retrofits to existing solar systems via AC coupling.

  • Robust IP65 Enclosure: Weather-resistant design with conformal coating, smart cooling, and replaceable external fans.

  • Comprehensive Protections: Anti-islanding, insulation/residual current monitoring, arc-fault (optional), over-current/voltage, and temperature protection.

  • Parallel Operation Supported: Multiple units can be paralleled for larger installations.

  • Ultra-High Efficiency: Peak efficiency ~99%, self-consumption <5 W.

  • Wide Operation Range: Temperature −40 °C to +60 °C (derates above 45 °C); relative humidity 5–95% non-condensing.

  • Versatile Communication Ports: Standard RS‑232, CAN, RS‑485; optional Wi‑Fi and CT sensor available.

₨ 0

Ziewnic 6KW (PV8000) Hybrid ON/OFF Grid 48V With Energy Storage

The Ziewnic 6KW PV8000 is a powerful and intelligent hybrid solar inverter designed for both on-grid and off-grid applications. Built to deliver uninterrupted clean energy, it integrates advanced solar, grid, and battery management in one unit, making it ideal for homes, businesses, and remote installations across Pakistan.

This 5th-generation hybrid inverter supports a 48V battery system and is equipped with a high-efficiency MPPT solar charge controller capable of handling up to 8KW PV input. It operates seamlessly with or without batteries and features dual AC outputs to prioritize smart load management between essential and non-essential appliances.

With a wide MPPT voltage range (125V–430V DC) and surge capacity up to 12KW, the PV8000 ensures maximum energy harvesting and high-performance backup during outages. Its integrated Wi-Fi, USB, RS-485, and CAN communication ports offer full remote monitoring and diagnostics through mobile apps or web portals.

The inverter’s pure sine wave output, fast transfer time (<10ms), programmable charging modes, and support for Li-ion, LiFePO₄, and lead-acid batteries make it an all-in-one, future-proof solution. Additionally, the rugged IP65-rated enclosure, anti-dust design, and conformal coating allow it to perform reliably in harsh environmental conditions.

Whether you’re connecting to the grid, going fully off-grid, or using solar with energy storage, the Ziewnic PV8000 6KW Hybrid Inverter ensures maximum energy independence, efficiency, and peace of mind — all backed by Ziewnic’s trusted warranty and support.

Categories: , Tags: , , , , , , , , , , , , , , , , , , ,
SPECIFICATION
Rated Power 6000W
PV INPUT
Max.power(KW) 8000
Max.DC voltage(V) 500
MPPT voltage range(V) 125 – 430
Max.input current(A) 20 + 20
Max.input strings number 1 + 1
AC OUTPUT (GRID-TIED)
Grid voltage/range(V) 220/230V (Single Phase)
Frequency(Hz) 50/60
PF 0.8lagging-0.8leading
THDi <3%
AC output topology L+N+PE
BATTERY
Battery Voltage Range (V) 40~63
Max.charging voltage(V) 63
Max.charge/discharge current(A) 135/135
Battery Type Lithium / Lead-acid / Tubuler
UPS OUTPUT
Rated power (kw) 6
Peak Power (Off Grid) 2 Times of rated power 10Se
Rated output current(A) 27.2
Rated frequency (Hz) 50/60
Transfer Time(ms) <10
THDu <10%
Overload capacity 5s > 110%load; 10s >≥101%~110% load
PROTECTION & FEATURE
Anti-island protection Yes
Insulation monitoring Yes
Residual current monitoring Yes
Arc fault protection Yes (Optional)
Parallel function Yes, Multiple
Other protection AC Over-Current, AC Over-Voltage, Over Temperature Protection
GENERAL SPECIFICATIONS
Efficiency (peak) 99%
Degree of protection IP65
Operation temperature range (°C) -40°C~60°C, >45°C derating
Cooling Smart Cooling
Relative humidity 5~95%(non-condensing)
Altitude (>2000m Derating)
Dimensions W x D x H(mm) 330*580*239
EMC/Safety Regulation IEC/EN 62109-1, IEC/EN62109-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Isolation transformer No
Self-consumption(W) <5
DISPLAY AND COMMUNICATION
Display Touch screen
Interface Standard:RS232,CAN&RS485; Optional:WiFi,CT
Safety standard EN/IEC62109-1,EN/IEC62109-2
